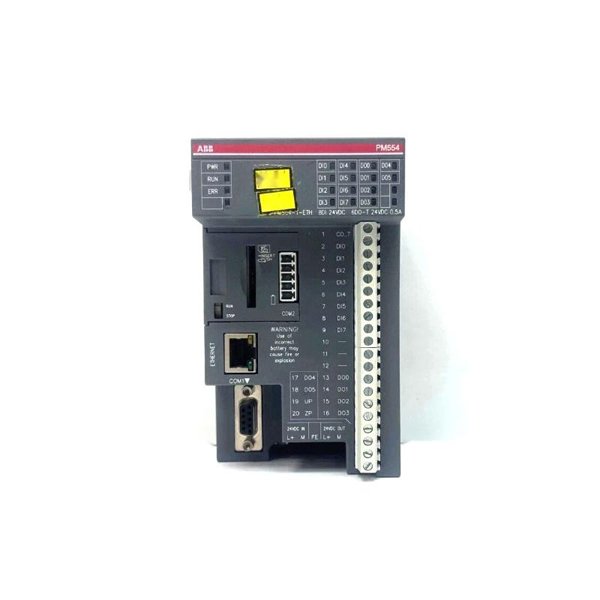

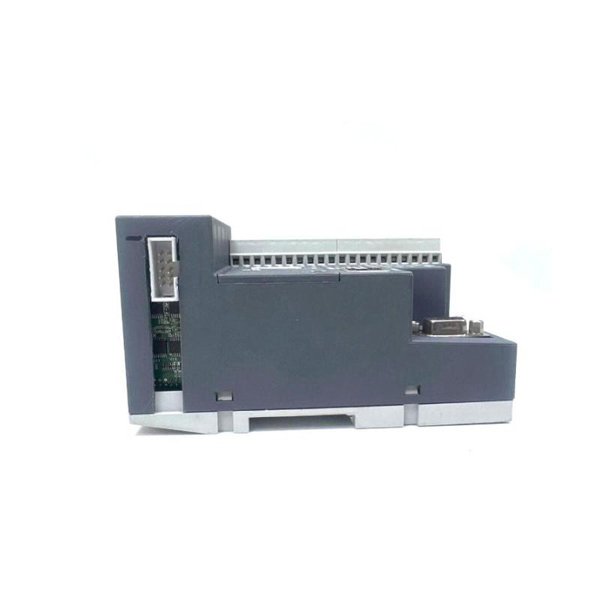

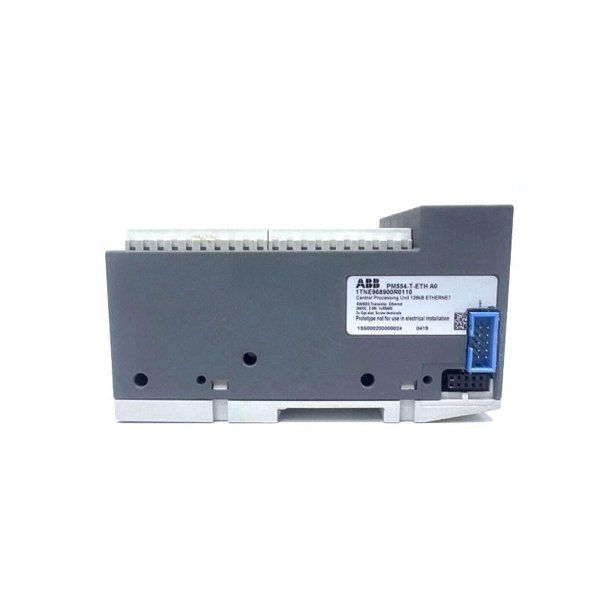

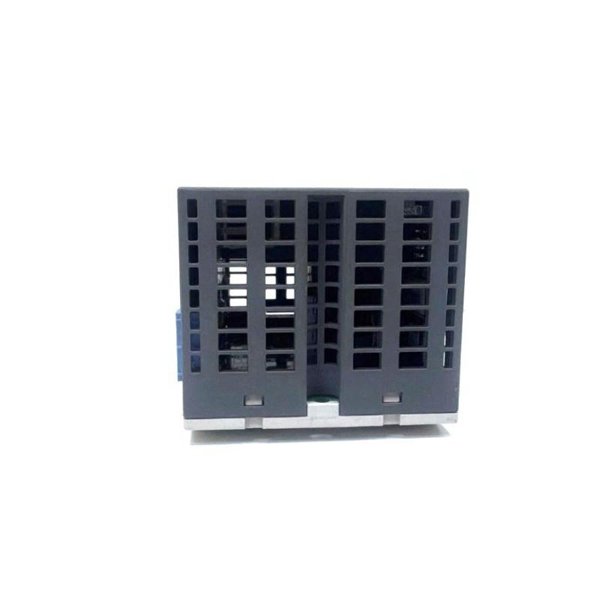

ABB PM554-T-ETH 1TNE968900R0110 AC500 Processor Module
Manufacturer:ABB
Product Number:PM554-T-ETH 1TNE968900R0110
Product Type:AC500 Processor Module
Origin:Sweden (SE)
Dimensions:74 × 135 × 82 mm
Weight:0.281 kg
Views:32
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB PM554-T-ETH is a compact processor module from the AC500-eCo series, designed for reliable and cost-effective automation tasks. It integrates essential features including onboard I/Os, Ethernet communication, and a Freescale ARM 32-bit processor, suitable for small to medium-sized control applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Code | PM554-T-ETH 1TNE968900R0110 |
| Memory | 128 kB Flash EPROM |
| I/O Configuration | 8 Digital Inputs, 6 Transistor Outputs |
| Communication Ports | COM1 (RS-485), Ethernet |
| Supply Voltage | 24 V DC |
| Max. Power Consumption | 3.3 W |
| Current Consumption (typical) | 70 mA |
| Processor | Freescale ARM 32-bit, 50 MHz |
| Programming Languages | IL, FBD, LD, ST, SFC, CFC |
| Data Retention | Flash buffered |
| LED Indicators | Power, Run, Error, I/O Status |
| Mounting | Horizontal / Vertical |
| Protection Class | IP20 |
| Dimensions (W x H x D) | 74 × 135 × 82 mm |
| Weight | 0.281 kg |
Applications
-
Small-scale machine control
-
Building automation
-
HVAC systems
-
Water treatment systems
-
Industrial monitoring and control
-
Decentralized I/O control systems
Advantages
-
Integrated Ethernet for flexible networking
-
Compact and cost-efficient design
-
Easy DIN rail mounting
-
Support for multiple programming languages
-
Real-time performance with multitasking
-
Wide operating temperature and voltage range
FAQs
Q1: What is the power supply requirement of the PM554-T-ETH?
A1: It requires a 24 V DC power supply.
Q2: How many onboard I/O channels are available?
A2: It offers 8 digital inputs and 6 transistor digital outputs.
Q3: Does the module support Ethernet communication?
A3: Yes, it has an onboard Ethernet port.
Q4: What programming languages are supported?
A4: IL, FBD, LD, ST, SFC, and CFC are supported.
Q5: What is the processor speed?
A5: 50 MHz using a Freescale ARM 32-bit processor.
Q6: Can the module be used vertically?
A6: Yes, with reduced output load in vertical mounting.
Q7: Is there support for real-time clock?
A7: Yes, with optional accessories like TA561-RTC.
Q8: What is the typical current consumption?
A8: Approximately 70 mA.
Q9: Is the unit suitable for harsh environments?
A9: It operates in 0°C to +60°C and 95% humidity without condensation.
Q10: What is the protection rating of the device?
A10: IP20, suitable for control cabinet environments.
