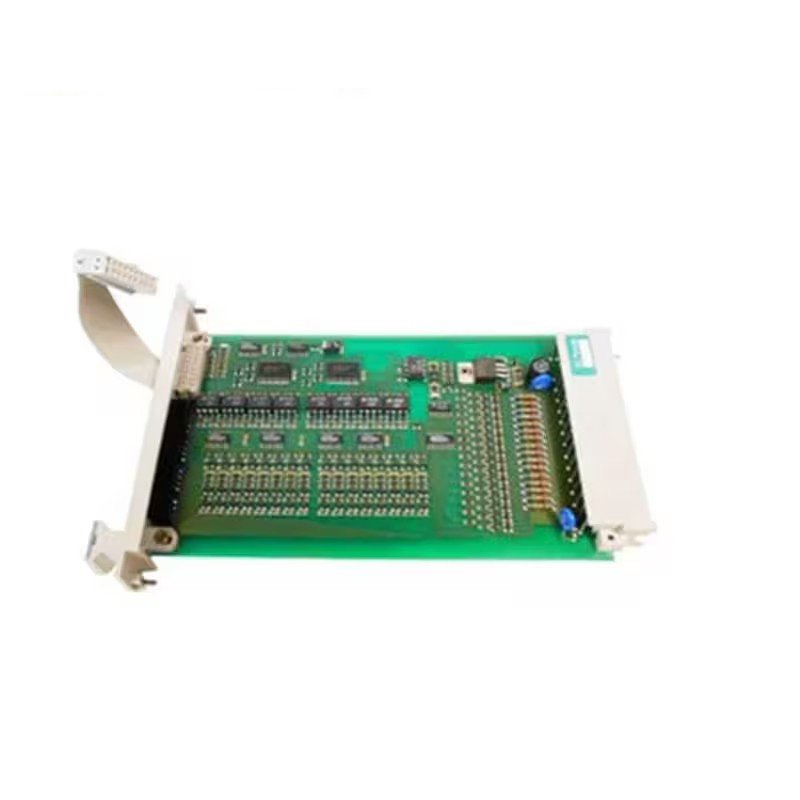

The Honeywell 10100/2/1 horizontal bus driver module is integral to the Honeywell Experion PKS distributed control system (DCS). It facilitates efficient communication between the DCS and various field devices, making it essential for industrial automation.

Technical Specifications

• Manufacturer: Honeywell
• Product No.: 10100/2/1
• Product Type: Horizontal Bus Driver
• Dimensions: 2.5 cm x 20.3 cm x 12.7 cm
• Weight: 0.24 lbs
• Power Requirements:
  • A1 cable: 5 VDC, 35 mA
  • A21 cable: 5 VDC, 35 mA
  • A22 cable: 5 VDC, 65 mA
• Ripple Content: < 50 mV p-p
• Space Requirements: 4 TE, 3 HE (4 HP, 3U)
• Communication Protocols:
  • HART
  • FOUNDATION Fieldbus
  • Profibus
• Approvals:
  • CE
  • TÜV
  • UL
• Configuration: Horizontal mounting

Applications

• Process Automation: Ideal for connecting field instruments in industries such as oil and gas, chemicals, and power generation.
• Manufacturing: Integrates various automation components effectively.
• Infrastructure: Monitors and controls critical infrastructure systems.
