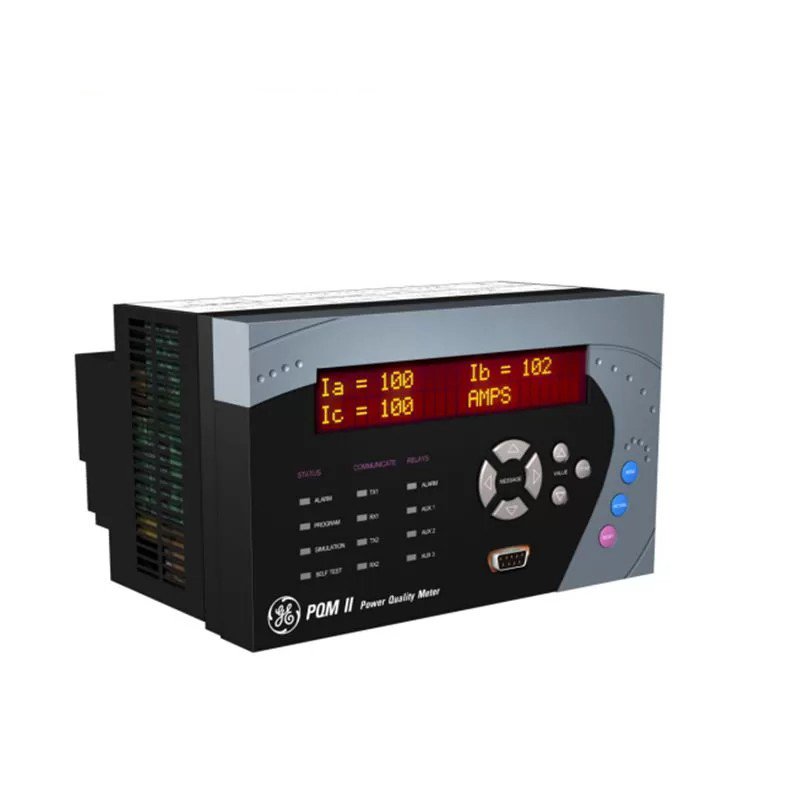

The GE Multilin PQM II monitors and controls electrical power systems. It is ideal for large-scale installations like substations and industrial facilities.

Key Features and Capabilities

• Comprehensive Power Quality Monitoring: Measures voltage, current, power (various types), energy consumption, power factor, and frequency.
• Control Functions: Allows customizable control actions based on measured values, such as load shedding, power factor correction, and alarms.
• Communication Flexibility: Offers multiple communication ports (RS-485, RS-232) to integrate with other systems.
• Harmonic Analysis: Identifies and analyzes harmonic distortions in the power system to prevent equipment damage.
• Data Logging and Analysis: Records data for later analysis to troubleshoot power quality issues.

Feature Highlights

• Monitoring: A, V, VA, W, var, kWh, kvarh, kVAh, PF, Hz
• Demand Metering: W, var, A, VA
• Setpoints for Alarm or Control: Unbalance, frequency, power factor, voltage, and current
• Output Relays: Four output relays for flexible control configuration
• Switch Inputs: Four switch inputs
• Analog Outputs: Four isolated analog outputs replace transducers for PLC interface
• Analog Input: One 4 to 20 mA analog input
• Communications: Modbus communications
• COM Ports: Three COM ports (two rear RS485 ports and one front RS232 port)
• Harmonic Analysis: For power quality review and problem correction
• Display and Keypad: 40-character display and keypad for local programming
• Software: No-charge EnerVista PQM Setup Software
• Simulation Mode: For testing and training
• Design: Compact design for panel mount
• Control Power: AC/DC control power

Applications of the PQM II

• Distribution Feeders: Metering of distribution feeders
• Transformers: Monitoring transformers
• Generators: Metering and control of generators
• Capacitor Banks: Monitoring capacitor banks
• Motors: Control and metering of motors
• Voltage Systems: Medium and low voltage three-phase systems
• Installations: Commercial, industrial, utility, large-scale fixed installations
• Load Shedding: Flexible control for demand load shedding
• Power Factor: Monitoring and control of power factor
• Power Quality Analysis: Comprehensive power quality analysis
• System Debugging: Useful for system debugging
