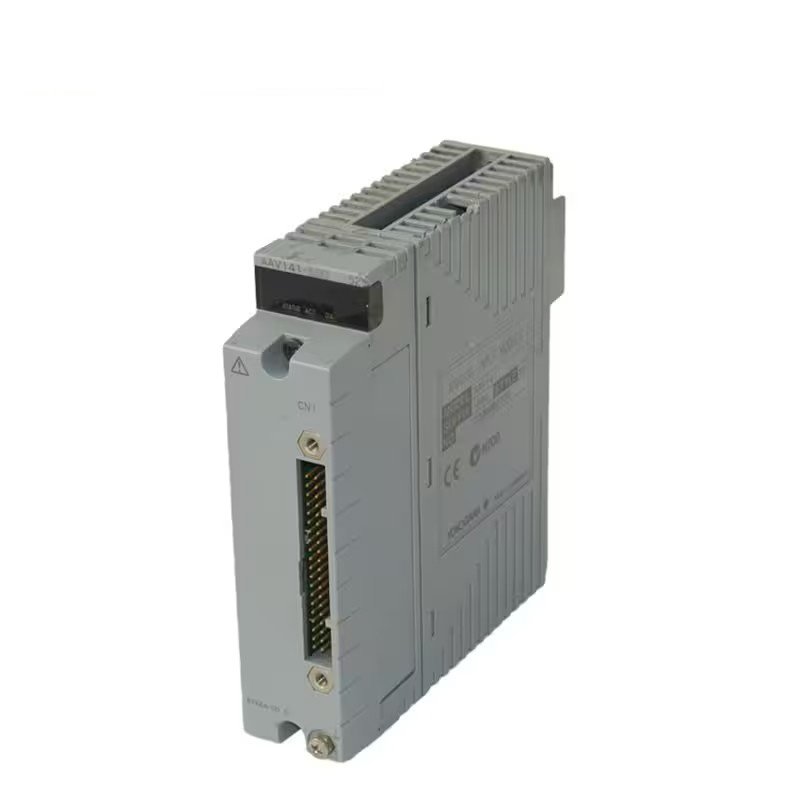

The Yokogawa AAV141 is an analog input module designed to handle 16 channels of non-isolated input signals. It is widely used in industrial automation and process control systems. The module converts analog signals from sensors and transmitters into digital data for processing by a control system.

Technical Specifications

• Input Signal: 1 to 5 V DC (allowable common mode voltage ±1 V or less)
• Input Impedance: 1 MΩ or larger (typically 340 kΩ or larger)
• Accuracy: ±4 mV, ±4 mV/10 °C
• Current Consumption: 350 mA (5 V DC)
• Weight: 0.2 kg
