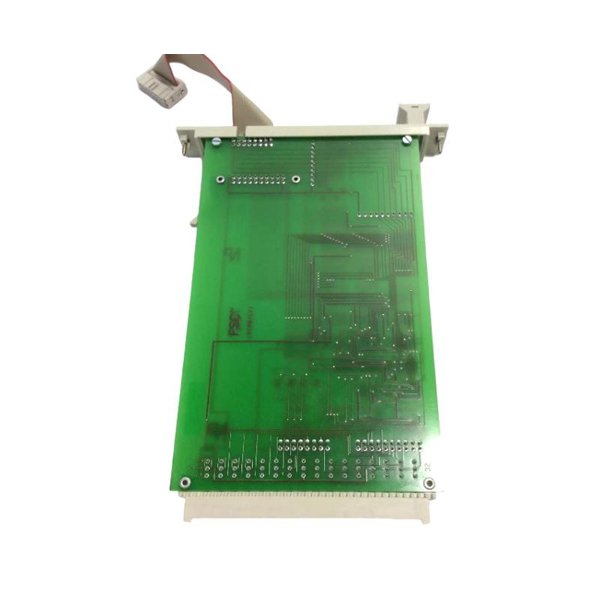

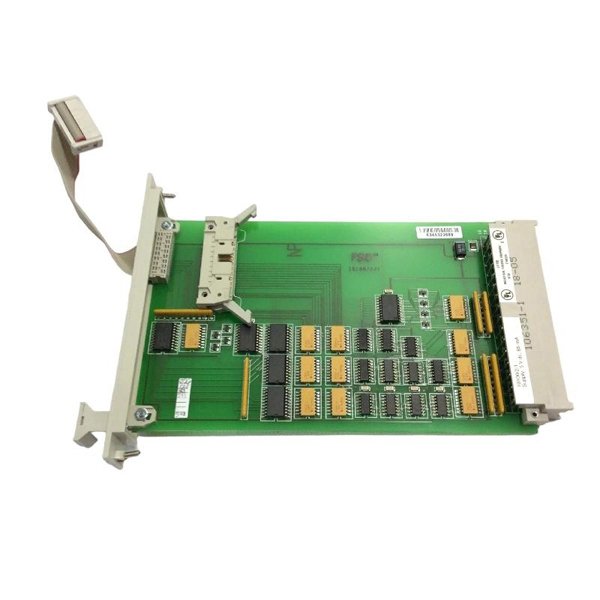

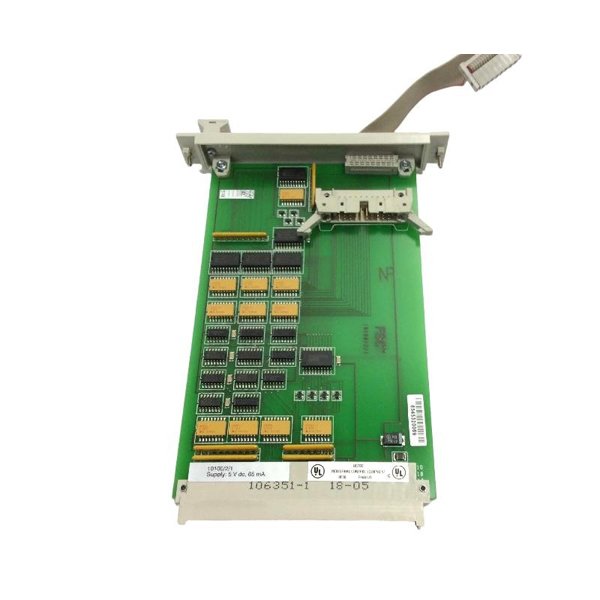

Honeywell FSC 10100/2/1 Horizontal Bus Driver Module

The Honeywell FSC 10100/2/1 Horizontal Bus Driver Module is a critical communication interface module used in Honeywell’s Fail Safe Controller (FSC) platform. Designed to ensure safe and reliable horizontal communication between logic solvers or subsystem nodes within an FSC-based Safety Instrumented System (SIS), this module is pivotal in the high-integrity safety architecture demanded by the process industries.

In large-scale or distributed safety configurations, the 10100/2/1 module supports deterministic communication across horizontally arranged controllers, maintaining synchronicity, signal accuracy, and system-wide fault tolerance. It is particularly suited for SIL 3 certified environments and provides redundant operation for enhanced system availability. The module operates seamlessly with Honeywell’s FSC system infrastructure, commonly used in refineries, offshore platforms, chemical plants, and power facilities.

Product Specifications

Applications

The FSC 10100/2/1 module is designed for mission-critical safety communication. Its application scope spans multiple high-risk industries where inter-rack communication reliability is non-negotiable:

• Oil & Gas (Onshore/Offshore)

  Manages inter-module data exchange in Emergency Shutdown Systems (ESD), Fire & Gas Systems (F&G), and Blowout Preventer (BOP) control.

• Petrochemical and Chemical Plants

  Provides horizontal linkage for distributed logic solvers, essential for process safeguarding and interlocking mechanisms.

• Power Generation Facilities

  Used in turbine safety, boiler management systems (BMS), and plant-wide protection strategies.

• Refineries

  Ensures consistent safety communication between modular shutdown units and control panels.

• Pharmaceuticals

  Supports validated and redundant data transmission for cleanroom or hazardous zone applications.

• LNG Terminals and Storage

  Ensures synchronized horizontal safety logic in distributed liquefaction, compression, or vaporization systems.

Product Advantages

• SIL 3 Certified Reliability

  Meets stringent international safety standards required in SIS applications, enabling regulatory compliance and system integrity.

• Redundant Communication Pathways

  Supports hot-standby redundancy, ensuring continuous communication in case of a module failure.

• Robust Diagnostic Capabilities

  Self-test features, LED status displays, and fault detection simplify troubleshooting and prevent communication breakdowns.

• Compact Design with High Performance

  Small footprint saves panel space while delivering fast and deterministic data exchange.

• Backplane Powered

  Eliminates the need for external power wiring, reducing installation complexity.

• Designed for Harsh Environments

  Engineered to operate reliably in extreme industrial conditions—temperature, humidity, and electrical noise.

• Integration-Friendly

  Seamlessly integrates with existing FSC architectures, simplifying upgrades and expansions.

Frequently Asked Questions (FAQ)

1. What is the primary function of the FSC 10100/2/1 module?

   It enables high-speed horizontal communication between logic solvers in Honeywell FSC safety systems.

2. Is this module suitable for use in SIL 3 certified safety systems?

   Yes, it is TÜV certified for use in SIL 3 applications.

3. Can this module support redundancy?

   Yes, it is designed for hot-standby redundant configurations to enhance fault tolerance.

4. What systems is it compatible with?

   It works with Honeywell’s FSC and Safety Manager systems.

5. Does the module require an external power supply?

   No, it is powered through the system backplane.

6. What are the diagnostic features of this module?

   It has built-in self-test capabilities, status LEDs, and communication fault detection.

7. Can the FSC 10100/2/1 be used in hazardous locations?

   Yes, it meets ATEX and UL standards for use in hazardous industrial environments.

8. Is the module hot-swappable?

   No, for safety and integrity, it must be installed or removed with the system powered down.

9. Where is this module installed?

   It is mounted in the FSC chassis rack, typically in a designated horizontal communication slot.

10. How is this module different from vertical bus modules?

    Horizontal bus modules like the 10100/2/1 are used for peer-to-peer communication across nodes, while vertical modules handle intra-node communication within a single rack.
