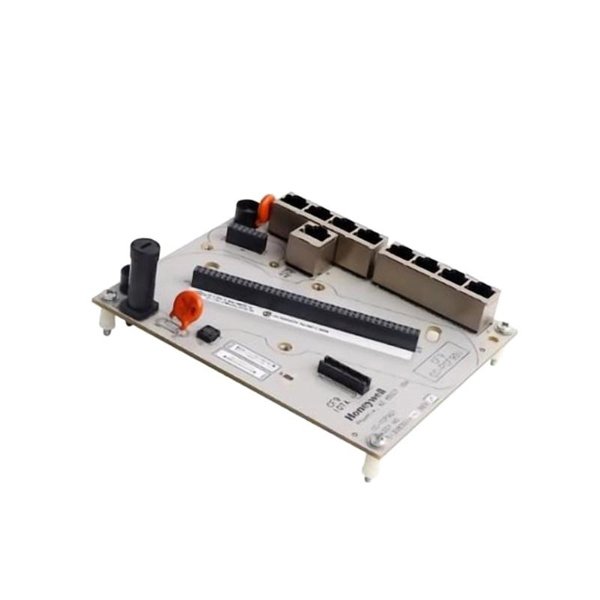

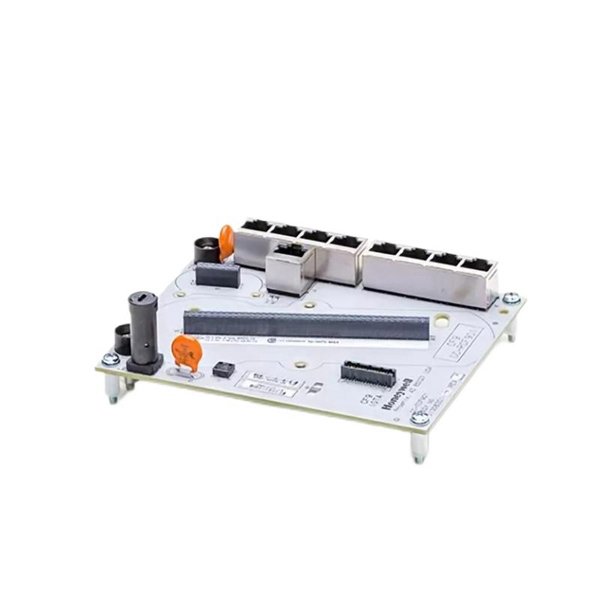

The Honeywell CC-HCAR01 51454504-175 C300 System Backplane is a critical component within the Experion Process Knowledge System (PKS) architecture. This backplane provides the physical and electrical infrastructure needed for the integration and communication of I/O modules, controller modules, and power modules in the C300 system. Designed for reliability and industrial-grade performance, the CC-HCAR01 ensures seamless data flow and control signal transmission across the distributed control system (DCS).

This system backplane is engineered to meet the demanding requirements of industrial automation and process control applications. With its modular structure and robust signal integrity, it serves as the backbone for mission-critical processes across industries such as oil & gas, chemicals, pharmaceuticals, and power generation.

Product Specifications

Product Applications

The Honeywell CC-HCAR01 backplane is designed for use in the following areas:

• Distributed Control Systems (DCS): Seamless integration with the Honeywell C300 controller to manage complex industrial processes.

• Industrial Process Automation: Supports fast communication between I/O and control modules for real-time process control.

• Manufacturing Plants: Ideal for discrete and process manufacturing sectors requiring high-reliability control infrastructure.

• Oil & Gas Operations: Suited for upstream, midstream, and downstream automation setups.

• Pharmaceutical Production: Ensures precision and compliance in high-integrity environments.

• Power Generation Facilities: Provides reliable operation in high-availability SCADA and control systems.

Product Advantages

• Robust Infrastructure: Designed for continuous, high-reliability operation in mission-critical environments.

• Seamless Integration: Fully compatible with Honeywell’s C300 controllers and I/O systems.

• High-Speed Communication: Ensures low-latency signal transmission between modules.

• Modular Design: Flexible slot configuration supports expansion and system scalability.

• Minimal Maintenance: Passive design with no moving parts reduces wear and maintenance needs.

• Long Lifecycle Support: Backed by Honeywell’s commitment to long-term DCS hardware support.

• Certified Safety Compliance: Meets global standards for industrial electronics and automation equipment.

FAQ

1. What is the primary function of the CC-HCAR01 backplane?

   It acts as a physical and electrical platform connecting control modules, I/O modules, and power components in a C300-based DCS system.

2. Is the CC-HCAR01 compatible with all Honeywell DCS modules?

   It is specifically designed for the C300 system and is compatible with associated I/O and controller modules from the Experion PKS range.

3. What type of mounting does it support?

   The backplane supports both DIN rail and direct panel mounting depending on the cabinet configuration.

4. Does it require active cooling?

   No, it relies on passive cooling provided by the enclosure’s ventilation system.

5. What are the key certifications?

   The product meets CE, UL, CSA, and RoHS standards, ensuring compliance with international regulations.

6. Can this backplane be installed in outdoor environments?

   No, it is designed for installation within protected industrial enclosures suitable for indoor environments.

7. How many modules can it support?

   The backplane supports multiple slots, allowing for connection of various I/O and controller modules depending on the system configuration.

8. Is it hot-swappable?

   The backplane itself is not hot-swappable, but the modules connected to it may support hot-swapping depending on their individual specifications.

9. What’s the recommended maintenance cycle?

   Due to its passive nature, it requires minimal maintenance; however, periodic inspections are recommended during scheduled plant maintenance.

10. Is technical support available from Honeywell for this unit?

    Yes, Honeywell offers comprehensive technical support, documentation, and field service for the CC-HCAR01 and related systems.
