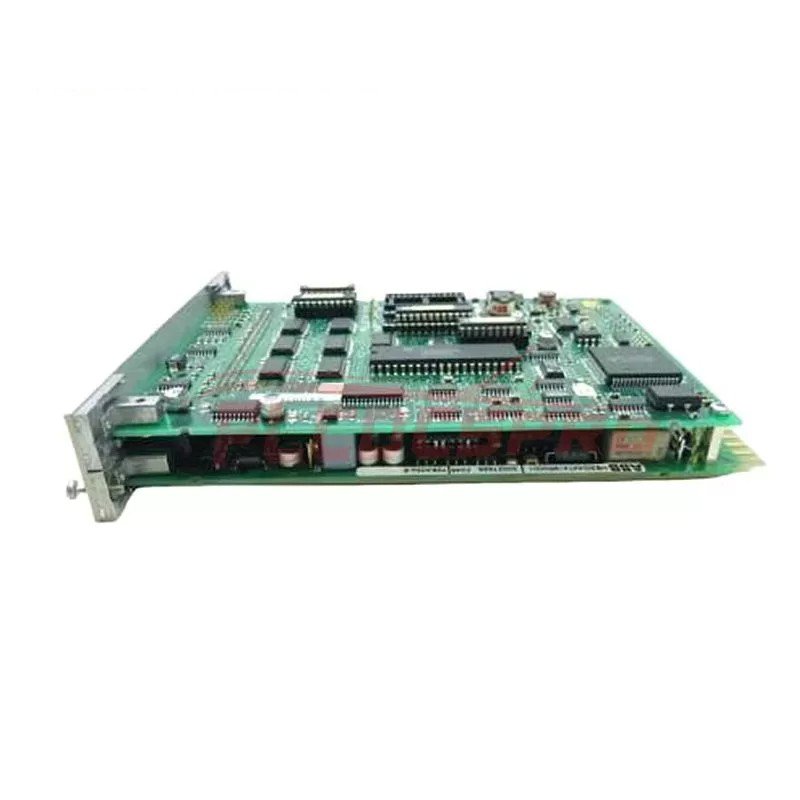

ABB HESG447398R0020 Analog Input Module

The ABB HESG447398R0020 analog input module, part of the HEMS series, offers robust capabilities for monitoring and analyzing energy consumption in various applications. Here’s a structured presentation of its features and specifications:

Key Features

• Analog Input Channels: Four channels for versatile signal monitoring.
• Signal Compatibility: Supports various signal types including current (mA) from transformers, voltage transducers, and temperature sensors.
• Accuracy and Resolution: Offers high accuracy (0.2% of full scale) and fine resolution (0.01% of full scale) for precise measurements.
• Configurability: Scalable and filterable inputs for tailored data acquisition.
• Communication Protocols: Utilizes Modbus RTU or Modbus TCP/IP for seamless integration into control and monitoring systems.
• Power Supply: Operates on 24 VDC, suitable for industrial power setups.
• Operating Conditions: Wide operating temperature range (-20 to +70 °C) ensures reliability in diverse environments.
• Compact Design: Dimensions of 90 x 60 x 30 mm for space-efficient installation.

Technical Specifications

• Input Range: -20 mA to +20 mA, accommodating a broad range of analog signals.
• Update Rate: 10 Hz, ensuring real-time data acquisition.
• Communication: Supports Modbus RTU or Modbus TCP/IP protocols for flexible connectivity.
• Power Supply: 24 VDC, standard in industrial settings.
• Operating Temperature: -20 to +70 °C, suitable for various environmental conditions.
• Dimensions: Compact size of 90 x 60 x 30 mm, facilitating easy integration into existing systems.

Applications

• Energy Monitoring: Tracks and analyzes energy consumption patterns.
• Demand Management: Optimizes energy use based on real-time data.
• Power Quality Analysis: Identifies and mitigates power quality issues.
• Condition Monitoring: Monitors equipment health based on analog sensor data.
• Process Control: Provides critical data for controlling industrial processes.
