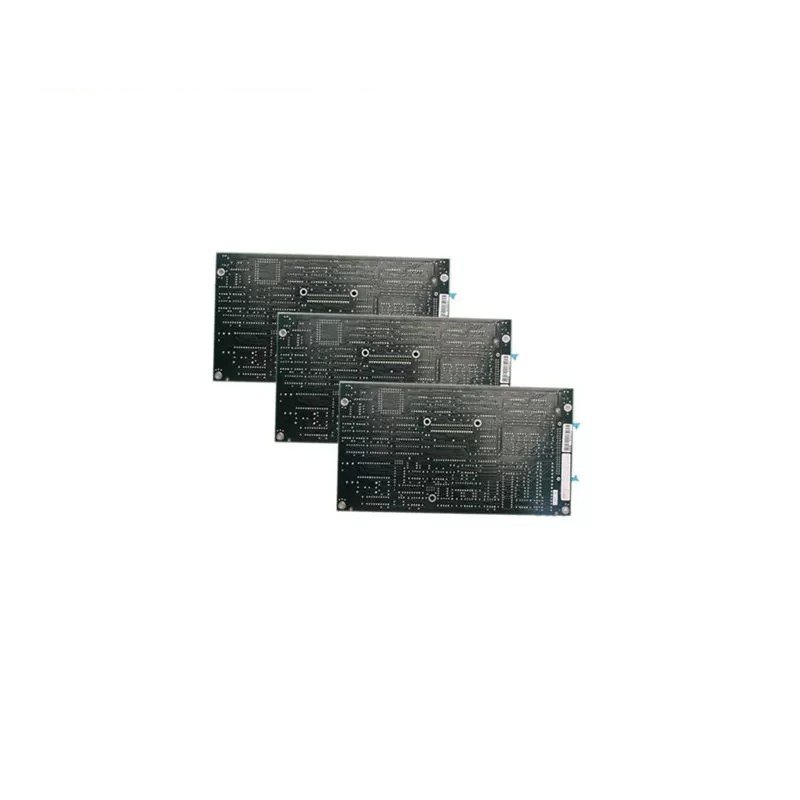

ABB 1KHW028503R0025 Analog Input Module

The ABB 1KHW028503R0025 analog input module is designed for robust performance in PLC systems, offering several key features and specifications:

Key Features

• 4 high-speed analog input channels
• Supports various voltage and current ranges (-10V to +10V, 0V to +10V for voltage; 4mA to 20mA, 0mA to 20mA for current)
• High accuracy (0.2% of full scale)
• Low noise and EMI/RFI protection
• Short-circuit protection
• DIN rail mountable for easy installation
• Suitable for demanding industrial environments

Technical Specifications

• Accuracy: 0.2% of full scale
• Resolution: 12 bits
• Update Rate: 2.5 ms
• Power Consumption: 2.5 W
• Operating Temperature Range: -20°C to +60°C
• Storage Temperature Range: -40°C to +80°C
• Humidity: 0% to 95% RH (non-condensing)
• Vibration: 0.5 g RMS, 10 Hz to 500 Hz
• Shock: 5 g, 11 ms
• EMC: Compliant with EN 61000-6-2 and EN 61000-6-3 standards

Applications

• Process control
• Machine control
• Building automation
• Environmental monitoring
• Test and measurement

Benefits

• Improved Accuracy and Reliability: Ensures reliable data collection from sensors.
• Cost Efficiency: Easy installation and maintenance on DIN rails reduce overall costs.
• Flexibility: Wide range of supported input signals accommodates various sensor types.
