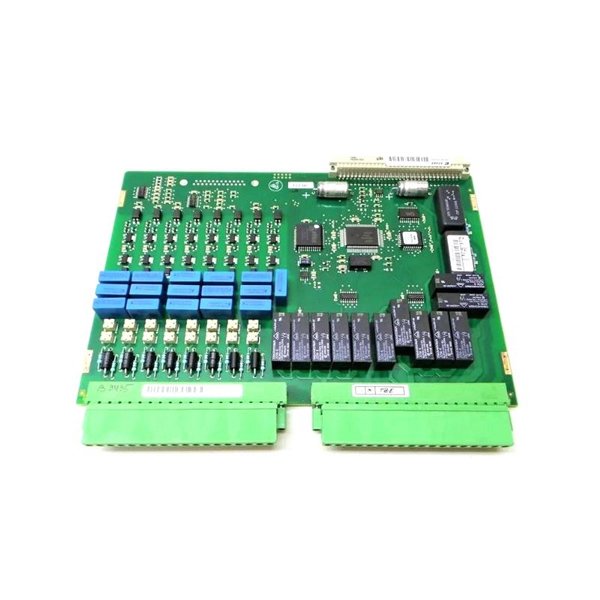

ABB 1MRK002133-ACr06 Binary I/O Module

The ABB 1MRK002133-ACr06 Binary I/O Module is a high-performance, reliable, and durable component designed for seamless integration in automation systems. It serves as a versatile interface for binary signal processing, offering robust functionality in industrial environments. This module is a crucial part of ABB’s distributed control systems (DCS) and process automation systems, designed to enable smooth communication between different I/O devices, controllers, and sensors.

The 1MRK002133-ACr06 is engineered to enhance system flexibility and optimize automation performance by supporting efficient data transmission and conversion between field signals and control systems. This product is specifically suited for applications where precise binary input/output operations are required.

Product Specifications

Applications

The ABB 1MRK002133-ACr06 Binary I/O Module is ideal for use in a wide range of industrial applications, especially in automation, control systems, and machinery. Some of the key applications include:

• Industrial Automation: Used in factories and production plants for controlling and monitoring machines and equipment.

• Process Control Systems: Employed in chemical, petrochemical, and oil & gas industries for handling discrete signals.

• Power Distribution: Helps manage binary signals for power control systems and energy distribution.

• Building Automation: Utilized for managing building systems such as lighting, HVAC, and security systems.

• Factory Automation: Perfect for managing and controlling various automated machinery and robotic systems.

Product Advantages

• High Precision: Ensures reliable and precise handling of digital signals in real-time automation systems.

• Scalable Integration: Easily integrates into larger systems and can scale with additional modules as needed.

• Rugged Design: Built to withstand harsh industrial environments, with a broad operating temperature range.

• Flexibility: Offers multiple communication protocols, making it compatible with different system architectures.

• Efficient Signal Processing: Facilitates efficient binary signal conversion and transmission between control systems and field devices.

• Low Power Consumption: Designed with energy efficiency in mind, consuming only 5W of power.

• Space-Saving Design: Compact size (160mm x 120mm x 45mm) saves valuable space in industrial control panels.

FAQ

1. What is the ABB 1MRK002133-ACr06 Binary I/O Module used for?

   • It is used for handling binary input and output signals in industrial automation and control systems.

2. How many inputs and outputs does this module have?

   • The module has 16 digital inputs and 16 digital outputs.

3. What is the voltage range for the input and output?

   • The module supports 24V DC input and output with a tolerance of ±20%.

4. What communication protocols are supported?

   • The module supports Modbus, Profibus, and EtherCAT communication protocols (depending on configuration).

5. What is the protection class of the module?

   • It has an IP20 protection class, which is suitable for typical industrial environments.

6. What are the operating and storage temperature ranges?

   • The operating temperature range is -20°C to +60°C, and the storage temperature range is -40°C to +85°C.

7. How is the module mounted?

   • The module is designed for rail mounting.

8. What is the power consumption of the module?

   • The module consumes 5W of power.

9. What is the weight of the module?

   • The weight of the module is 0.6 kg.

10. Can this module be used in hazardous environments?

    • This module is designed for general industrial use and is not intended for hazardous environments without additional protective measures.
