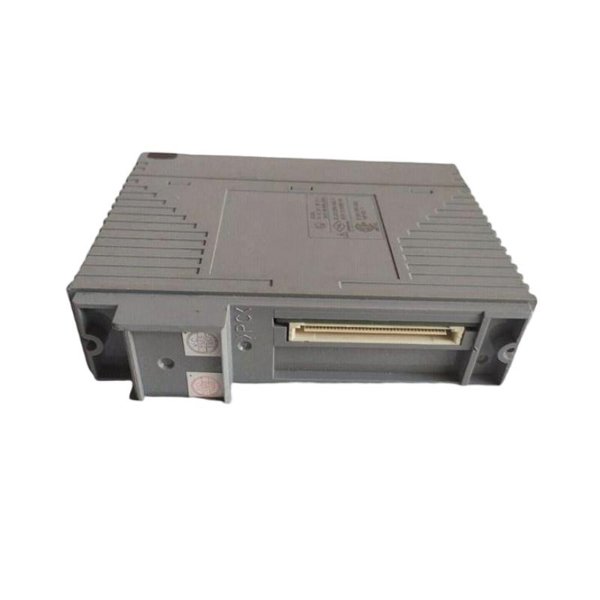

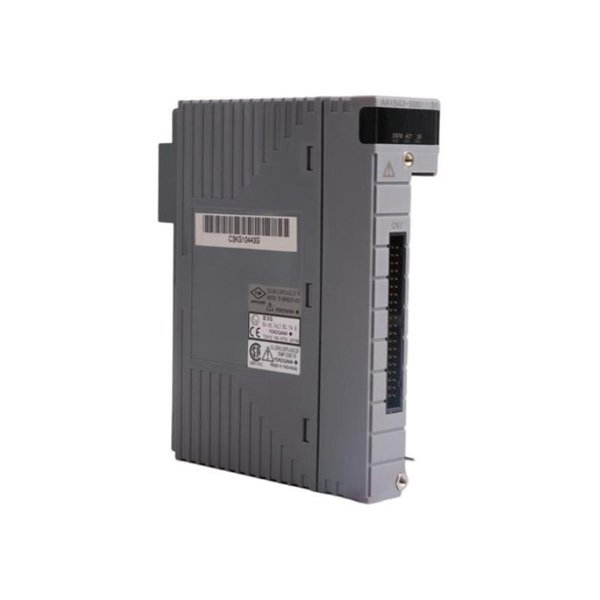

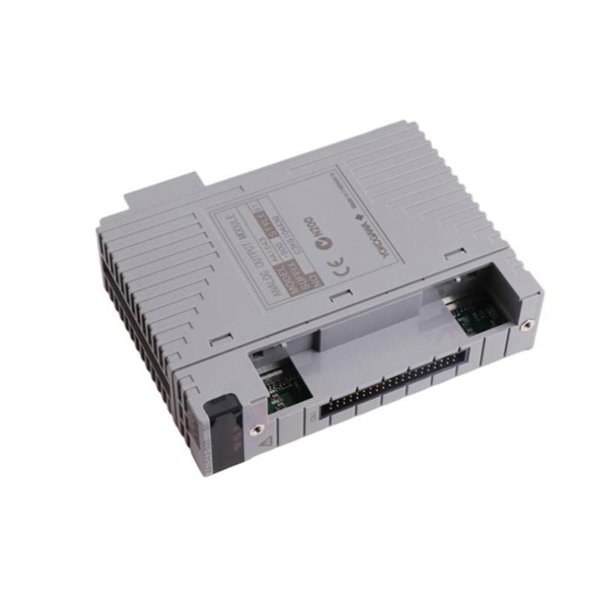

Yokogawa AAI543-S00 S1 Analog Output Module
Manufacturer:Yokogawa
Product Number:AAI543-S00 S1
Product Type:Analog Output Modules
Origin:Japan
Dimensions:107.5 × 32.8 × 130 mm
Weight:0.4kg
Views:40
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Yokogawa AAI543-S00 S1 is an 8-channel analog output module developed for integration with Yokogawa’s industry-leading CENTUM VP and ProSafe-RS control systems. This module provides reliable and accurate 4–20 mA current output signals, making it ideal for controlling field devices such as control valves, positioners, and actuators. With a robust design, high accuracy, and diagnostic features, the AAI543-S00 S1 delivers dependable performance in demanding industrial automation environments.
Key Features
-
8-channel analog current output (4–20 mA)
-
Channel-to-channel and channel-to-ground isolation
-
12-bit resolution or higher for precise signal control
-
Built-in diagnostics for fault detection
-
Hot-swappable for minimal downtime during maintenance
-
Designed for integration with CENTUM VP and ProSafe-RS systems
-
Conforms to international industrial standards
-
Suitable for use in safety instrumented applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | AAI543-S00 S1 |
| Module Type | Analog Output Module |
| Number of Channels | 8 isolated analog output channels |
| Output Signal Type | 4–20 mA DC |
| Output Load Resistance | Max. 600 Ω |
| Output Resolution | 12-bit or higher |
| Accuracy | ±0.1% of span |
| HART Communication | Not supported (non-HART version) |
| Isolation | Channel-to-channel and channel-to-ground |
| Diagnostic Features | Open circuit detection, output signal abnormality |
| Hot Swap Capability | Supported |
| Power Supply | Supplied via FIO base unit |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –20 °C to +70 °C |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
| Mounting Type | Mounted on FIO base unit |
| Certifications | CE, KC, RoHS, SIL (with ProSafe-RS integration) |
Industry Applications
-
Oil & gas and petrochemical control
-
Power generation and turbine automation
-
Water and wastewater treatment systems
-
Batch processing in food & beverage industries
-
Chemical plant operations
-
Pharmaceutical manufacturing
-
Safety systems (SIL) using ProSafe-RS architecture
Frequently Asked Questions (FAQ)
What is the function of the AAI543-S00 S1 module?
It converts digital control signals into 4–20 mA analog current outputs for use with field devices.
How many channels does the module support?
It provides 8 isolated analog output channels.
Does this model support HART communication?
No, the AAI543-S00 S1 is a non-HART analog output module.
Can the module be hot-swapped?
Yes, it is hot-swappable and can be replaced during system operation.
Is it suitable for safety systems?
Yes, when used with ProSafe-RS, it supports SIL applications.
What types of field devices is it used with?
It is commonly used to control valves, actuators, and other analog field instruments.
Does the module include diagnostic features?
Yes, it includes fault detection like open circuit and output abnormalities.
What control systems is it compatible with?
CENTUM VP and ProSafe-RS.
What is the maximum load resistance for outputs?
The maximum load is 600 Ω per channel.
Is the module isolated?
Yes, it provides both channel-to-channel and channel-to-ground isolation.
Loading comments...
Yokogawa AAI543-S00 S1 Analog Output Module
Manufacturer:Yokogawa
Product Number:AAI543-S00 S1
Product Type:Analog Output Modules
Origin:Japan
Dimensions:107.5 × 32.8 × 130 mm
Weight:0.4kg
Views:40
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Yokogawa AAI543-S00 S1 is an 8-channel analog output module developed for integration with Yokogawa’s industry-leading CENTUM VP and ProSafe-RS control systems. This module provides reliable and accurate 4–20 mA current output signals, making it ideal for controlling field devices such as control valves, positioners, and actuators. With a robust design, high accuracy, and diagnostic features, the AAI543-S00 S1 delivers dependable performance in demanding industrial automation environments.
Key Features
-
8-channel analog current output (4–20 mA)
-
Channel-to-channel and channel-to-ground isolation
-
12-bit resolution or higher for precise signal control
-
Built-in diagnostics for fault detection
-
Hot-swappable for minimal downtime during maintenance
-
Designed for integration with CENTUM VP and ProSafe-RS systems
-
Conforms to international industrial standards
-
Suitable for use in safety instrumented applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | AAI543-S00 S1 |
| Module Type | Analog Output Module |
| Number of Channels | 8 isolated analog output channels |
| Output Signal Type | 4–20 mA DC |
| Output Load Resistance | Max. 600 Ω |
| Output Resolution | 12-bit or higher |
| Accuracy | ±0.1% of span |
| HART Communication | Not supported (non-HART version) |
| Isolation | Channel-to-channel and channel-to-ground |
| Diagnostic Features | Open circuit detection, output signal abnormality |
| Hot Swap Capability | Supported |
| Power Supply | Supplied via FIO base unit |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –20 °C to +70 °C |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
| Mounting Type | Mounted on FIO base unit |
| Certifications | CE, KC, RoHS, SIL (with ProSafe-RS integration) |
Industry Applications
-
Oil & gas and petrochemical control
-
Power generation and turbine automation
-
Water and wastewater treatment systems
-
Batch processing in food & beverage industries
-
Chemical plant operations
-
Pharmaceutical manufacturing
-
Safety systems (SIL) using ProSafe-RS architecture
Frequently Asked Questions (FAQ)
What is the function of the AAI543-S00 S1 module?
It converts digital control signals into 4–20 mA analog current outputs for use with field devices.
How many channels does the module support?
It provides 8 isolated analog output channels.
Does this model support HART communication?
No, the AAI543-S00 S1 is a non-HART analog output module.
Can the module be hot-swapped?
Yes, it is hot-swappable and can be replaced during system operation.
Is it suitable for safety systems?
Yes, when used with ProSafe-RS, it supports SIL applications.
What types of field devices is it used with?
It is commonly used to control valves, actuators, and other analog field instruments.
Does the module include diagnostic features?
Yes, it includes fault detection like open circuit and output abnormalities.
What control systems is it compatible with?
CENTUM VP and ProSafe-RS.
What is the maximum load resistance for outputs?
The maximum load is 600 Ω per channel.
Is the module isolated?
Yes, it provides both channel-to-channel and channel-to-ground isolation.
