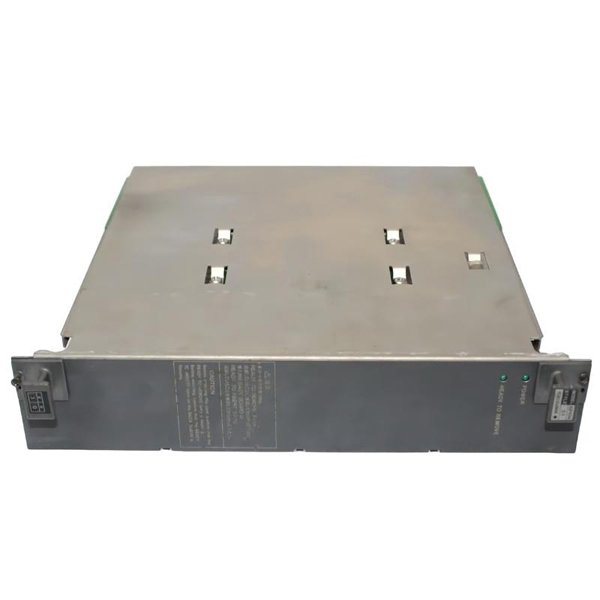

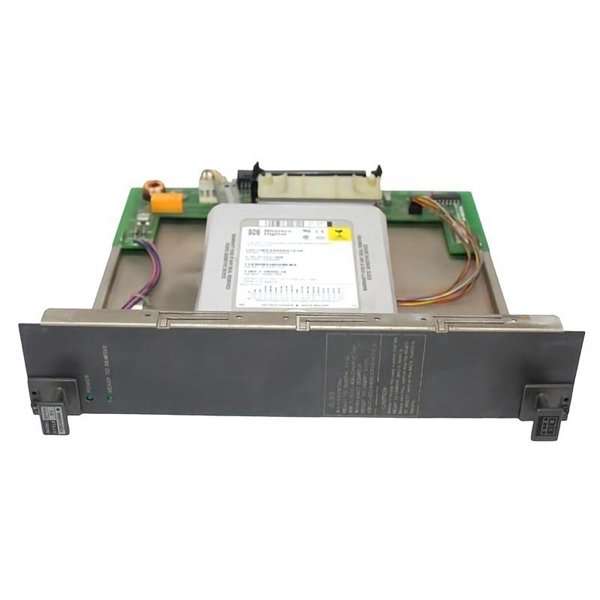

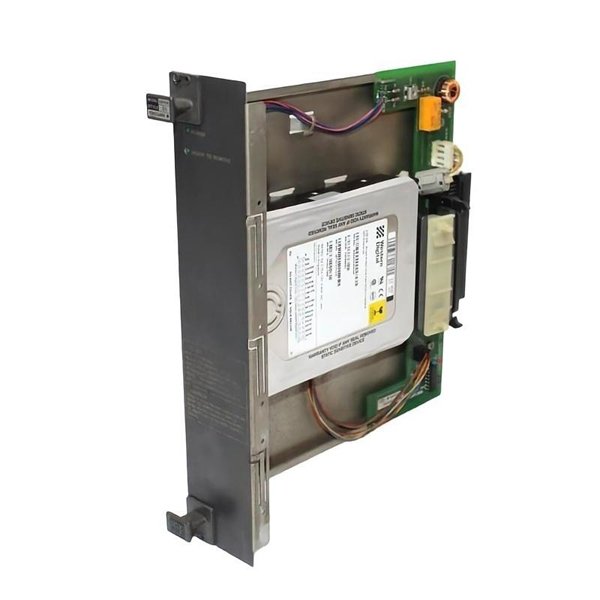

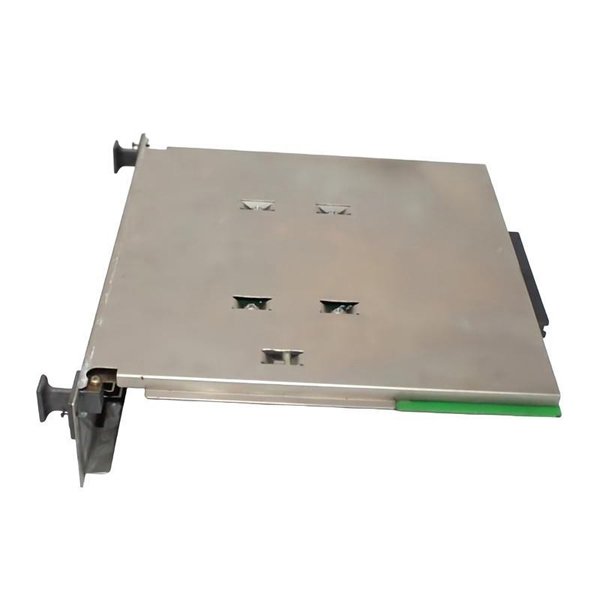

Yokogawa AIP434-S1 Hard Drive Module

The Yokogawa AIP434-S1 Hard Drive Module is a specialized storage component engineered for use within Yokogawa’s advanced industrial control systems, particularly the CENTUM VP and ProSafe-RS platforms. Unlike conventional commercial hard drives, the AIP434-S1 is designed with industrial-grade durability, reliability, and long-term operational stability in mind.

It serves as a critical backbone for data-intensive tasks such as historical logging, alarm and event archiving, redundancy operations, and system configuration backup. The drive module ensures continuous operation under 24/7 workloads, delivering high-speed data access in real-time process environments where downtime is not acceptable.

The AIP434-S1 is built to withstand harsh industrial environments, offering resistance to shock, vibration, electromagnetic interference, and temperature fluctuations. As a hot-swappable module in redundant configurations, it supports uninterrupted operations and simplified maintenance procedures.

Product Parameters

Product Applications

The Yokogawa AIP434-S1 is widely used in process automation, power generation, and safety-critical industrial systems. Its applications include:

• Data Archiving: Storing long-term plant operation records, time-series data, and process histories.

• System Backup: Retaining configurations, system files, and recovery images for disaster recovery.

• Alarm/Event Logging: Capturing all alarms and events for compliance, auditing, and troubleshooting.

• Redundant System Operation: Supporting duplex mirrored configurations to ensure uninterrupted operation.

• Industrial Security: Providing secure storage in environments with strict cybersecurity requirements.

• Continuous Process Recording: Enabling round-the-clock storage for mission-critical operations in oil & gas, petrochemicals, power plants, and pharmaceutical industries.

Product Advantages

• Industrial Durability: Built to operate continuously in harsh conditions with mechanical and environmental stress tolerance.

• High Data Integrity: Equipped with ECC and monitoring systems to detect and correct data errors automatically.

• Full System Integration: Seamlessly integrates with Yokogawa’s DCS and SIS platforms without external modifications.

• Redundancy Support: Enables failover and mirrored operations to protect against data loss and downtime.

• Real-Time Optimized: Designed for fast data transfer to support real-time monitoring and control operations.

• Diagnostics & Predictive Maintenance: Includes built-in self-diagnostics for proactive maintenance strategies.

• Compact & Modular: Saves space while providing high capacity, making it easy to replace and expand when required.

• Secure & Reliable: Provides a stable foundation for critical process industries where data protection and availability are paramount.

FAQ

1. What is the primary function of the AIP434-S1 Hard Drive Module?

   It provides secure storage for process data, alarms, logs, and system configurations in Yokogawa automation systems.

2. Does the AIP434-S1 support redundancy for critical operations?

   Yes, it can be configured in duplex mode for mirrored redundancy.

3. Is the AIP434-S1 compatible with Yokogawa CENTUM VP?

   Yes, it is fully compatible with CENTUM VP control systems.

4. Can this module be used in ProSafe-RS safety systems?

   Yes, it is designed for use in both control and safety system environments.

5. What error correction technology does the module use?

   It uses ECC (Error Correction Code) to detect and correct data errors automatically.

6. Does the AIP434-S1 support hot-swapping?

   Yes, in redundant system configurations, it supports hot-swapping without requiring a full system shutdown.

7. How does the module ensure data integrity during power loss?

   It employs industrial-grade buffering and controlled write processes to prevent corruption.

8. Is predictive maintenance supported with this module?

   Yes, it features drive health monitoring and self-diagnostics for predictive maintenance.

9. Can the module handle continuous real-time data storage?

   Yes, it is optimized for 24/7 high-speed real-time data storage and retrieval.

10. What protections does it have against industrial environmental factors?

    It is shock-resistant, vibration-tested, and EMI-shielded, ensuring reliable operation in harsh industrial environments.
