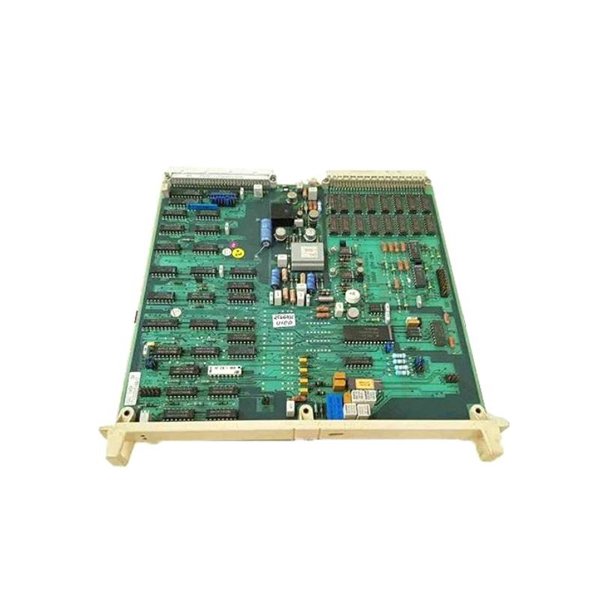

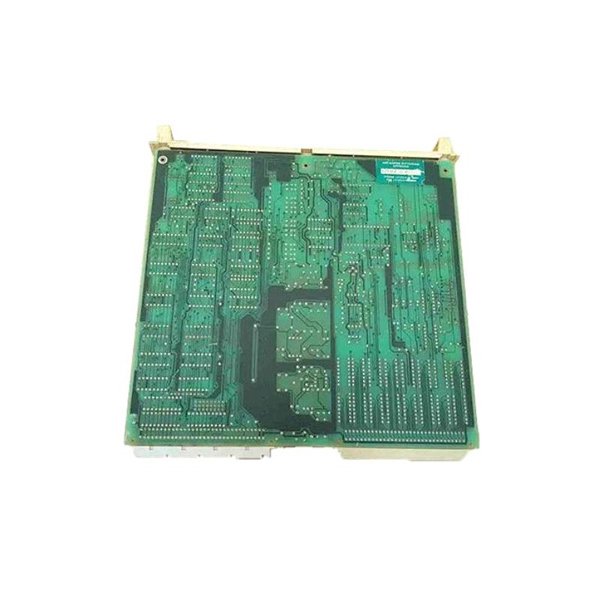

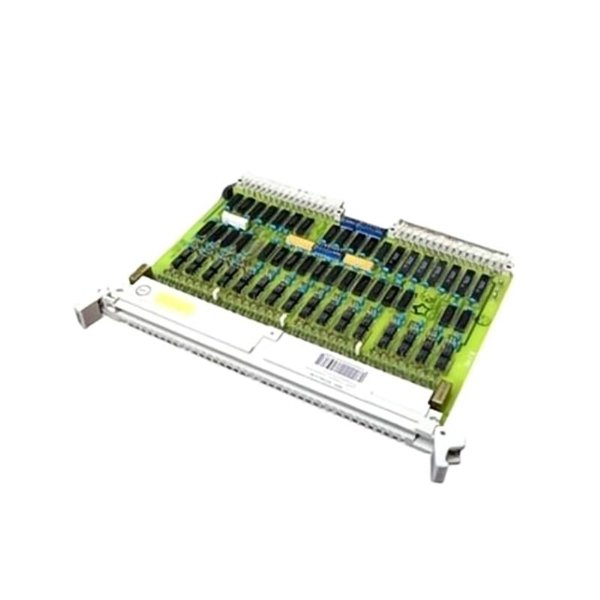

ABB 35EB92 GJR5145800R0001 Binary Input Module

The ABB 35EB92 GJR5145800R0001 is a Binary Input Module designed to interface digital signals from various sensors and devices into a format compatible with Programmable Logic Controllers (PLCs). This module is integral to industrial automation, facilitating accurate data acquisition and control in manufacturing, process control, and other automated systems.​

Product Specifications

Applications

The ABB 35EB92 GJR5145800R0001 Binary Input Module is utilized in various industrial applications, including:​

• Power Distribution in Control Cabinets: Facilitates efficient power distribution to control devices within industrial control panels.​

• Motor Control Centers: Enables precise control and monitoring of motor operations in industrial settings.​

• Automation Systems: Integrates with PLCs to manage and automate complex industrial processes.​

• Renewable Energy Systems: Assists in the control and monitoring of renewable energy generation and distribution.​

Advantages

Key advantages of the ABB 35EB92 GJR5145800R0001 include:​

• Wide Input Voltage Range: Accommodates varying input voltages from 18VDC to 30VDC, ensuring flexibility in different setups.​

• High Output Current: Delivers up to 14 Amps, supporting high-power applications.​

• Low Output Voltage Ripple and Noise: Maintains output voltage ripple and noise below 100 mV peak-to-peak, ensuring signal integrity.​

• High Efficiency: Achieves up to 95% efficiency, reducing energy loss and operational costs.​

• Integrated Diagnostics: Features built-in diagnostics for real-time monitoring and troubleshooting.​

• Hot-Swappable: Supports hot-swapping, allowing for module replacement without system downtime.​

FAQ

1. What is the primary function of the ABB 35EB92 GJR5145800R0001 module?

   • It serves as a Binary Input Module, converting digital signals from sensors and devices into a format readable by PLCs.​

2. What input voltage range does this module support?

   • The module operates within an input voltage range of 18VDC to 30VDC.​

3. What is the maximum output current of the module?

   • It can deliver up to 14 Amps of output current.​

4. How efficient is the ABB 35EB92 GJR5145800R0001?

   • The module boasts an efficiency of up to 95%, minimizing energy loss.​

5. What are the operating temperature limits for this module?

   • It operates effectively within a temperature range of -25°C to +70°C.

6. Is the module suitable for use in high-altitude environments?

   • Yes, it is designed to function at altitudes up to 3000 meters.​

7. Does the module include integrated diagnostics?

   • Yes, it features built-in diagnostics for monitoring and troubleshooting purposes.​

8. Can the ABB 35EB92 GJR5145800R0001 be hot-swapped?

   • Yes, the module supports hot-swapping, allowing for replacement without shutting down the system.​

9. What is the output voltage ripple and noise level?

   • The module maintains an output voltage ripple and noise below 100 mV peak-to-peak.​

10. What input voltage does the module operate on?

    • The module operates on an input voltage of 24V DC.
