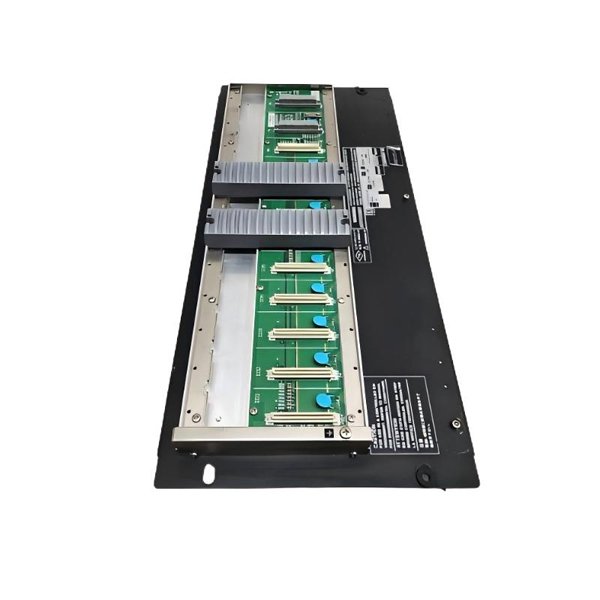

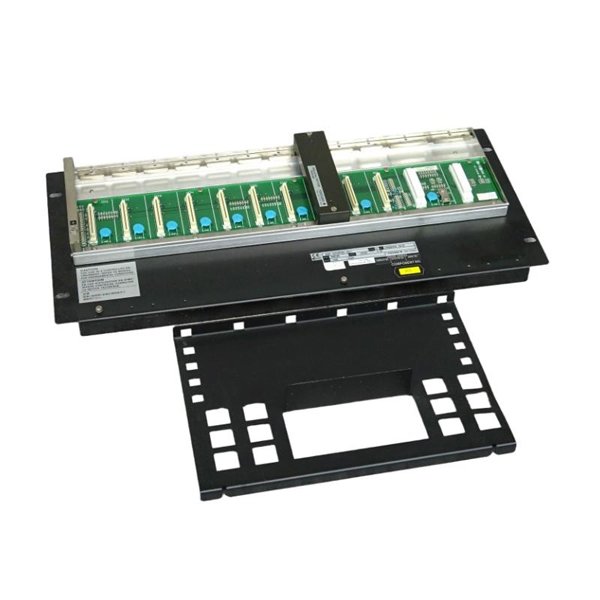

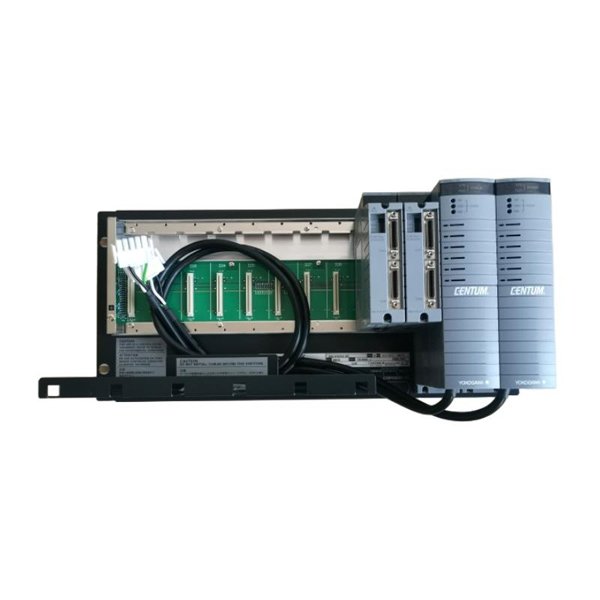

Yokogawa ANB10D-426/CU2N ESB Bus Node Unit

The Yokogawa ANB10D-426/CU2N is an advanced ESB (Ethernet Service Bus) node unit designed to facilitate high-speed communication within industrial control systems. This unit is crucial for connecting field devices and control systems through the ESB network, ensuring efficient data transfer and real-time communication. The ANB10D-426/CU2N is equipped with cutting-edge features that support a broad range of industrial applications, including process control, automation, and data acquisition systems.

Its robust design ensures reliable operation in harsh industrial environments, providing high availability and performance across a variety of operational conditions. This unit supports Ethernet-based communication protocols, making it a versatile and scalable solution for complex industrial automation systems. Additionally, the compact form factor and easy integration with other Yokogawa systems make the ANB10D-426/CU2N an excellent choice for applications where space, speed, and reliability are critical.

Product Parameters

Product Applications

The ANB10D-426/CU2N ESB Bus Node Unit is ideally suited for a wide range of applications within industrial control, automation, and data acquisition systems. Some of its key uses include:

• Industrial Automation: Enables fast and reliable communication between field devices, sensors, and control systems, ensuring seamless automation in manufacturing processes.

• Process Control Systems: Used to interconnect various process control devices, providing real-time data and enabling efficient system management.

• Data Acquisition Systems: Ideal for collecting data from remote or widely distributed sensors, transmitting it via Ethernet for processing and analysis in central control systems.

• Distributed Control Systems (DCS): Serves as a communication node, enabling the connection of multiple DCS components and ensuring synchronized data transfer and control.

• Remote Monitoring and Control: Facilitates remote monitoring and management of field devices across large installations, enabling real-time adjustments and data collection.

Product Advantages

• High-Speed Ethernet Communication: The ANB10D-426/CU2N supports 100 Mbps Ethernet communication, providing fast and reliable data transfer for real-time control and monitoring applications.

• Scalable Solution: With support for up to 16 I/O channels, this unit can handle a wide range of field devices, offering flexibility and scalability for growing automation systems.

• Robust and Reliable: Built to operate in extreme industrial conditions, the ANB10D-426/CU2N is designed to withstand temperatures ranging from -20°C to +60°C, ensuring reliable performance in harsh environments.

• Easy Integration: The unit is fully compatible with other Yokogawa systems, ensuring seamless integration and reducing setup complexity in new or existing control systems.

• Energy-Efficient Operation: With a power consumption of just 10 W, this unit delivers high performance without compromising on energy efficiency, reducing operational costs.

• Compact and Efficient Design: The unit’s compact dimensions (482.6 × 221.5 × 205 mm) and lightweight design (10 kg) make it easy to install and integrate into control panels and server racks.

FAQ

1. What communication protocol does the ANB10D-426/CU2N support?

The ANB10D-426/CU2N supports Ethernet communication using the ESB (Ethernet Service Bus) protocol, allowing for fast and efficient data transfer.

2. How many I/O channels does the ANB10D-426/CU2N support?

The ANB10D-426/CU2N supports 16 I/O channels, providing sufficient capacity for connecting a wide range of field devices.

3. What is the power supply requirement for the ANB10D-426/CU2N?

The unit requires a 24 VDC power supply with a tolerance of ±20%, ensuring stable operation even in fluctuating power conditions.

4. What is the communication speed of the ANB10D-426/CU2N?

The ANB10D-426/CU2N operates at a communication speed of 100 Mbps, ensuring fast and reliable data exchange within the control system.

5. What is the operating temperature range of the ANB10D-426/CU2N?

The unit is designed to operate in a wide temperature range of -20°C to +60°C, making it suitable for use in various industrial environments.

6. How is the ANB10D-426/CU2N mounted?

The unit is designed for rack mounting, which allows for easy and secure installation in industrial control panels.

7. What type of connectors are used on the ANB10D-426/CU2N?

The ANB10D-426/CU2N uses RJ45 Ethernet connectors for network communication, ensuring compatibility with standard Ethernet cables.

8. What is the power consumption of the ANB10D-426/CU2N?

The unit consumes just 10 W of power, making it energy-efficient while still offering reliable performance.

9. Can the ANB10D-426/CU2N be integrated with other Yokogawa systems?

Yes, the ANB10D-426/CU2N is fully compatible with other Yokogawa devices and systems, facilitating easy integration into existing setups.

10. What is the weight of the ANB10D-426/CU2N?

The unit weighs 10 kg, making it manageable for installation and maintenance tasks while still being robust and durable.
