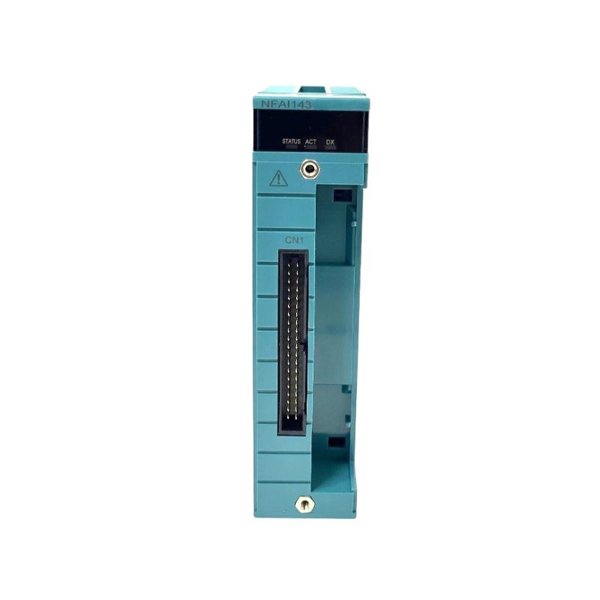

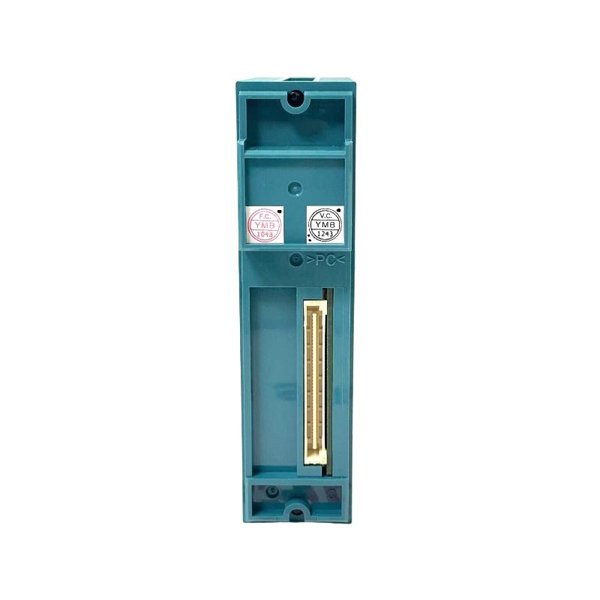

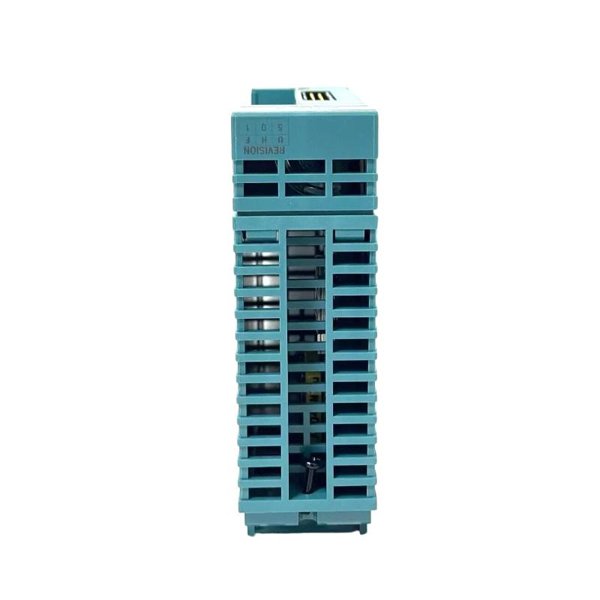

Yokogawa NFAI143-H50 S1 Analog Input Module

The Yokogawa NFAI143-H50 S1 Analog Input Module is a high-precision analog input module designed for Yokogawa’s advanced control systems such as CENTUM VP and ProSafe-RS. This module is part of the Yokogawa Node Field Control Station (FCS) architecture and serves as a critical component for gathering real-time process data from field devices. It converts analog signals, primarily in the form of 4-20 mA current loops, into digital values for accurate monitoring and control.

This module is specifically engineered to meet the rigorous demands of industrial environments where safety, accuracy, and reliability are paramount. Its robust design includes advanced diagnostics, high noise immunity, and isolation between channels to ensure reliable operation even under harsh conditions. The NFAI143-H50 S1 is particularly suitable for applications where high integrity and advanced process control capabilities are required.

Product Parameters

Product Applications

The Yokogawa NFAI143-H50 S1 module is widely utilized in process industries where accurate and reliable analog signal acquisition is essential for safe and efficient operations. Common applications include:

• Oil & Gas: Monitoring pressure, temperature, and flow rates in upstream and downstream processes.

• Chemical Plants: Accurate acquisition of process variables for regulatory control loops.

• Power Generation: Real-time monitoring of boiler and turbine systems.

• Water Treatment: Controlling pump operations, level monitoring, and flow regulation.

• Pharmaceutical Manufacturing: Ensuring compliance with stringent process control standards.

• Metals and Mining: Handling analog measurements in electrically noisy and rugged environments.

Product Advantages

• High Signal Accuracy: Ensures precise conversion of analog signals into digital data for optimal process control.

• HART Protocol Support: Provides compatibility with smart field instruments for remote diagnostics and configuration.

• Built-in Diagnostics: Real-time detection of faults such as open circuits and abnormal signals improves system reliability.

• Noise Immunity: Engineered to perform in environments with strong electrical interference.

• Compact Design: High channel density reduces control cabinet space and installation cost.

• Seamless System Integration: Fully compatible with Yokogawa’s CENTUM VP and ProSafe-RS systems.

• Enhanced Reliability: Designed for critical industrial applications requiring continuous operation.

FAQ

1. What signal range does the NFAI143-H50 S1 support?

   It supports standard 4-20 mA DC input signals, widely used in industrial applications.

2. Does the module support HART communication?

   Yes, it supports the HART protocol for communication with smart field devices.

3. How many channels are available in this module?

   It offers 16 analog input channels.

4. What is the resolution of the analog-to-digital conversion?

   The module provides 16-bit resolution for accurate signal representation.

5. Does the module offer channel-to-channel isolation?

   Yes, the module provides isolation between input channels and the system bus.

6. What diagnostic functions are included?

   Open-circuit detection, signal error monitoring, and self-diagnostic tests are included.

7. What is the update rate for signal acquisition?

   Approximately 50 ms per channel, suitable for real-time process control.

8. Can this module be used in redundant configurations?

   Yes, it can operate within redundant control system architectures for higher reliability.

9. What level of noise immunity does the module provide?

   It features advanced filtering and isolation, offering high immunity to electrical noise.

10. Is this module compatible with all Yokogawa control systems?

    It is specifically designed for CENTUM VP and ProSafe-RS, ensuring seamless integration.
