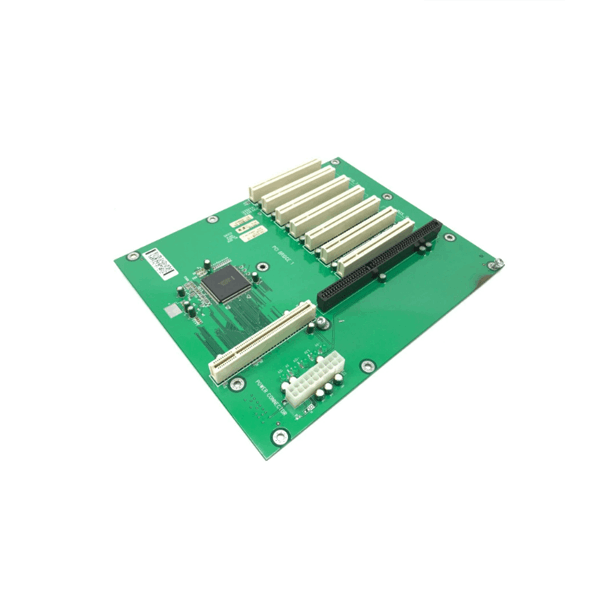

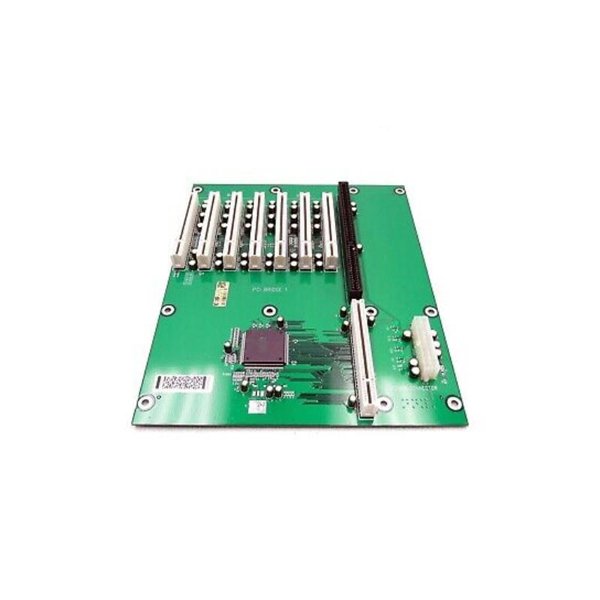

ABB DSQC 541 3HAC14363-1 Back Plate

The ABB DSQC 541 (3HAC14363-1) is a high-performance I/O module designed for industrial automation and robotic systems. It is part of ABB’s extensive range of control products, offering reliable communication and signal processing capabilities. This module is widely used in manufacturing, automotive, and logistics industries due to its robustness and compatibility with ABB’s robotic controllers.

Product Specifications

The table below outlines the key technical parameters of the DSQC 541 3HAC14363-1:

Product Applications

The DSQC 541 is designed for seamless integration into industrial environments, including:

• Robotic Control Systems: Used in ABB robots for precise I/O signal handling.

• Automated Production Lines: Facilitates communication between PLCs and robotic arms.

• Material Handling: Ensures efficient signal transmission in conveyor systems.

• Packaging Machinery: Provides reliable input/output control for packaging automation.

• Welding Systems: Supports high-speed signal processing in welding applications.

Product Advantages

1. High Reliability: Built to withstand harsh industrial conditions.

2. Easy Integration: Compatible with ABB’s robotic controllers and third-party systems.

3. Compact Design: Saves space in control cabinets.

4. Fast Response Time: Optimized for real-time industrial automation.

5. Scalability: Supports modular expansion for larger systems.

Frequently Asked Questions (FAQ)

1. What is the operating voltage of the DSQC 541?

   The module operates at 24V DC with a ±10% tolerance.

2. Can this module be used with non-ABB controllers?

   Yes, it supports DeviceNet communication, making it compatible with third-party systems.

3. What is the protection rating of the DSQC 541?

   It has an IP20 rating, suitable for indoor industrial use.

4. How many I/O points does it support?

   It provides 16 digital inputs and 16 digital outputs.

5. Is the module DIN rail mountable?

   Yes, it can be mounted on a DIN rail or directly on a panel.

6. What is the weight of the DSQC 541?

   The module weighs 0.5 kg.

7. What are the temperature limits for storage?

   It can be stored between -25°C and +70°C.

8. Does it support real-time signal processing?

   Yes, it is optimized for fast response times in automation systems.

9. Can I expand the I/O capacity?

   Yes, additional modules can be added for scalability.

10. Is the DSQC 541 suitable for welding applications?

    Yes, it is commonly used in welding systems for signal control.
