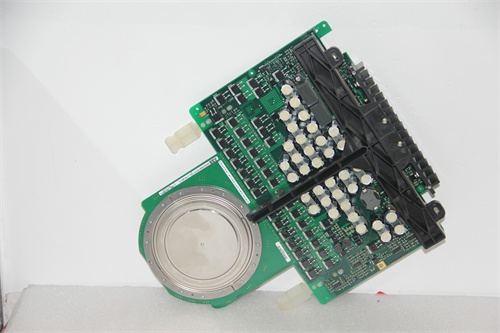

ABB 5SHY35L4520 5SXE10-0181 AC10272001R0101 Product Overview

ABB 5SHY35L4520 5SXE10-0181 AC10272001R0101 is a high-performance module designed for high-voltage direct current(HVDC)applications.The following is a detailed introduction to the module.

Basic information

Brand:ABB

Model:5SHY35L4520 5SXE10-0181 AC10272001R0101

Origin:Switzerland

Technical specifications

Rated voltage:6500V

Rated current:1000A

Switching loss:5.0J

Conduction loss:2.5V

Switching frequency:2kHz

Junction temperature:175°C

Weight:15 kg(some information indicates that the weight is 2KG,but 15 kg is more common,which may vary depending on the specific model or configuration)

Dimensions:Length 300 mm,width 250 mm,height 150 mm

Performance characteristics

High efficiency and high power density:The module has excellent efficiency and high power density,suitable for high-power applications,and can provide efficient energy conversion.

High reliability and stability:The module adopts advanced digital signal processing technology,with high-speed computing and response capabilities,which can achieve fast fault detection and protection action.High reliability and stability ensure normal operation in harsh power systems or industrial environments.

Fast fault detection and protection:Rapid detection and protection of abnormal conditions such as current,voltage,frequency,phase sequence,short circuit,overvoltage,etc.,support fault recording and event log functions,and facilitate fault analysis and system optimization.

Multiple communication interfaces and protocols:Support multiple communication interfaces and protocols(such as IEC 61850,Modbus,etc.),can communicate and integrate with other devices to achieve system monitoring and data exchange.

Flexible scalability and configuration options:Users can perform logic programming and parameter settings according to actual needs to achieve personalized protection and control functions.

Low conduction and turn-off losses:Helps improve system efficiency and reduce energy consumption.

Integrated drive circuit:Simplifies the design and control of external drive circuits.

Multiple protection functions:Equipped with multiple protection functions such as overcurrent,overheating,overvoltage,etc.to ensure the safe operation of equipment and systems.

Application fields

This module is widely used in the following fields

Analog:Used for high-voltage DC control in analog circuits.

Instrumentation:Provides precise high-voltage DC power supply and control in instrumentation.

Industrial Control:Precise control of high-voltage DC motors in industrial control systems.

Process Control and Monitoring:Used for high-voltage DC power management in process control and monitoring systems.

Factory Automation:As a high-voltage DC power supply and control module in factory automation systems.

Intelligent Networked PLC Controller:Used in conjunction with intelligent networked PLC controllers to achieve remote monitoring and control of automation systems.

Automatic Test and Data Acquisition:Provides stable high-voltage DC power in automatic test and data acquisition systems.
