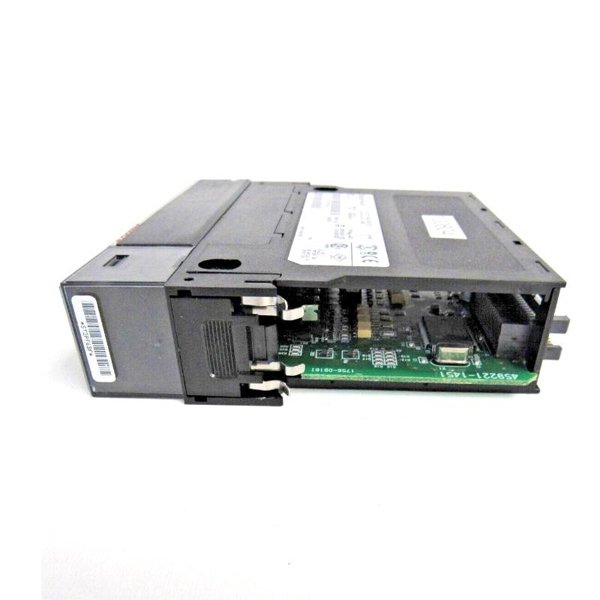

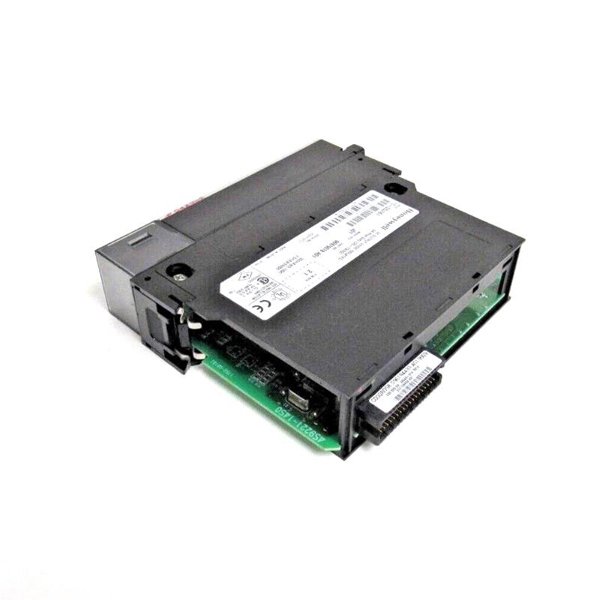

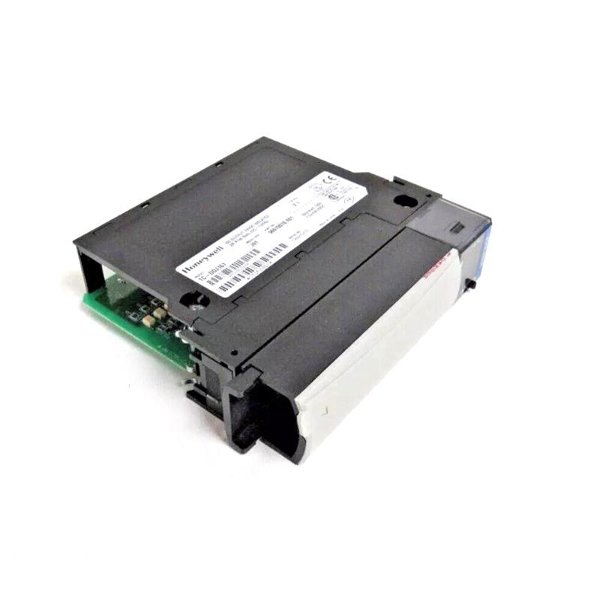

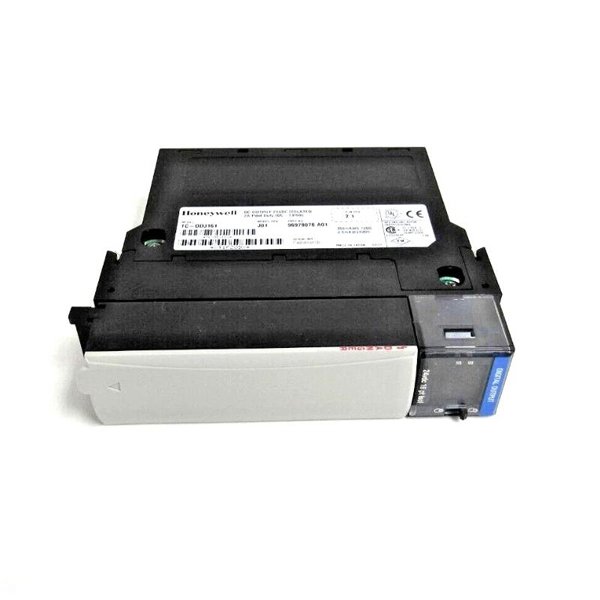

Honeywell TC-ODJ161 96979078 A01 Experion LS Digital Output Module
Manufacturer:Honeywell
Product Number:TC-ODJ161 96979078 A01
Product Type:Experion LS Digital Output Module
Origin:USA
Dimensions:38 × 57 × 78 mm
Weight:0.33kg
Views:63
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Honeywell TC-ODJ161 is a 24 VDC isolated digital output module designed for the Experion LS Series-A I/O platform. It provides robust control capabilities in industrial automation environments, enabling reliable switching of digital signals to field devices.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | TC-ODJ161 |
| Description | Digital Output Module (Isolated) |
| Output Type | 24 VDC Discrete Outputs (Isolated) |
| Number of Output Points | 16 |
| Output Voltage Range | 10–30 VDC |
| Output Current Rating | 0.5 A per channel |
| Output Delay (Off to On) | ≤ 1 ms |
| Output Delay (On to Off) | ≤ 1 ms |
| Isolation Voltage | 250V (User to system) |
| Terminal Block | TC-TBCH (36-pin) |
| Power Dissipation | 6.5 W max |
| Dimensions (L×W×H) | 38 × 57 × 78 mm |
| Weight | 0.33 kg |
Applications
-
Industrial process control
-
Factory automation systems
-
Discrete output control for actuators and solenoids
-
Machine control panels
-
Remote terminal operations
Advantages
Electrical Isolation: Ensures channel-to-system and inter-channel isolation for enhanced safety and performance.
Compact Design: Small footprint with 16 outputs in a single-wide chassis slot.
Fast Switching: Sub-millisecond response times improve real-time control performance.
DIN-rail Compatible: Easy integration with Remote Terminal Panels (RTPs).
High Reliability: Designed for continuous industrial operation with robust protection features.
FAQs
Q1: What is the output voltage range of the TC-ODJ161?
A1: The module supports 10–30 VDC output.
Q2: How many outputs does the module support?
A2: It provides 16 isolated digital output channels.
Q3: Can the module be used in hazardous locations?
A3: Yes, with proper installation and enclosure ratings per industrial standards.
Q4: What terminal block type does it require?
A4: It uses the 36-pin TC-TBCH terminal block.
Q5: What is the max load current per output?
A5: 0.5 A per channel.
Q6: Does it support “Removal and Insertion Under Power”?
A6: Yes, but only in non-hazardous locations.
Q7: Is the module suitable for redundant systems?
A7: Yes, when used with compatible chassis and C200E processors.
Q8: What is the switching delay time?
A8: Both OFF to ON and ON to OFF delays are typically ≤ 1 ms.
Q9: Is external field power required?
A9: Yes, field devices are powered externally.
Q10: What protection features does it offer?
A10: Short-circuit protection and electrical isolation are built in.
