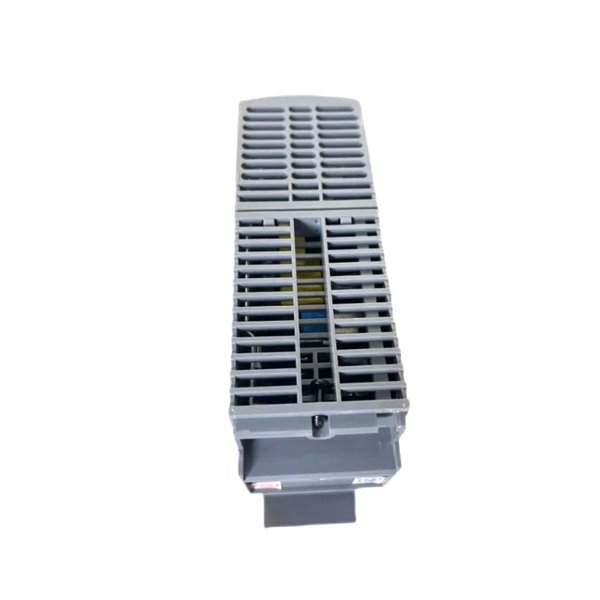

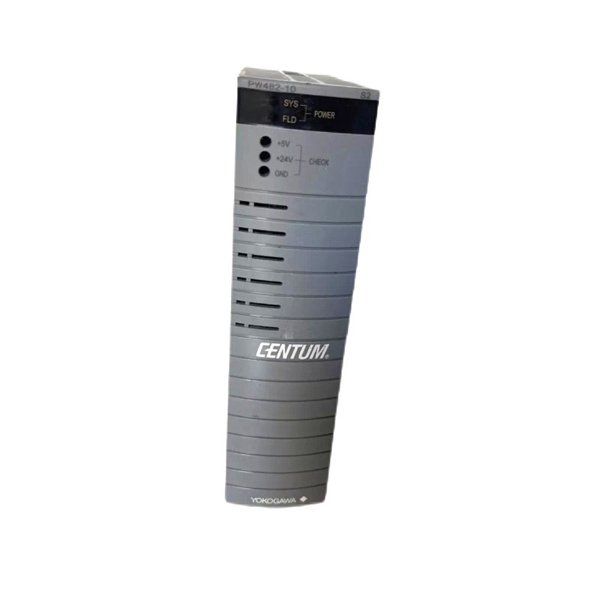

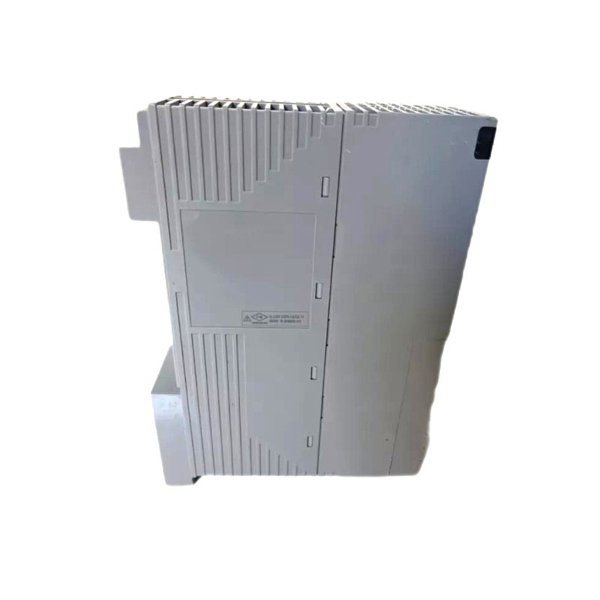

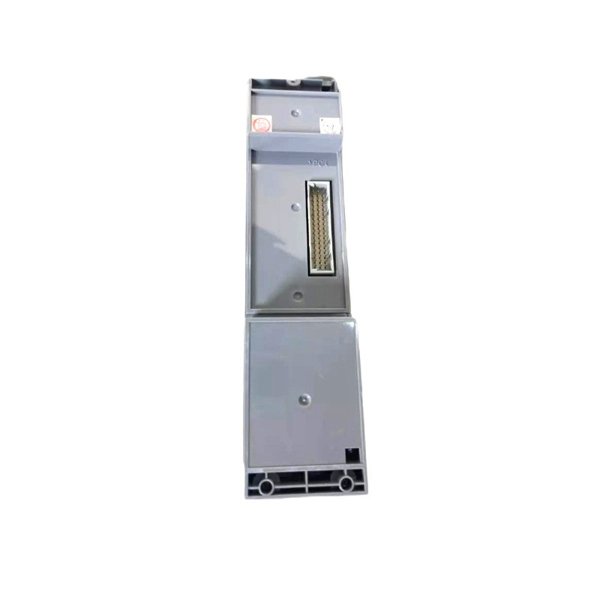

Yokogawa PW482 Power Supply Module

The Yokogawa PW482 power supply module is a robust and high-performance solution designed to meet the diverse power requirements of modern industrial systems. Built to provide a stable and reliable power source, the PW482 supports a wide range of equipment, including automation systems, process control devices, and instrumentation. Its advanced design ensures the continuous operation of industrial systems, reducing downtime and preventing costly maintenance interruptions.

The PW482 is particularly suited for applications that demand high reliability and consistent power delivery. With a wide input voltage range and a compact, durable design, this power supply module is ideal for a variety of industries, including manufacturing, oil and gas, chemical processing, and energy management. It also features high protection standards, making it a safe and effective power solution for powering critical systems that require precise, uninterrupted operation.

With easy installation and minimal maintenance, the PW482 ensures that industrial operations remain smooth and efficient, supporting devices such as PLCs (Programmable Logic Controllers), motors, drives, sensors, and other essential control equipment.

Product Specifications

Product Applications

The Yokogawa PW482 power supply module is highly versatile and suitable for a broad range of industrial applications. Some of the key uses include:

1. Industrial Automation Systems: The PW482 provides stable and efficient power to PLCs, HMIs (Human-Machine Interfaces), sensors, and I/O modules, ensuring continuous operation in automated manufacturing environments.

2. Process Control Systems: In industries such as oil and gas, chemical, and petrochemical, the PW482 ensures reliable power to control systems, maintaining smooth and uninterrupted processes.

3. Instrumentation: The PW482 is used to power instrumentation systems, ensuring that all measurement devices, transmitters, and sensors remain operational without any interruptions.

4. Machine Control: In machine control applications, the PW482 provides essential power to drives, motors, and other mechanical components, helping ensure optimal performance and operational reliability.

5. Energy Management Systems: The module is used in energy management systems to monitor and manage power consumption in large industrial plants, helping optimize energy usage.

6. HVAC Systems: The PW482 powers components in heating, ventilation, and air conditioning systems in industrial settings, contributing to energy efficiency and performance.

7. Renewable Energy Systems: The PW482 is suitable for use in renewable energy applications, powering controllers, monitoring systems, and other critical components in solar, wind, and other renewable energy projects.

Product Advantages

1. High Efficiency: The PW482 boasts an efficiency rating of over 90%, which helps reduce energy consumption and lower operational costs, making it a cost-effective choice for industrial systems.

2. Wide Input Voltage Range: The PW482 accepts input voltages from 100-240 V AC, making it adaptable to different electrical systems worldwide.

3. Built-in Protection: The PW482 includes multiple protection features, including overcurrent, overvoltage, overtemperature, and short-circuit protection, ensuring both the power supply and connected systems are safe from electrical faults.

4. Compact Design: With compact dimensions of 49.7 x 199.5 x 149 mm and a weight of 1 kg, the PW482 fits into tight spaces within control panels and other industrial enclosures without compromising on performance.

5. Natural Convection Cooling: The PW482 uses natural convection cooling, meaning it operates quietly without the need for fans or active cooling systems, reducing noise and maintenance costs.

6. Durable and Reliable: Designed for industrial environments, the PW482 features high-quality materials and a rugged build, ensuring reliable performance over time and reducing the need for frequent repairs or replacements.

7. Temperature Tolerance: The PW482 is designed to operate in a wide temperature range from -10°C to +55°C, making it suitable for a variety of industrial environments, including extreme temperatures.

8. Low Maintenance: Due to its rugged construction and natural cooling, the PW482 requires minimal maintenance, reducing downtime and helping maintain system availability.

9. Easy Installation: The compact size and flexible mounting options make the PW482 easy to install in a wide variety of applications, ensuring quick and efficient deployment in control systems.

10. Certified for Safety: The PW482 is UL, CE, and RoHS certified, ensuring compliance with global safety and environmental standards.

Frequently Asked Questions (FAQ)

1. What is the output voltage of the Yokogawa PW482?

   The PW482 provides a nominal output voltage of 24 V DC.

2. What is the maximum output current of the PW482?

   The PW482 can supply up to 4.2 A of output current.

3. What is the input voltage range for the PW482?

   The PW482 operates with an input voltage range of 100-240 V AC.

4. What protection features are included in the PW482?

   The PW482 has overcurrent, overvoltage, overtemperature, and short-circuit protection.

5. How does the PW482 cool itself?

   The PW482 uses natural convection cooling, meaning it does not require additional cooling fans or systems.

6. What is the weight of the Yokogawa PW482?

   The PW482 weighs 1 kg.

7. Can the PW482 be used in extreme temperatures?

   Yes, the PW482 operates within a temperature range of -10°C to +55°C.

8. What industries benefit from the use of the PW482?

   The PW482 is widely used in industrial automation, process control, energy management, instrumentation, and HVAC systems.

9. Is the PW482 easy to install?

   Yes, the PW482 is designed for easy installation, with flexible mounting options and compact dimensions.

10. Is the PW482 certified?

    Yes, the PW482 is certified with UL, CE, and RoHS, ensuring compliance with global safety and environmental standards.
