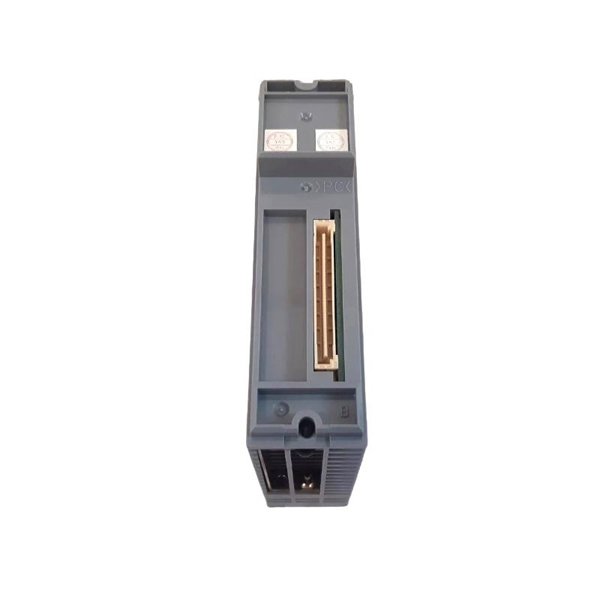

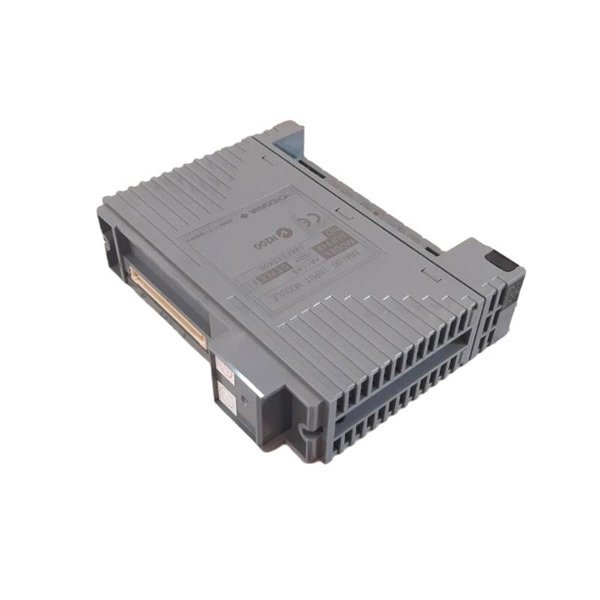

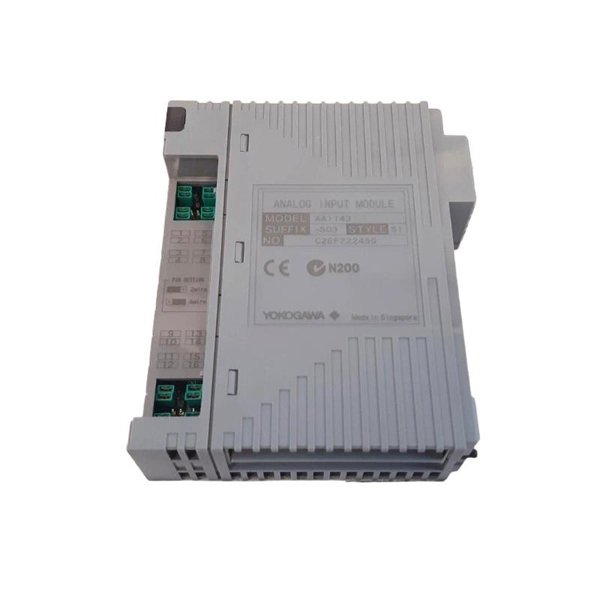

Yokogawa AAI143-S03 Analog Input Module

The Yokogawa AAI143-S03 is a 16-channel analog input module specifically engineered for integration within the CENTUM VP and CENTUM CS 3000 distributed control systems (DCS). It is designed for precise and reliable acquisition of analog process signals, ensuring seamless communication between field instruments and control systems.

This model is optimized for standard 4–20 mA DC signals, and unlike HART-enabled variants, it focuses on cost-effective high-density signal acquisition without the additional overhead of digital communication protocols. This makes it particularly well-suited for systems where HART communication is unnecessary, but reliable signal input and high system performance are essential.

Built with industry-grade robustness, the AAI143-S03 supports high-speed data processing, signal integrity, and diagnostic capabilities, contributing to reduced downtime, greater control accuracy, and extended system scalability.

Product Specifications

Product Applications

The AAI143-S03 is widely used in process automation and control systems where reliable analog signal acquisition is essential, but HART communication is not required. This makes it a cost-efficient choice for core industrial automation functions, such as:

• Oil & gas plant automation

• Chemical and petrochemical processing

• Power generation facilities

• Pulp and paper industries

• Water and wastewater treatment

• Steel and metal processing

• Batch control in pharmaceuticals

Product Advantages

• High-Density Analog Input

  With 16 input channels, the module allows for efficient signal collection from multiple transmitters, reducing module count and wiring complexity.

• Robust Signal Isolation

  Optical isolation ensures electrical noise and signal interference are minimized, enhancing system stability and integrity.

• Accurate and Fast Conversion

  A 16-bit resolution and fast 100 ms data refresh rate support precise monitoring of process variables.

• Cost-Efficient Architecture

  The S03 model excludes HART features, offering a streamlined and budget-friendly option for analog input in environments where smart communication is unnecessary.

• Seamless Integration

  Fully compatible with Yokogawa’s CENTUM VP/CS 3000 systems, ensuring effortless hardware and software integration.

• Built-in Diagnostics

  Internal monitoring functions alert the control system of signal anomalies, allowing operators to react to wiring faults or instrument failures in real time.

• Environmental Durability

  Supports wide operating temperatures and relative humidity, suitable for rugged industrial installations.

FAQ

1. Does the AAI143-S03 module support multi-channel simultaneous input?

   Yes, all 16 channels can receive inputs simultaneously; each is independently processed.

2. How does the module handle over-range or under-range signals?

   It features internal detection that flags such conditions to the DCS for safety and diagnostics.

3. Is the AAI143-S03 compatible with non-standard 4–20 mA devices?

   It is optimized for standard 4–20 mA signals; non-standard inputs may require signal conditioning.

4. Can the module detect open circuits in the input loop?

   Yes, open input circuit detection is built-in to ensure timely fault identification.

5. Is there internal averaging or filtering applied to signal inputs?

   Basic digital filtering is performed to ensure signal stability; advanced processing is handled by the DCS.

6. Does the module require external power for field inputs?

   Field transmitters require external loop power; the module itself is powered via the baseplate.

7. What is the input impedance of each channel?

   Each input has a typical resistance of 250 ohms.

8. Is it possible to replace this module online without shutting down the system?

   Hot-swapping may be supported depending on system configuration and redundancy setup.

9. Can it be used in SIL-rated applications?

   While the module itself is not SIL-rated, it can be part of a SIL-certified system if applied correctly.

10. How is grounding managed for input channels?

    The module uses floating inputs with isolation; proper grounding practices should still be observed at the cabinet level.
