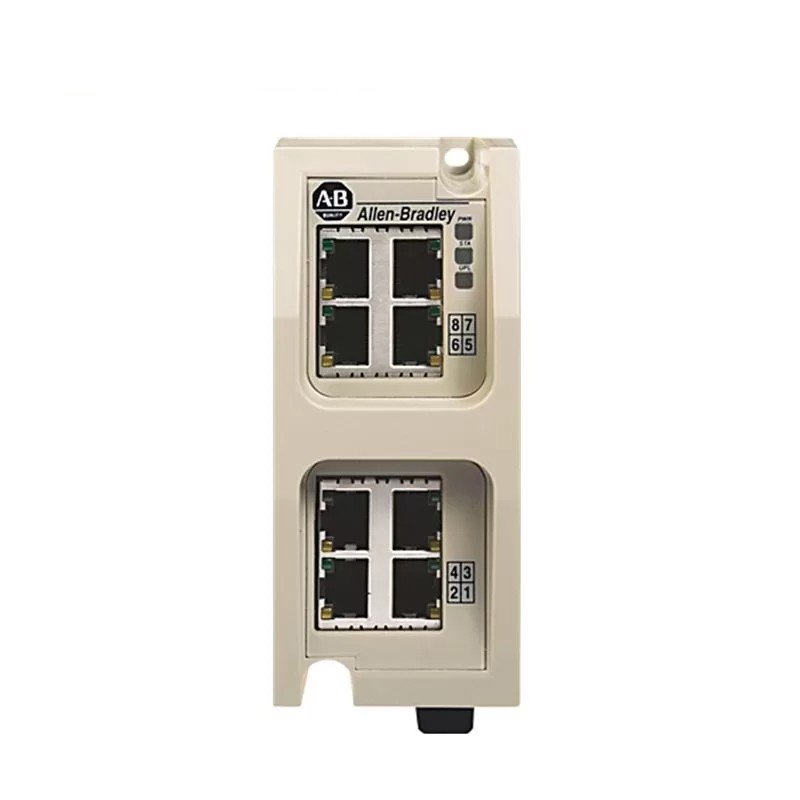

Allen-Bradley 1783-EMS08T Managed Ethernet Switch

The Allen-Bradley 1783-EMS08T is a managed Ethernet switch tailored for industrial automation. It ensures robust connectivity and reliable performance. This switch is ideal for constructing high-speed, deterministic networks in industrial control systems.

Key Features

• Managed Ethernet: Provides advanced network management with VLANs, QoS, and security features.
• High-Speed Connectivity: Offers 8 copper 10/100 Mbps ports and 1 Gigabit SFP slot for flexible network configurations.
• Industrial-Grade Design: Designed to endure harsh industrial environments with a wide operating temperature range and rugged construction.
• Compact Form Factor: Fits into space-constrained installations, integrating seamlessly into control panels.
• Interoperability: Works with a broad range of Allen-Bradley controllers and devices for easy system integration.

Technical Specifications

• Ports:
  • 8 x 10/100 Mbps copper ports
  • 1 x Gigabit SFP slot
• Power:
  • 12-48V DC, Class 2/SELV
  • 250 mA @ 24V DC
• Power Dissipation:
  • 5.8 W @ 60 °C (140 °F) max
• Fiber Optic Ethernet Data Rate: 1000 Mbps
• Fiber Optic Connector Type: LC
• Mounting: DIN rail or panel mount

Applications

• Machine Automation: Connects PLCs, HMIs, and other devices on the factory floor.
• Process Control: Builds high-performance networks for process control systems.
• Motion Control: Ensures reliable connectivity for motion control applications.
• Safety Systems: Integrates safety devices into the network.

Benefits

• Improved Network Performance: Delivers high-speed, low-latency communication for critical applications.
• Enhanced Network Management: Features advanced tools for network monitoring and troubleshooting.
• Increased Reliability: Withstands harsh environments, ensuring continuous operation.
• Simplified Integration: Easily integrates into existing Allen-Bradley systems.
