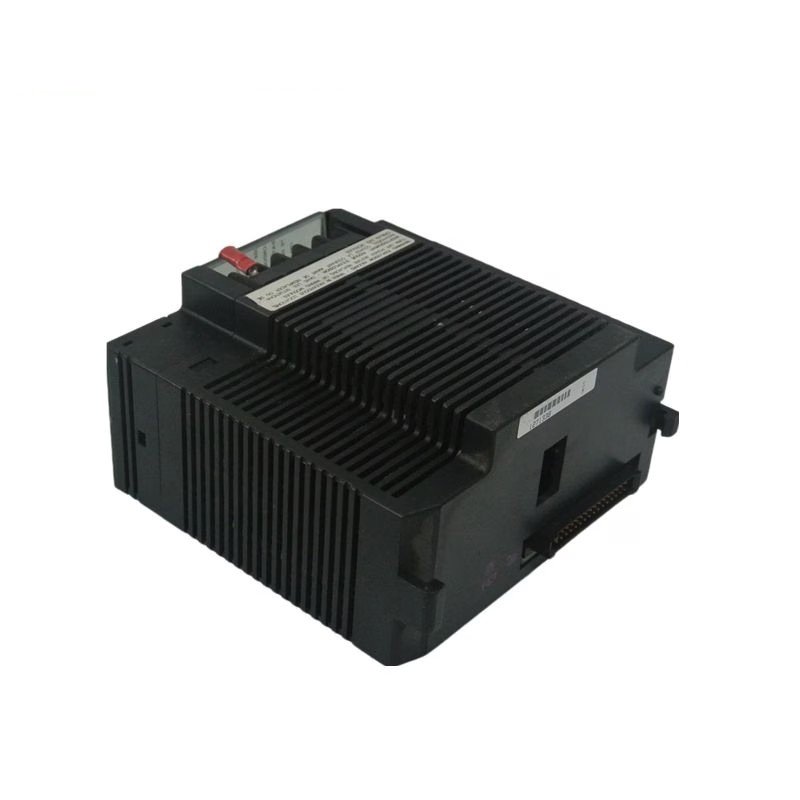

GE Fanuc IC693PWR322E Power Supply Module
Manufacturer:General Electric
Part Number:IC693PWR322E
Product Type:Power Supply Module
Stock:IN STOCK
Repair:3-7 Day
Warranty:1 Year
Dimensions:243 mm x 317 mm x 77 mm
Weight:0.36 kg
Product Description
The GE Fanuc IC693PWR322E is a power supply module for the Series 90-30 PLC system. It provides essential power to the system’s CPU and other modules. The module is designed for industrial automation environments, offering reliable operation and protection against electrical faults. It is installed in the leftmost slot of the PLC baseplate and supports RS-485 communication for data transfer.
Technical Specifications
- Nominal Rated Voltage: 24 or 48 VDC
- Input Voltage Range: 21 to 56 VDC
- Input Power: 50W at full load
- Output Power:
- 15W @ +5VDC
- 15W @ +24VDC (Relay)
- 20W @ +24VDC (Isolated)
- Inrush Current: 4A peak, 100ms maximum
- Operating Frequency: 50/60 Hz
- Protection: Smart switch fusing for short circuit protection
- Communication: RS-485 serial port
- Weight: 0.36 kg
