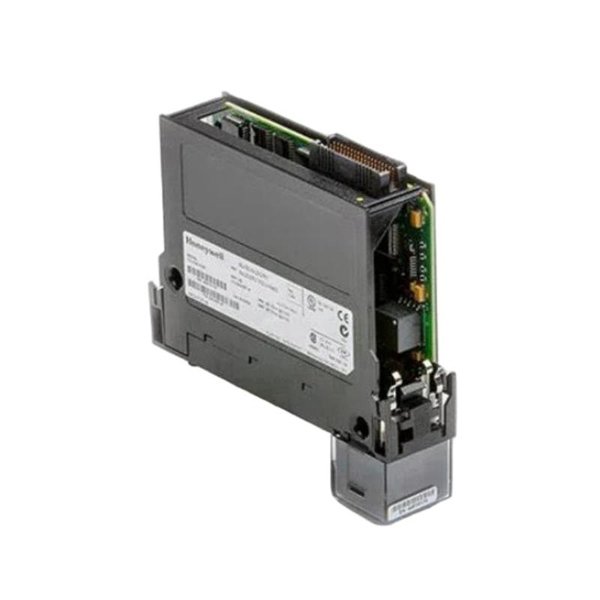

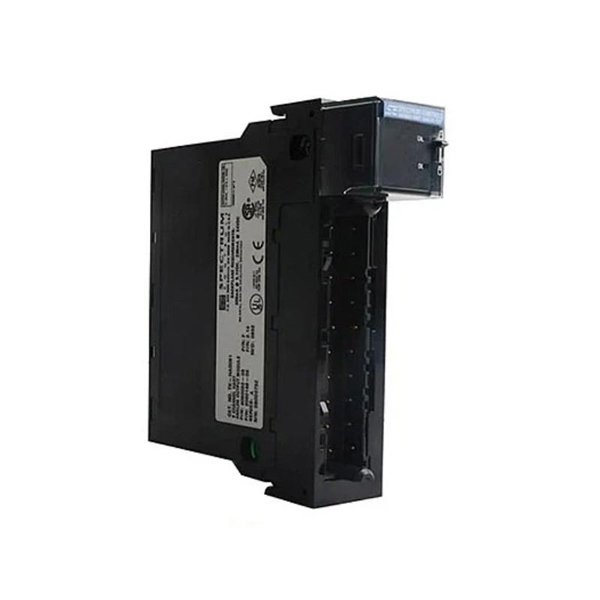

Honeywell TC-HAI081 8-channel Analog Input Module

The Honeywell TC-HAI081 8-channel Analog Input Module is designed for the HC900 and related Honeywell process control systems. It provides precise analog input channels for monitoring field signals such as temperature, pressure, flow, and level sensors. This module enables accurate data acquisition for real-time process monitoring and control, ensuring high system reliability and integration with other HC900 modules. Its robust design ensures consistent performance even in harsh industrial environments.

Key Features

• Provides 8 precise analog input channels

• Compatible with Honeywell HC900 process control systems

• Supports various signal types including 4–20 mA, 0–20 mA, and voltage inputs

• Real-time data acquisition for accurate process monitoring

• Robust design for reliable operation in industrial conditions

• Simplifies system integration and maintenance

• Includes status and error indicators for easy diagnostics

Technical Specifications

Industry Applications

• Oil & Gas: Monitor pressure, temperature, and flow sensors

• Power Generation: Accurate data acquisition from process instruments

• Chemical & Petrochemical: Process monitoring for critical operations

• Water & Wastewater: Measurement of level, flow, and chemical dosing

• Food & Beverage: Real-time control of production parameters

• Pulp & Paper: Process optimization using accurate sensor inputs

Frequently Asked Questions (FAQ)

Q1: What is the main function of the TC-HAI081 module?

It provides 8 precise analog input channels for monitoring field sensors in Honeywell control systems.

Q2: How many input channels does it support?

It supports 8 configurable analog input channels.

Q3: What types of input signals are supported?

4–20 mA, 0–20 mA, 0–10 V, and other configurable voltage signals.

Q4: What is the operating temperature range?

0°C to 55°C.

Q5: What are the module dimensions?

150 mm × 200 mm × 50 mm.

Q6: How much does the module weigh?

Approximately 0.2 kg.

Q7: Can it integrate with other Honeywell HC900 modules?

Yes, it fully integrates with HC900 controller systems.

Q8: What indicators are included?

Channel status and error LEDs for monitoring and diagnostics.

Q9: Is it suitable for industrial environments?

Yes, it is designed for reliable operation under harsh industrial conditions.

Q10: Can it support real-time process monitoring?

Yes, it provides real-time acquisition of analog signals for accurate monitoring.
