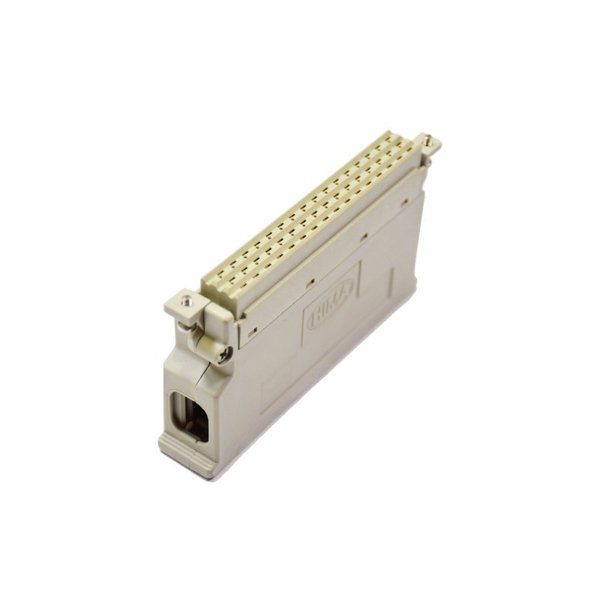

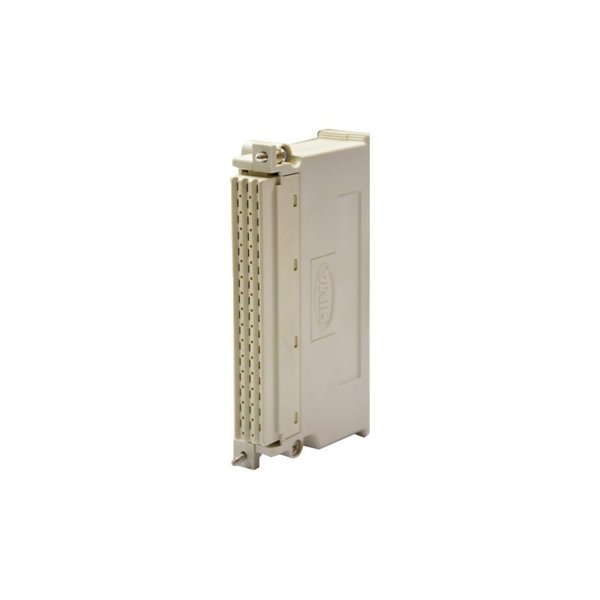

Hima Z7008/3238/Ex/C8 Cable Plug

The HIMA Z7008/3238/Ex/C8 Cable Plug is a robust industrial connector designed specifically for use in safety-critical automation systems. Manufactured by HIMA, a global leader in safety instrumented systems, this cable plug provides a reliable interface for connecting cables in harsh and hazardous environments, particularly those requiring explosion protection.

Built to withstand demanding industrial conditions, the Z7008/3238/Ex/C8 ensures secure electrical connections with optimal shielding and corrosion resistance. This plug is frequently used in conjunction with HIMA’s safety controllers and field devices to maintain high safety integrity and operational reliability.

Product Specifications

Applications

• Safety Instrumented Systems (SIS): Used extensively in connection to HIMA safety controllers to ensure fail-safe signal transmission.

• Hazardous Areas: Suitable for Zone 1 and Zone 2 explosive atmospheres where explosion-proof connectors are mandatory.

• Process Automation: Common in petrochemical, oil & gas, and chemical industries where secure cable connections in tough environments are essential.

• Power Plants: Used in safety-related instrumentation for turbine and generator control wiring.

• Marine and Offshore: Applied in hazardous zones on rigs and ships requiring ATEX-certified cabling solutions.

• Heavy Industry: In any environment where vibration, moisture, and corrosion resistance are required for reliable connections.

Product Advantages

• Explosion-Proof Certification: Fully compliant with ATEX standards, enabling safe use in explosive atmospheres.

• High Durability: Constructed with nickel-plated brass to resist corrosion, mechanical shock, and harsh chemical exposure.

• Secure Connection: Screw-locking mechanism ensures vibration-resistant mating for continuous operation.

• High IP Rating: Rated IP67, the plug is dust-tight and water-resistant, suitable for outdoor and wet environments.

• Compact Design: Enables installation in confined spaces without sacrificing performance.

• Reliable Contact Integrity: Gold-plated contacts reduce signal loss and ensure stable electrical connectivity.

• Wide Temperature Range: Suitable for demanding temperature conditions, maintaining performance from -40°C to +85°C.

• Easy Installation: Standard Pg cable gland entry simplifies cable fixation and strain relief.

• Compatibility: Designed to match with corresponding HIMA connectors and cables for seamless integration.

• Long Service Life: Engineered for many mating cycles without degradation in connection quality.

Frequently Asked Questions (FAQ)

1. What type of connector is the HIMA Z7008/3238/Ex/C8?

   It is a circular 8-pin cable plug designed for industrial safety systems.

2. Is this cable plug suitable for hazardous environments?

   Yes, it is ATEX certified for explosion protection in Zone 1 and Zone 2 areas.

3. What is the operating temperature range?

   The plug operates reliably between -40°C and +85°C.

4. What is the protection rating of the plug?

   It is rated IP67, meaning it is dust-tight and protected against water immersion up to 1 meter.

5. How is the cable secured in the plug?

   The plug uses a Pg 13.5 cable gland for secure cable fixation and strain relief.

6. Can the plug handle high current loads?

   Yes, it is rated for up to 10 A and 250 V AC/DC.

7. What materials are used for the plug housing and contacts?

   The housing is nickel-plated brass, and the contacts are gold-plated copper alloy.

8. Is this plug compatible with other HIMA connectors?

   Yes, it is designed to mate with corresponding HIMA cable sockets and connectors.

9. How resistant is the plug to mechanical shock and vibration?

   It features a screw-locking mechanism and rugged housing to ensure connection stability under vibration and shock.

10. What cable diameter range does this plug support?

    It supports cables with diameters ranging from 7 to 12 mm.
