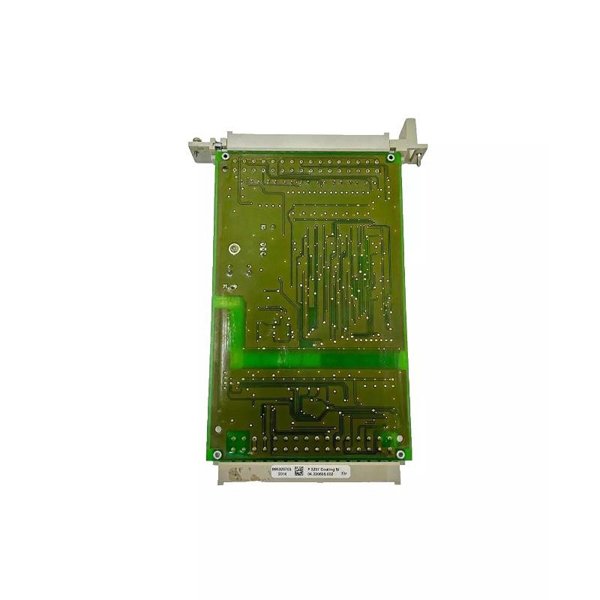

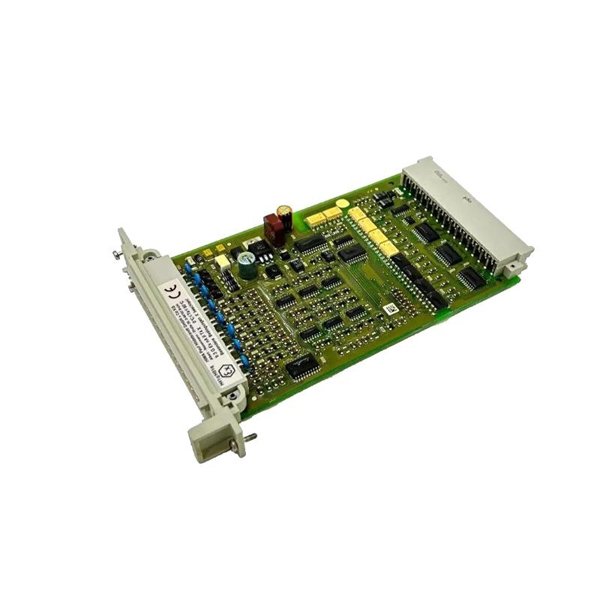

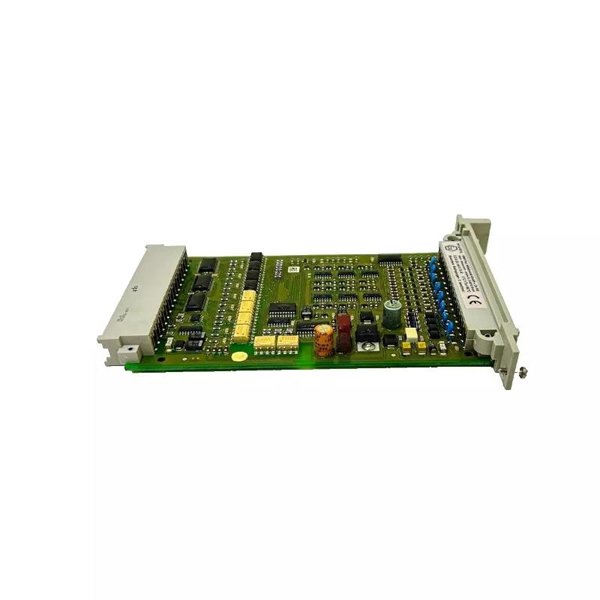

Hima F3237 8 Channel Safety Related Input Module

The HIMA F3237 is an 8-channel safety-related input module designed to provide high integrity and reliability for industrial automation systems. As part of the HIMA safety-related system family, the F3237 module is engineered to handle critical safety inputs from various industrial sensors, switches, and devices in environments where failure can result in significant safety risks. This module is widely used in process industries where safety is paramount, including the oil and gas, chemical, power generation, and manufacturing sectors.

The F3237 offers flexible integration capabilities and robust performance, ensuring that safety-critical systems remain operational and responsive. It processes discrete digital input signals and is designed to meet the highest safety standards, including IEC 61508, ISO 13849, and other relevant safety certifications. It integrates seamlessly into HIMA’s fault-tolerant safety systems, providing efficient and effective solutions for applications requiring high levels of safety integrity.

Product Specifications

The following are the detailed specifications of the HIMA F3237 8-Channel Safety Related Input Module:

Product Applications

The HIMA F3237 8-Channel Safety Related Input Module is ideally suited for applications in industrial control systems that require high safety integrity and real-time input processing. It is used for monitoring and controlling critical safety functions in environments where failure is not an option. Some of the main applications include:

• Safety Instrumented Systems (SIS): The module is a vital component in safety instrumented systems where it ensures the reliable and accurate processing of inputs from safety-critical devices.

• Emergency Shutdown Systems (ESD): Used in systems that need to shut down processes quickly in the event of an emergency, such as in chemical plants, oil rigs, or power generation stations.

• Machine and Process Control: Provides safe monitoring of machine status, sensors, switches, and other discrete input devices that are integral to the operation of automated control systems.

• Process Automation: The module is widely used in process control systems where real-time data processing from sensors, actuators, and safety switches is critical for system optimization.

• Hazardous Area Monitoring: In environments where industrial equipment must meet strict safety regulations (e.g., chemical plants or refineries), the F3237 ensures the safe monitoring of digital inputs from potentially hazardous areas.

• Industrial Control Systems: Integrated into large-scale control systems to monitor inputs from sensors, alarms, and other safety-critical devices.

Product Advantages

The HIMA F3237 8-Channel Safety Related Input Module offers several advantages for industries and applications requiring high safety and reliability:

• High Safety Integrity: Designed to meet the highest safety standards, including IEC 61508, the F3237 ensures maximum reliability for safety-critical applications, offering excellent fail-safety and diagnostic capabilities.

• Compact and Space-Saving: With its compact design (120 mm x 130 mm x 75 mm), the module is easy to integrate into tight spaces, making it ideal for installations where space is limited.

• Fast Response Time: With a fast response time of ≤ 10 ms, the module ensures immediate processing of input signals, helping to reduce response time and improve overall system performance.

• Energy Efficient: The module operates with a low power consumption of 2.5 W, making it highly energy-efficient and reducing operational costs.

• Wide Temperature Range: The F3237 module is designed to operate in a wide temperature range of -40°C to +70°C, allowing it to be used in a variety of industrial environments, from cold storage facilities to high-temperature production lines.

• Durable and Robust: The module is shock-resistant (15g) and vibration-resistant (2g), making it ideal for use in harsh industrial environments that experience mechanical stress or environmental challenges.

• Easy Integration: With screw terminal connections, the F3237 module is straightforward to install and integrate into existing control systems, allowing for a seamless setup.

• Comprehensive Certifications: The module is CE, UL, and CSA certified, ensuring that it meets global safety and quality standards and can be used worldwide in various industrial applications.

• Scalable and Flexible: The module’s eight channels provide scalability, allowing it to monitor multiple input signals while offering flexibility for complex safety systems.

• Versatile Applications: The F3237 is suitable for a wide range of applications in industries like petrochemical, power generation, and manufacturing, where safety and reliability are crucial.

FAQ

1. What is the primary function of the HIMA F3237 module?

   • The F3237 is a safety-related input module that processes 8 discrete digital input signals for safety-critical applications in industrial control systems.

2. What is the operating voltage range for the module?

   • The module operates within a voltage range of 24V DC ± 20%.

3. How many input channels does the module have?

   • The F3237 module provides 8 input channels.

4. What is the response time of the F3237?

   • The response time is ≤ 10 milliseconds, ensuring rapid processing of input signals.

5. Can this module be used in hazardous environments?

   • Yes, the F3237 is designed for use in hazardous environments, such as oil & gas and chemical plants, where safety and reliability are critical.

6. What certifications does the F3237 module have?

   • The module is CE, UL, and CSA certified, meeting the global safety and quality standards.

7. What is the power consumption of the F3237?

   • The power consumption of the F3237 is 2.5W.

8. What is the operating temperature range for the module?

   • The module operates in a temperature range from -40°C to +70°C.

9. How is the F3237 module mounted?

   • The F3237 module is rail mountable, making it easy to install in control cabinets.

10. Can the module withstand mechanical stress or vibration?

• Yes, the module is designed to withstand shock resistance (15g) and vibration resistance (2g) during operation.
