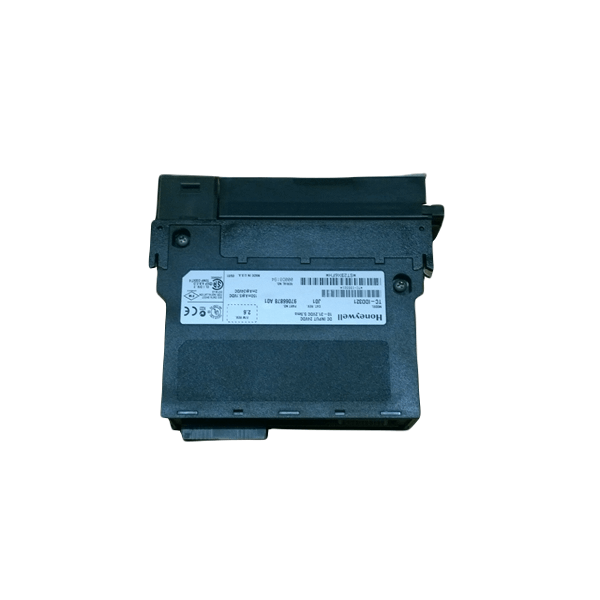

Honeywell TC-IDD321 Experion LS I/O Specifications
Manufacturer: Honeywell
Product No.: TC-IDD321
Product Type: Experion LS I/O Specifications
Number of Inputs: 32 (16 points/common)
Nominal Input Voltage: 24 VDC
On-State Current (Minimum): 2 mA
Off-State Voltage (Maximum): 5 V
Off-State Current (Maximum): 1.5 mA P
Ower Dissipation: 6.1 W max
Input Compatibility: IEC Type 1+
Shipping Weight: 2 Kg
Warranty :12 months
Product Description
Honeywell TC-IDD321 is a 32-channel discrete input module that is compatible with the Experion LS I/O system. It is a high-performance module that offers a wide range of features and benefits, including:
- 32 discrete inputs (16 points/common)
- Nominal input voltage: 24 VDC
- On-state current (minimum): 2 mA
- Off-state voltage (maximum): 5 V
- Off-state current (maximum): 1.5 mA
- Isolation voltage: 1500 VDC
- Input delay time: 0, 1, or 2 ms
- Power dissipation: 6.1 W max
- Short/inrush current: 250 mA peak
- Input compatibility: IEC Type 1+
- Connection terminal blocks: TC-TBCH, 36-position terminal block
Loading comments...
Honeywell TC-IDD321 Experion LS I/O Specifications
Manufacturer: Honeywell
Product No.: TC-IDD321
Product Type: Experion LS I/O Specifications
Number of Inputs: 32 (16 points/common)
Nominal Input Voltage: 24 VDC
On-State Current (Minimum): 2 mA
Off-State Voltage (Maximum): 5 V
Off-State Current (Maximum): 1.5 mA P
Ower Dissipation: 6.1 W max
Input Compatibility: IEC Type 1+
Shipping Weight: 2 Kg
Warranty :12 months
Product Description
Honeywell TC-IDD321 is a 32-channel discrete input module that is compatible with the Experion LS I/O system. It is a high-performance module that offers a wide range of features and benefits, including:
- 32 discrete inputs (16 points/common)
- Nominal input voltage: 24 VDC
- On-state current (minimum): 2 mA
- Off-state voltage (maximum): 5 V
- Off-state current (maximum): 1.5 mA
- Isolation voltage: 1500 VDC
- Input delay time: 0, 1, or 2 ms
- Power dissipation: 6.1 W max
- Short/inrush current: 250 mA peak
- Input compatibility: IEC Type 1+
- Connection terminal blocks: TC-TBCH, 36-position terminal block
