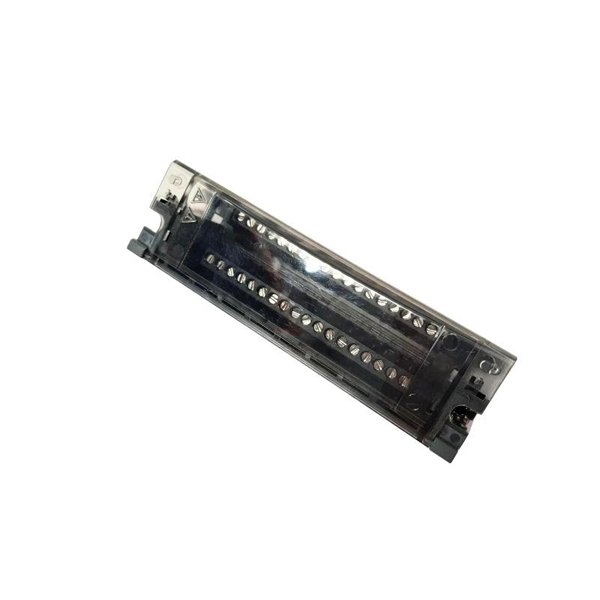

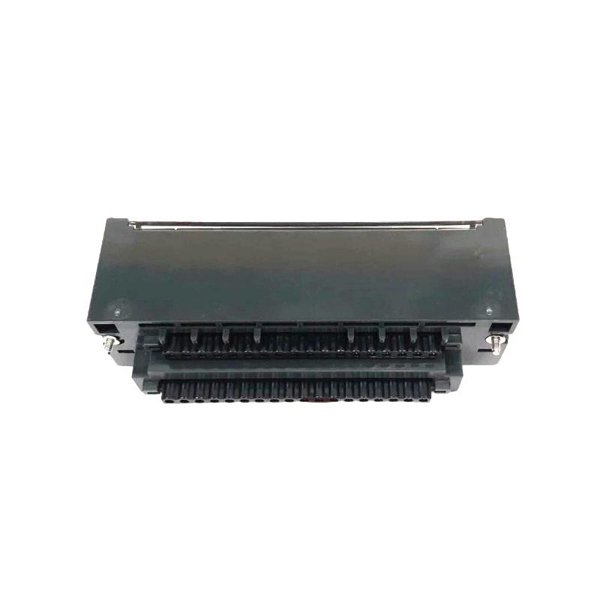

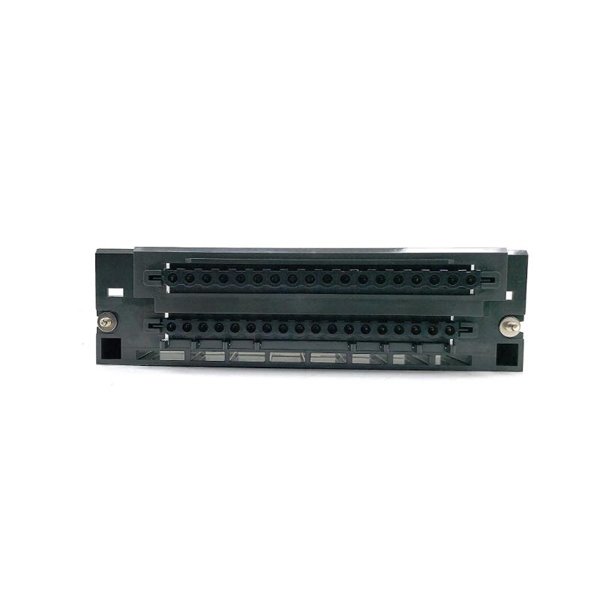

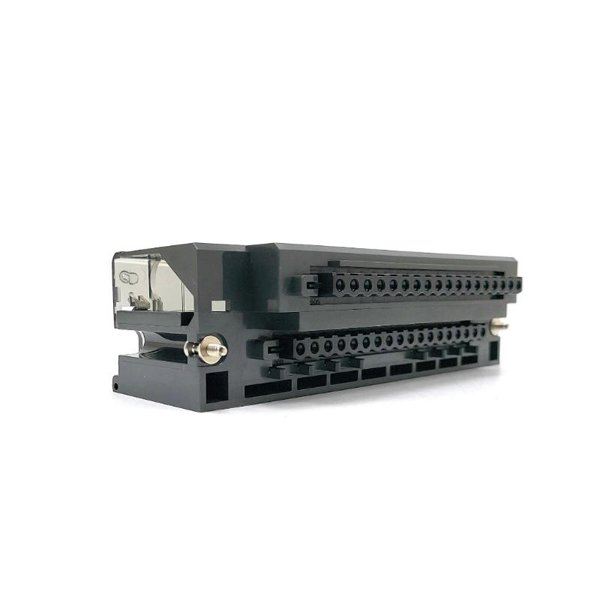

Honeywell 900TCK-0001 ControlEdge HC900 Low Voltage Terminal Block

The Honeywell 900TCK-0001 is a Euro-style 36-position terminal block designed for low voltage signal termination. It is used in conjunction with analog I/O modules such as the 900B08-0202 (8-channel Analog Output) and 900B16-0101 (16-channel Analog Output). It facilitates organized, safe, and efficient field wiring, supporting precise and reliable connection in process control applications.

Technical Specifications

Applications

• Industrial automation control systems

• Process instrumentation signal wiring

• Distributed I/O integration for analog output modules

• Power plant and chemical plant signal conditioning

• Seamless connection for Honeywell HC900 system modules

Advantages

• Precision fit for Honeywell I/O analog modules ensures wiring reliability

• DIN rail compatibility for quick installation and minimal panel space usage

• Color-coded terminal blocks for enhanced safety (red for high voltage, black for low voltage)

• Removable wiring under power allows safe maintenance and replacement

• Euro-style block supports gold-plated contacts, improving conductivity and durability

FAQs

Q1: What type of modules is the 900TCK-0001 compatible with?

A1: It is compatible with Honeywell ControlEdge HC900 analog output modules like 900B08-0202 and 900B16-0101.

Q2: Can this terminal block be mounted on any DIN rail?

A2: Yes, it is designed for standard 35mm DIN rail mounting.

Q3: Is the 900TCK-0001 suitable for high voltage applications?

A3: No, it is specifically designed for low voltage signal wiring; red terminal blocks are used for high voltage.

Q4: Does it come with built-in protection?

A4: It supports safe termination but does not include internal fuses; field-side protection is advised.

Q5: Is it removable under power?

A5: Yes, it supports module removal and installation under power with proper precautions.

Q6: What is the color coding significance?

A6: Black indicates low voltage usage; red terminal blocks (not for this model) indicate high voltage.

Q7: Can I use it for relay output wiring?

A7: No, this terminal block is optimized for analog signal termination, not relay output.

Q8: What wire sizes does it support?

A8: It typically supports 12-22 AWG wire size range.

Q9: Is the 900TCK-0001 RoHS compliant?

A9: Yes, it adheres to environmental standards applicable to the HC900 platform.

Q10: Is this block required for the 8 and 16 channel AO modules?

A10: Yes, it is required and specified for use with both 900B08 and 900B16 analog output modules.
