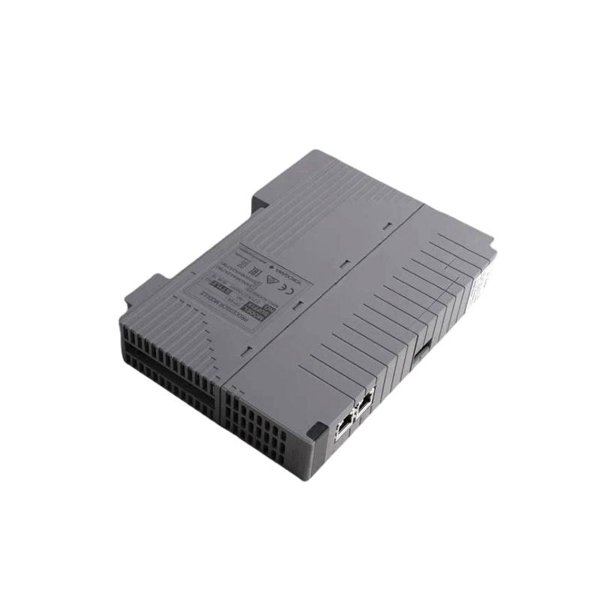

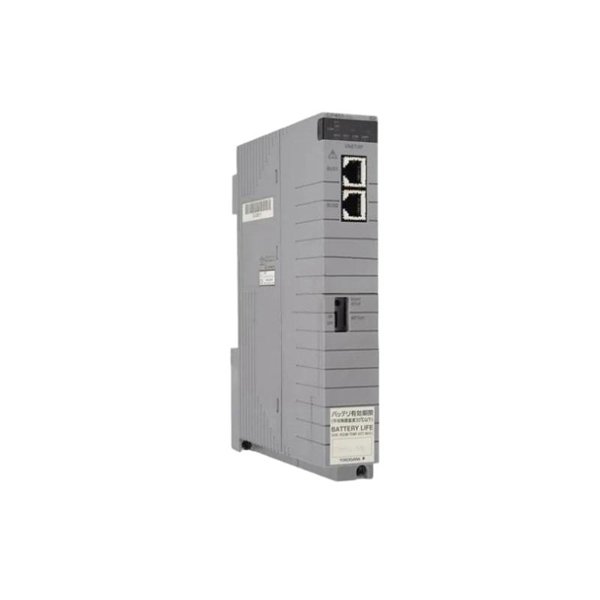

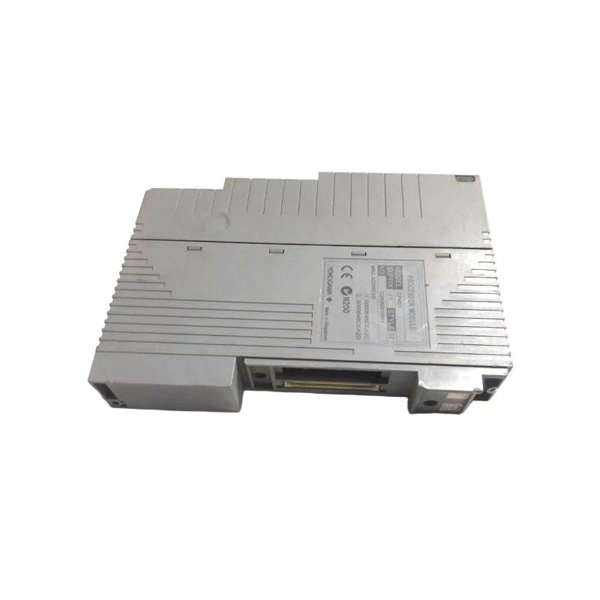

Yokogawa CP451 Processor Module

The Yokogawa CP451 Processor Module is an advanced and compact processor designed for the CENTUM CS 1000 and CENTUM CS 3000 systems, providing high-speed data processing, real-time control, and monitoring capabilities for complex industrial applications. This processor module is engineered for precise control and seamless communication in critical industrial operations, ensuring that processes run smoothly and efficiently.

The CP451 module is a vital part of Yokogawa’s distributed control systems (DCS), offering robust performance, scalability, and high availability. Its compact design allows for easy integration into existing automation setups, and it is capable of handling complex control tasks while maintaining stability. This makes the CP451 ideal for use in industries such as power generation, chemical processing, oil and gas, and manufacturing.

By providing reliable and continuous processing power, the CP451 helps improve operational efficiency, reduce downtime, and ensure safe operations in mission-critical environments.

Product Specifications

Product Applications

The Yokogawa CP451 Processor Module is suitable for a wide range of industrial applications where high-performance control and monitoring are required. Some common applications include:

• Power Generation: In power plants, the CP451 processor module controls critical equipment such as turbines, generators, and electrical distribution systems. Its high processing power allows for real-time monitoring of performance, preventing costly downtime and improving system stability.

• Oil and Gas: The CP451 is widely used in the oil and gas industry to monitor and control drilling, refining, and pipeline operations. It helps optimize resource management and ensures safety in high-risk environments.

• Chemical Processing: The module is used in chemical plants for the real-time control of reactors, pumps, and mixers. Its advanced data processing capabilities ensure that complex chemical processes operate within safe and optimal parameters.

• Manufacturing: The CP451 is commonly used in manufacturing plants to control automated machinery, production lines, and assembly systems. It ensures smooth operation and prevents bottlenecks, optimizing production efficiency.

• Water and Wastewater Treatment: The CP451 is used to monitor and control pumps, filtration systems, and flow meters in water and wastewater treatment plants. Its precise data processing capabilities help maintain consistent water quality and process efficiency.

• Food and Beverage: In the food and beverage industry, the CP451 module is used to manage production processes such as mixing, cooking, and packaging. It helps ensure high-quality production while maintaining consistency and minimizing waste.

Product Advantages

• Compact Design: With a compact size of 66 x 49 x 125 mm and a lightweight of just 0.45 kg, the CP451 processor module can easily fit into space-constrained control cabinets, making it ideal for installations where space is limited.

• High-Speed Processing: The CP451 is optimized for real-time data processing, allowing for immediate control and monitoring in dynamic environments where quick decision-making is critical.

• Flexibility: The module supports a wide range of communication interfaces, including Ethernet, Modbus, and serial communication, ensuring compatibility with various devices and networks in diverse industrial environments.

• Reliable Operation: Built for industrial environments, the CP451 processor module operates within a temperature range of -10°C to +60°C, ensuring reliable performance in both hot and cold conditions.

• Scalability: With the ability to support up to 512 I/O points, the CP451 offers scalability for both small and large industrial systems, allowing users to expand their control systems as needed.

• Safety Compliance: The CP451 module is CE, UL, and RoHS certified, ensuring it meets global safety, environmental, and quality standards for industrial applications.

• Low Power Consumption: Operating on a 24 VDC power supply, the CP451 is energy-efficient, helping reduce operational costs without sacrificing performance.

• Easy Integration: Designed for seamless integration into Yokogawa’s CENTUM CS 1000 and CENTUM CS 3000 systems, the CP451 simplifies system setup and ensures a smooth integration process.

FAQ

1. Q: What is the size of the Yokogawa CP451 processor module?

   A: The dimensions are 66 x 49 x 125 mm.

2. Q: How much does the CP451 processor module weigh?

   A: The CP451 weighs 0.45 kg.

3. Q: What is the power supply requirement for the CP451?

   A: The CP451 operates with a 24 VDC power supply.

4. Q: What communication protocols are supported by the CP451?

   A: The CP451 supports Ethernet, Modbus, and serial communication interfaces.

5. Q: How many I/O points can the CP451 handle?

   A: The CP451 can support up to 512 I/O points.

6. Q: Is the CP451 module compatible with other Yokogawa systems?

   A: Yes, the CP451 is compatible with the CENTUM CS 1000 and CENTUM CS 3000 systems.

7. Q: What is the operating temperature range of the CP451?

   A: The operating temperature range is -10°C to +60°C.

8. Q: Is the CP451 module easy to install?

   A: Yes, the CP451 is DIN rail mountable, making it easy to install and integrate into existing control systems.

9. Q: Does the CP451 meet international safety standards?

   A: Yes, the CP451 is CE, UL, and RoHS certified.

10. Q: Can the CP451 be used in both indoor and outdoor environments?

    A: Yes, the CP451 is designed to work in a wide range of industrial environments, both indoor and outdoor.
