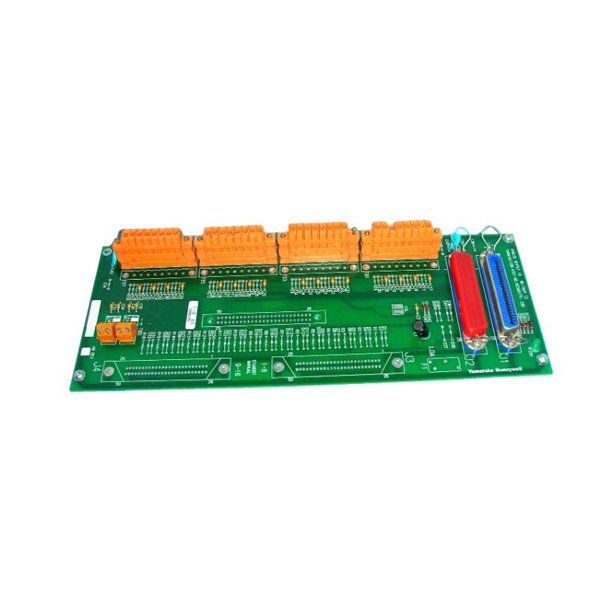

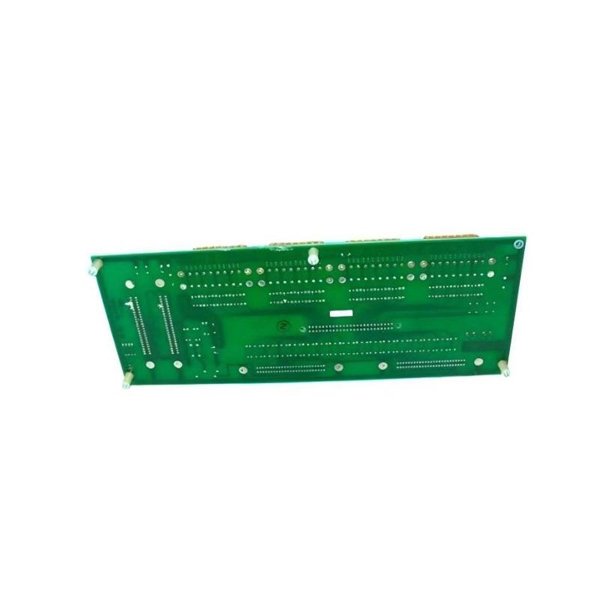

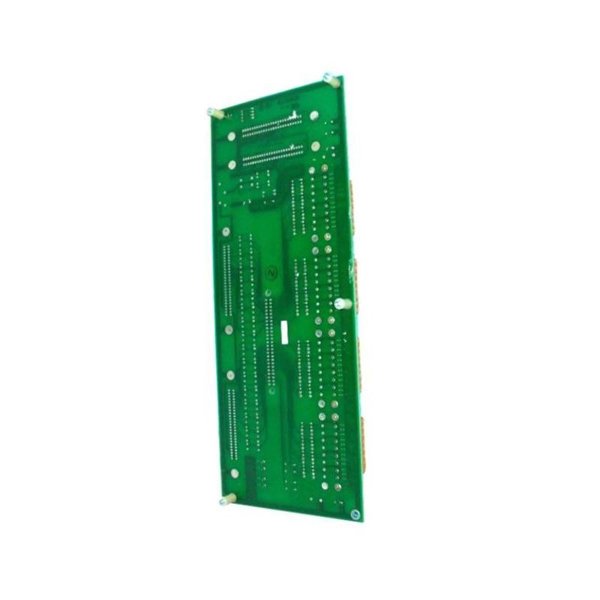

Honeywell MU-TAOY23 80366177-200 Analog Output 16 FTA
Manufacturer:Honeywell
Product Number:MU-TAOY23 80366177-200
Product Type:Analog Output 16 FTA
Origin:USA
Dimensions:307 × 105.5 × 21.3 mm
Weight: 0.36 kg
Views:31
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Honeywell MU-TAOY23 80366177-200 is a 16-channel analog output Field Termination Assembly (FTA) module, designed for the TotalPlant Solution (TPS) system’s Advanced Process Manager (APM) and High-Performance Process Manager (HPM). It interfaces field devices that require analog signal output (typically 4-20 mA), supporting process automation with redundancy and high accuracy.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MU-TAOY23 |
| Output Type | 4–20 mA |
| Channels | 16 |
| Resolution | ±0.05% |
| Calibrated Accuracy | ±0.35% (at 25°C) |
| Output Linearity | ±0.05% nominal |
| Output Readback Accuracy | ±4% |
| Max Output Current | 24 mA |
| Output Range (Settable) | 0 mA, 2.9 mA to 21.1 mA |
| Max Resistive Load | 750 Ω at 20 mA |
| Output Settling Time | 4 ms (to 98% final value) |
| Surge Withstand Capability | ANSI/IEEE C37.90.1-1978 |
| Diagnostic Frequency | Once per minute |
| Redundancy Option | Supported |
| Dimensions | 307 × 105.5 × 21.3 mm |
| Weight | 0.36 kg |
Applications
-
Process control output in oil & gas, chemical, and power industries
-
Analog signal driving for valves, actuators, and converters
-
Integration with HPM/APM control systems
-
Redundant output architecture for critical loops
Advantages
-
Supports redundant analog output for high availability
-
High accuracy and fast settling time
-
Compact footprint for space-saving installation
-
Integrated diagnostics for enhanced reliability
-
Seamless integration into Honeywell TPS architecture
FAQ
Q1: What type of signal does MU-TAOY23 output?
A1: It provides 4–20 mA analog current outputs.
Q2: How many channels are supported?
A2: It supports 16 independent analog output channels.
Q3: Is this model suitable for redundant configurations?
A3: Yes, it supports one-on-one redundancy with seamless failover.
Q4: What is the maximum output current it can deliver?
A4: Up to 24 mA.
Q5: What is the accuracy of this module?
A5: ±0.35% of full scale at 25°C, including linearity.
Q6: What is the output settling time?
A6: Typically 4 ms to reach 98% of the final output value.
Q7: Does the module support diagnostics?
A7: Yes, it performs diagnostic checks every minute.
Q8: What’s the maximum resistive load supported?
A8: Up to 750 ohms at 20 mA.
Q9: Can this module be used in harsh environments?
A9: Yes, when paired with conformally coated components or Remote Hardened I/O options.
Q10: What TPS components is this module compatible with?
A10: Compatible with Honeywell PM/APM/HPM controllers.
