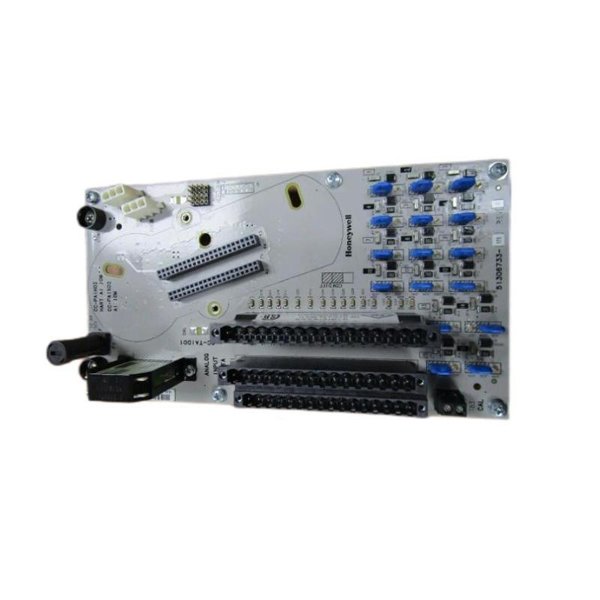

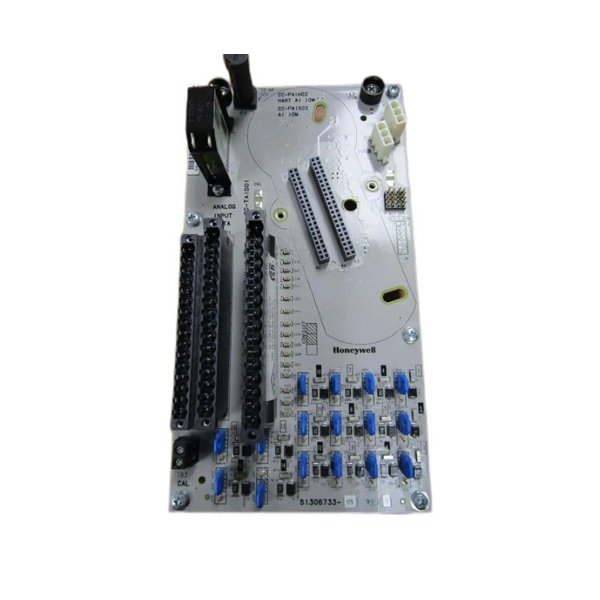

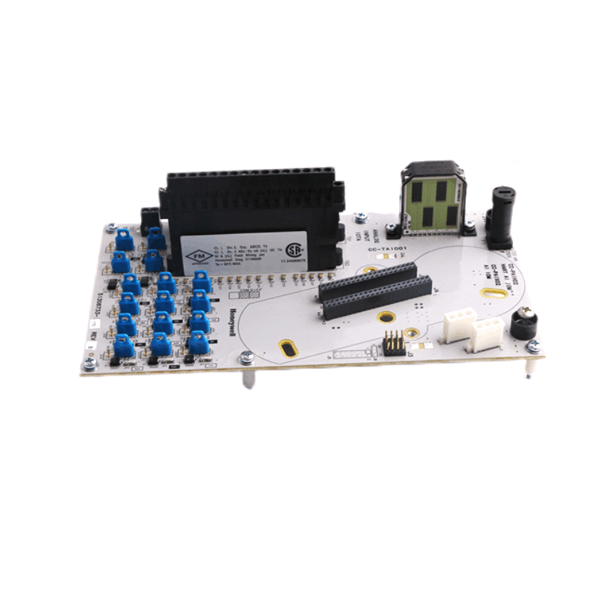

Honeywell CC-TAID01 51306733-175 Analog Input Module

The Honeywell CC-TAID01 51306733-175 is an advanced analog input module designed to interface with Honeywell control systems, providing high-accuracy signal processing for analog signals in industrial automation systems. This module is part of Honeywell’s Experion series and is engineered to handle a wide range of analog signals from field devices, ensuring precise measurement, signal conversion, and integration with the control system.

This module is built for robust, high-performance applications in industries such as process control, manufacturing, and energy production. The CC-TAID01 offers high-resolution and reliable signal conversion for systems that demand precision and accuracy in analog data processing.

Technical Specifications

Product Applications

The Honeywell CC-TAID01 is designed for integration into a wide variety of industrial applications, particularly those requiring accurate and reliable analog signal processing. Common uses include:

• Process Control Systems

  The module is ideal for applications requiring precise monitoring of physical variables such as temperature, pressure, and flow in chemical, petrochemical, and manufacturing plants.

• Energy and Utilities

  It can be used to monitor and control instrumentation in power plants, water treatment facilities, and gas pipelines.

• Automation and Control Systems

  Integrating field sensors and actuators into an automated control environment for systems requiring high-precision measurement and control.

• HVAC Systems

  Interface with HVAC equipment, collecting signals from sensors and controlling actuators in large-scale building management systems.

• Factory Automation

  It serves as a critical component in gathering data from field devices such as pressure, flow, and temperature sensors, allowing factory automation systems to perform accurate and real-time process control.

Product Advantages

• High-Accuracy Signal Processing

  The CC-TAID01 module provides highly accurate analog-to-digital conversion, enabling precise monitoring of field devices, which is crucial for industries where performance and safety are paramount.

• Wide Input Range Compatibility

  Supports both voltage and current inputs (0-10V, 4-20mA), offering flexibility in its use with various types of field devices.

• Versatile and Flexible Integration

  Designed for seamless integration with Honeywell Experion systems, simplifying installation and reducing configuration complexity.

• Compact Design

  The module’s small form factor (221 x 121 x 80 mm) allows for easy installation in compact racks, saving valuable space in control panels.

• Durability

  Built to operate in challenging environments, the module can withstand temperature variations from -20°C to 60°C, ensuring reliable performance even in harsh industrial settings.

• Compliance with Safety Standards

  The module complies with international safety standards such as CE, UL, CSA, and RoHS, ensuring it meets the required regulatory and safety requirements for industrial use.

• Reliable and Stable Operation

  With an operating humidity range of 5% to 95% (non-condensing), the module ensures stable performance even in humid environments.

Frequently Asked Questions (FAQ)

Q1: What types of signals does the Honeywell CC-TAID01 module handle?

A1: It supports analog input signals, specifically voltage (0-10V) and current (4-20mA) signals.

Q2: Can the CC-TAID01 module be used in hazardous environments?

A2: Yes, the module is built to operate in industrial environments, but for hazardous locations, specific certifications may be required.

Q3: What is the power consumption of this module?

A3: The module requires 24V DC ±10% for operation.

Q4: What is the temperature range for this module?

A4: The module operates within a temperature range of -20°C to 60°C.

Q5: What are the physical dimensions of the CC-TAID01?

A5: The module’s dimensions are 221 x 121 x 80 mm.

Q6: What is the weight of the Honeywell CC-TAID01 module?

A6: The weight of the module is 0.2 kg.

Q7: How is the module mounted?

A7: The module is designed for rack mounting in a standard control rack.

Q8: Does the CC-TAID01 have compliance certifications?

A8: Yes, it is CE, UL, CSA, and RoHS certified.

Q9: Can the module handle both voltage and current inputs?

A9: Yes, the CC-TAID01 supports both voltage (0-10V) and current (4-20mA) inputs.

Q10: What is the module’s storage temperature range?

A10: The module can be stored in temperatures ranging from -40°C to 85°C.
