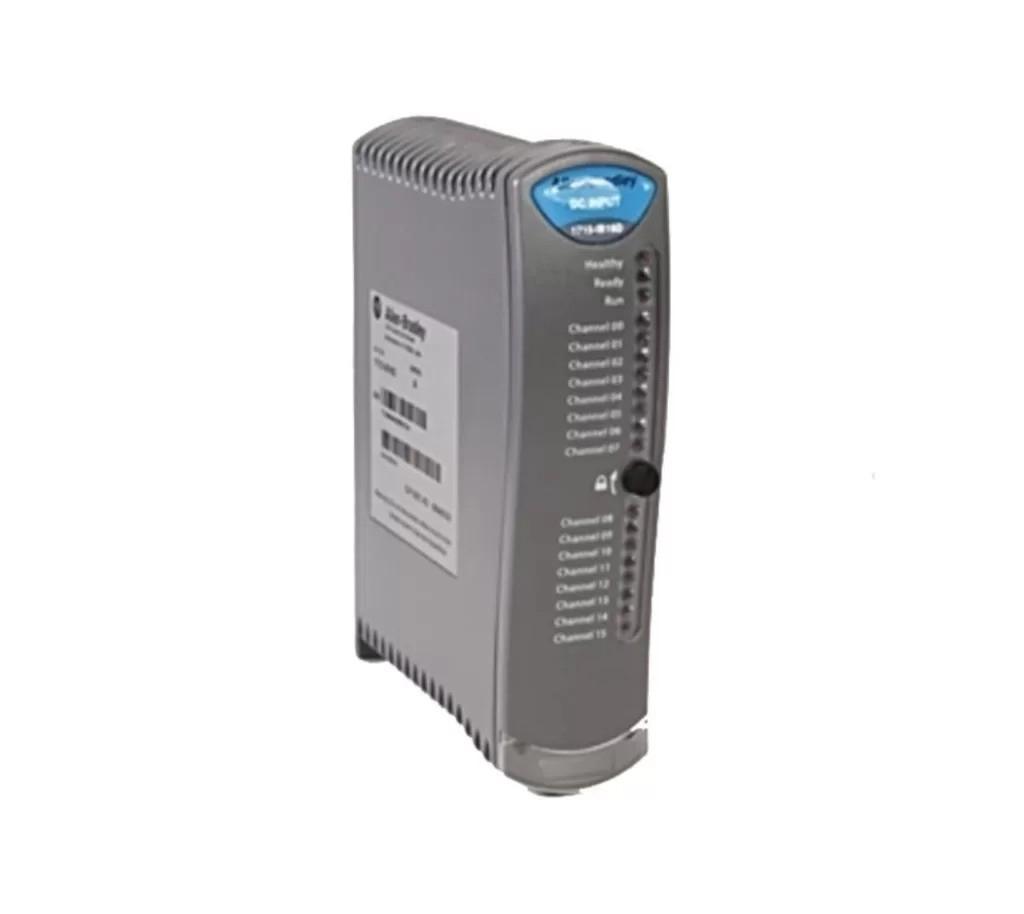

Allen-Bradley 1715-IB16D Redundant I/O 16-Channel Digital Input Module

• The 1715-IB16D is a 16-point, redundant input module that provides DC digital inputs for Allen-Bradley ControlLogix controllers.
• It is DIN rail-mountable and has an IP20 rating, making it suitable for indoor use.
• The module operates over a temperature range of -25 to 70 degrees Celsius.

Features

• Redundant design provides high availability for critical applications.
• DC digital inputs support a variety of signal types, including discrete, counter, and pulse.
• DIN rail-mountable for easy installation.
• IP20 rating for indoor use.
• Wide temperature range for demanding applications.

Technical Specifications

• Number of points: 16
• Input type: DC digital
• Voltage range: 18-32 VDC
• Current draw: 20 mA per point
• Dimensions: 120 x 60 x 40 mm
• Weight: 0.5 kg
• Certificate: CE, UL
• Warranty: 1 year

Benefits

• The 1715-IB16D provides a reliable and cost-effective way to add DC digital inputs to a ControlLogix system.
• The redundant design ensures that the system will remain operational even if one of the input channels fails.
• The wide range of supported signal types makes the module versatile and suitable for a variety of applications.
• The DIN rail-mounting and IP20 rating make the module easy to install and suitable for indoor use.
