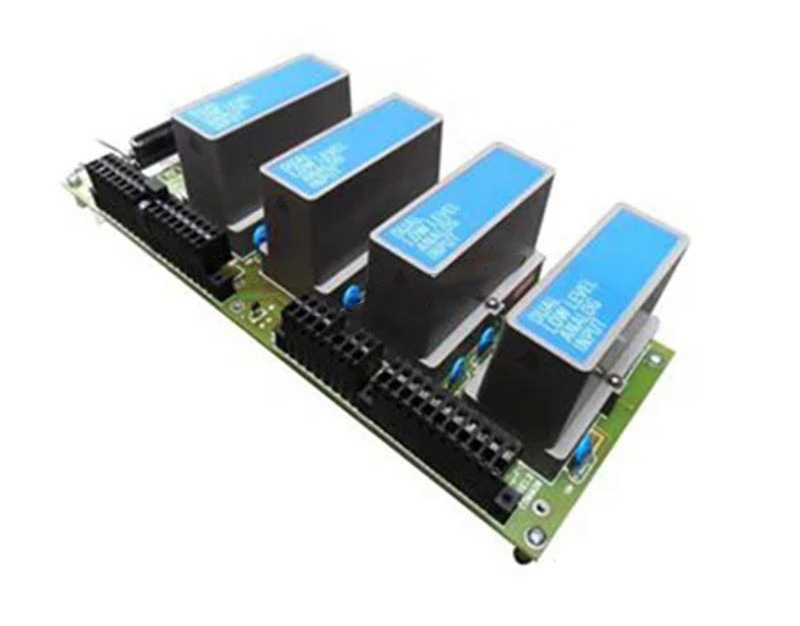

Honeywell 51304437-100 MU-TAIL02 Low-Level Analog Input Module
Manufacturer :Honeywell
Product No. :51304437-100 MU-TAIL02
Condition ：Brand NEW & in Stock
Product Type :Low-Level Analog Input Module
Product Origin :USA
Payment :T/T, Western Union
Dimension:144 mm x 100 mm x 66 mm
Weight:1.02 kg
Approvals :CE, TUV, UL508, CSA
Warranty :12 months
Product Description
The Honeywell 51304437-100 MU-TAIL02 is a low-level analog input field termination assembly (FTA) designed for industrial automation systems. It provides precise signal conversion and acquisition, supporting various input types like thermocouples, RTDs, voltage, and current. The module ensures reliable performance with features like galvanic isolation and high common-mode rejection.
Technical Specifications
- Model Number: 51304437-100
- Brand: Honeywell
- Type: Low-Level Analog Input Module
- Input Channels: 8 galvanically isolated channels
- Input Types: Thermocouples, RTDs, Voltage, Current
- A/D Converter Resolution: 15 bits
- Supply Voltage: 24 VDC
- Power Consumption: ≤ 50 mW
- CMV (Common Mode Voltage): 250 Vac rms or ±250 Vdc
- Dielectric Strength: 1500 Vac rms or ±1500 Vdc
- Common Mode Rejection Ratio (CMRR): 120 dB min. with 1k lead imbalance
- Operating Temperature: -40°C to +85°C
- Humidity Range: 0% to 95% RH (non-condensing)
- Connector Type: Terminal Block
- Dimensions: 144 mm x 100 mm x 66 mm (5.7 in x 4 in x 2.6 in)
- Weight: 1.02 kg (2.25 lbs)
