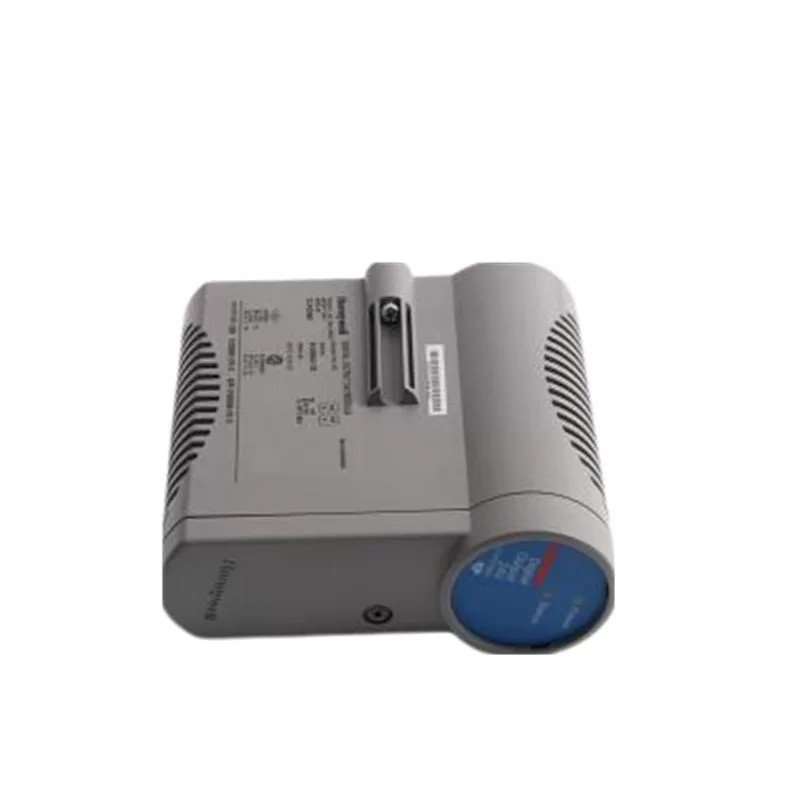

Honeywell 8U-PDIPA1 Digital Input Module

The Honeywell 8U-PDIPA1 is a specialized digital input module designed to handle 24VDC signals. It primarily accumulates pulses from these signals, making it ideal for measuring events or quantities represented by pulses. This module is widely used in industrial and building automation.

Key Features

• Pulse Accumulation: Accurately counts pulses from 24VDC digital inputs.
• 24VDC Compatibility: Operates with standard 24VDC power supplies.
• Discrete Inputs: Accepts discrete digital signals.
• Industrial-Grade: Withstands harsh industrial environments.
• Flexible Configuration: Provides various configuration options for different applications.

Technical Specifications

• Reset Function: Includes a function to clear the accumulated count.
• Communication: Supports various protocols like Modbus or BACnet for system integration.
• Mounting: Designed for DIN rail or panel mounting.
• Environmental Conditions: Rated for specific temperature and humidity ranges.

Applications

The Honeywell 8U-PDIPA1 is versatile and suitable for numerous applications:

• Flow Measurement: Counts pulses from flow meters to measure fluid flow.
• Speed Measurement: Monitors machinery speed by counting pulses from encoders.
• Position Measurement: Tracks the position of actuators or robotic arms.
• Event Counting: Counts specific events, such as door openings or equipment cycles.
• Batching: Controls batch processes by counting pulses from dispensing devices.
