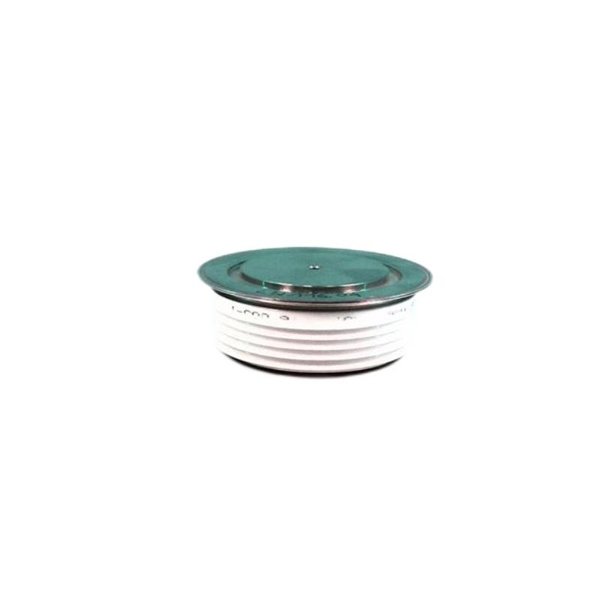

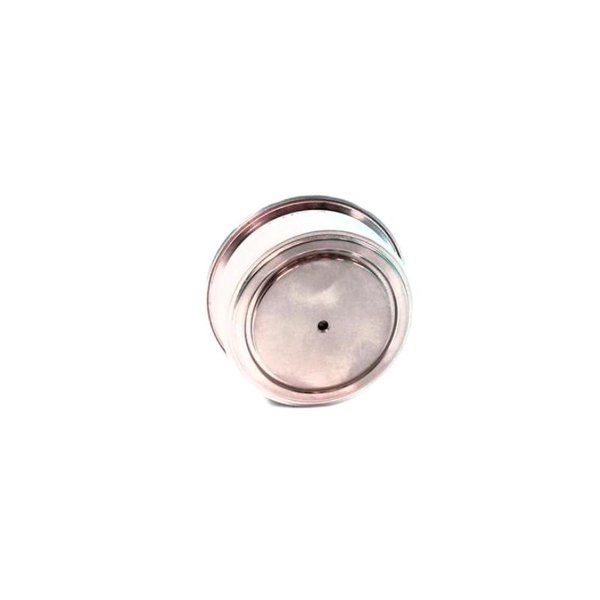

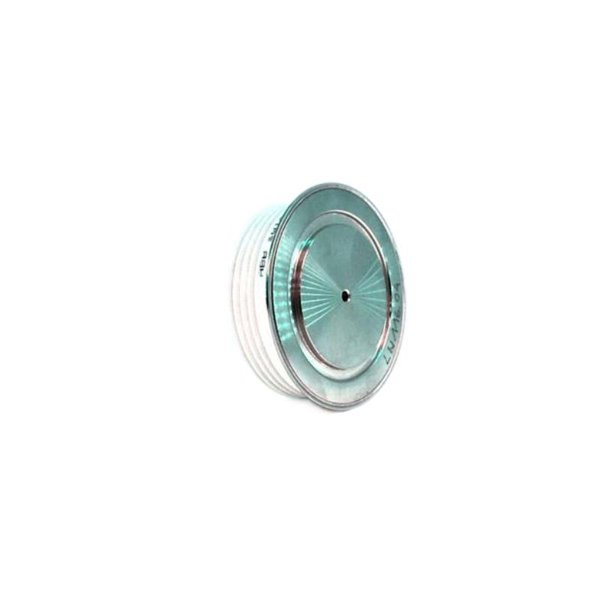

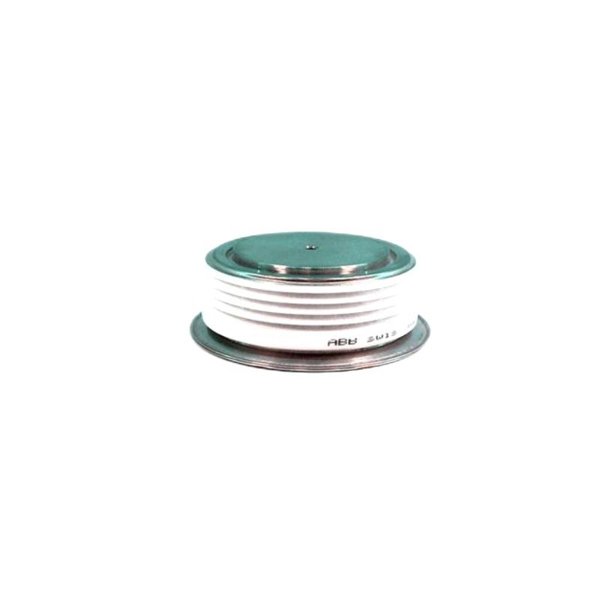

ABB 5SDF0460F0001 3BHL000396P0001 Diode

ABB, a global leader in power and automation technologies, offers the 5SDF0460F0001 diode to meet the growing demands of industrial power electronics. This component is engineered to provide optimal performance in rectification and protection circuits, ensuring minimal energy loss and enhanced system reliability.​

Product Specifications

The following table summarizes the key specifications of the ABB 5SDF0460F0001 diode:​

Product Applications

The ABB 5SDF0460F0001 diode is suitable for various applications, including:​

• Power Supplies: Enhances efficiency and reliability in AC-DC conversion.​

• Motor Drives: Provides effective switching and protection in motor control circuits.​

• Inverters: Ensures stable operation and energy conversion in inverter systems.​

• Renewable Energy Systems: Utilized in photovoltaic and wind power systems for efficient power conversion.​

• Uninterruptible Power Supplies (UPS): Offers dependable performance in backup power applications.​

Product Advantages

• High Voltage and Current Ratings: Capable of handling up to 4600 V and 500 A, suitable for demanding industrial applications.​

• Compact Design: Space-saving dimensions facilitate integration into various systems.​

• Wide Operating Temperature Range: Operates effectively in temperatures from -40°C to +125°C, ensuring reliability in diverse environments.​

• Low Forward Voltage Drop: Minimizes energy loss during operation, improving overall system efficiency.​

• Fast Switching Speed: Quick response times enhance performance in high-speed applications.​

FAQ

1. What is the maximum voltage rating of the ABB 5SDF0460F0001 diode?

   • The diode has a maximum voltage rating of 4600 V.​

2. What is the current handling capacity of this diode?

   • It can handle up to 500 A of continuous current.​

3. What are the weight of the diode?

   • The diode weight is 0.51 kg.​

4. What is the operating temperature range for this diode?

   • It operates effectively between -40°C and +125°C.​

5. Can this diode be used in renewable energy applications?

   • Yes, it is suitable for use in photovoltaic and wind power systems.​

6. Is the ABB 5SDF0460F0001 diode compatible with surface mount technology?

   • Yes, it is designed for surface mount mounting style.​

7. What is the thermal resistance junction to case for this diode?

   • The thermal resistance is 0.1 K/W.​

8. What is the reverse recovery time (Qrr) of this diode?

   • The maximum reverse recovery time is 200 ns.​

9. How does the forward voltage drop (Vf) affect system efficiency?

   • A lower Vf reduces energy loss, thereby improving system efficiency.​

10. In which applications is this diode commonly used?

    • It is commonly used in power supplies, motor drives, inverters, renewable energy systems, and UPS applications.
