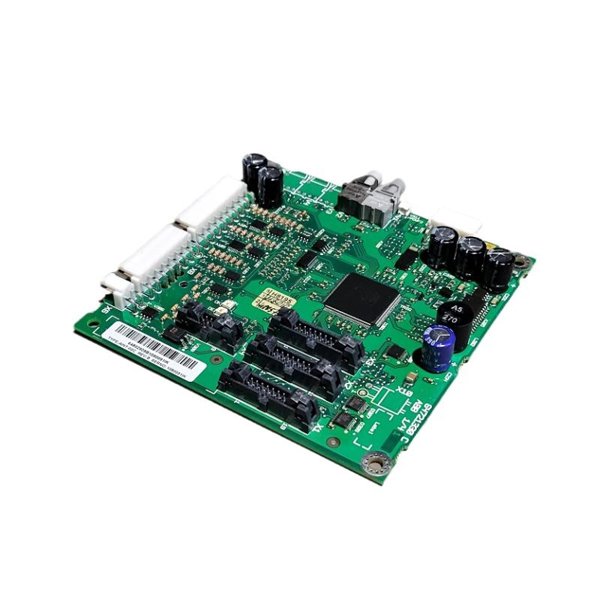

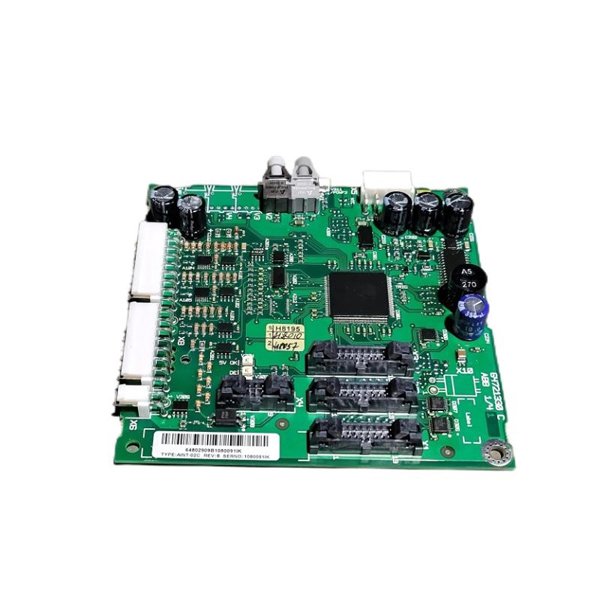

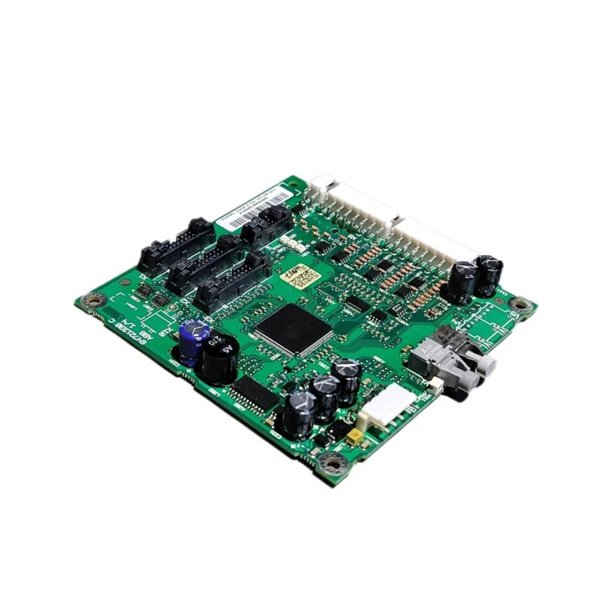

ABB AINT-02C 68257867 SP Kit Main Interface

The ABB AINT-02C 68257867 SP Kit Main Interface is a crucial component within ABB’s automation systems, serving as the primary interface between the main control unit and various subsystems. Designed for seamless integration, it ensures reliable communication and efficient operation across different modules, particularly within ABB’s inverter and drive systems.

Technical Specifications

Applications

The AINT-02C module is versatile and finds applications across various industries:

• Power Generation: Integrates within turbine control and energy distribution systems.

• Industrial Automation: Facilitates communication in manufacturing and processing plants.

• Oil & Gas: Supports control systems in exploration and refining operations.

• Water Treatment: Manages processes in purification and distribution facilities.

• Chemical Processing: Ensures accurate control in complex chemical production lines.

• Pulp & Paper: Enhances automation in paper manufacturing processes.

Advantages

• Seamless Integration: Designed specifically for ABB systems, ensuring compatibility and ease of installation.

• High Precision: Offers accurate analog input readings with 12-bit resolution and ±0.1% accuracy.

• Robust Design: Built to withstand industrial environments with wide temperature and humidity ranges.

• Efficient Power Usage: Low power consumption contributes to energy savings.

• Flexible Mounting: Supports both DIN rail and panel mounting options for versatile installation.

• Comprehensive Isolation: Ensures safety and signal integrity through channel-to-channel and ground isolation.

FAQ

1. What is the primary function of the AINT-02C module?

   It serves as the main circuit interface board, facilitating communication between the control unit and other modules within ABB inverter systems.

2. Which ABB systems are compatible with the AINT-02C?

   The module is designed for integration with ABB inverter systems, particularly within the ACS800 series.

3. What types of signals does the AINT-02C handle?

   It processes analog input signals, including current (0-20 mA, 4-20 mA) and voltage (±10 V).

4. How accurate are the input readings of the AINT-02C?

   The module offers a resolution of 12 bits with an accuracy of ±0.1% of the full scale.

5. What are the power requirements for the AINT-02C?

   It operates on a 24 VDC nominal power supply with a consumption of ≤ 10 W.

6. Can the AINT-02C be mounted in different ways?

   Yes, it supports both DIN rail and panel mounting, providing flexibility in installation.

7. Is the AINT-02C suitable for harsh environments?

   Absolutely, it operates within a temperature range of -20°C to +60°C and can be stored between -40°C to +85°C, with humidity tolerance up to 95% RH non-condensing.

8. Does the module provide isolation between channels?

   Yes, it features channel-to-channel and channel-to-ground isolation to maintain signal integrity and safety.

9. What certifications does the AINT-02C hold?

   It is certified with CE, UL, and cUL standards, ensuring compliance with international safety and quality norms.

10. Can the AINT-02C be hot-swapped during operation?

    No, the AINT-02C is not designed for hot-swapping. Power must be removed from the drive system before removal or replacement to avoid damage to the board or risk to personnel.
