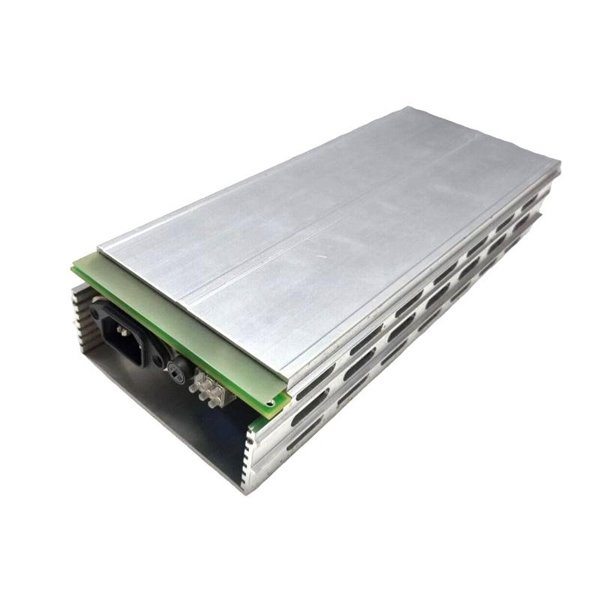

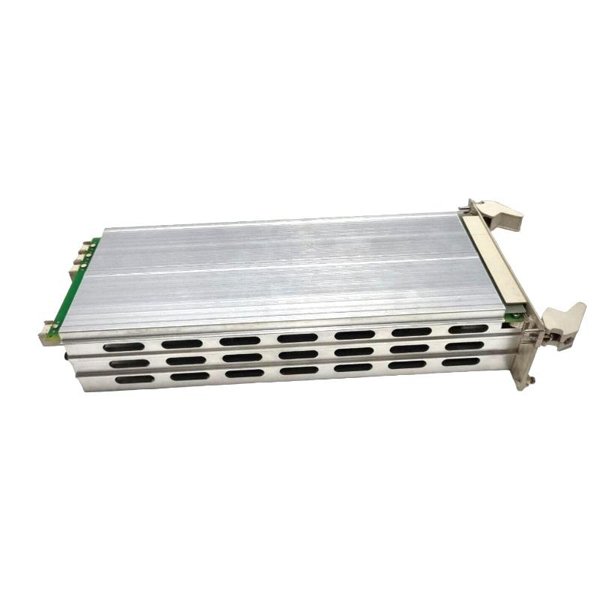

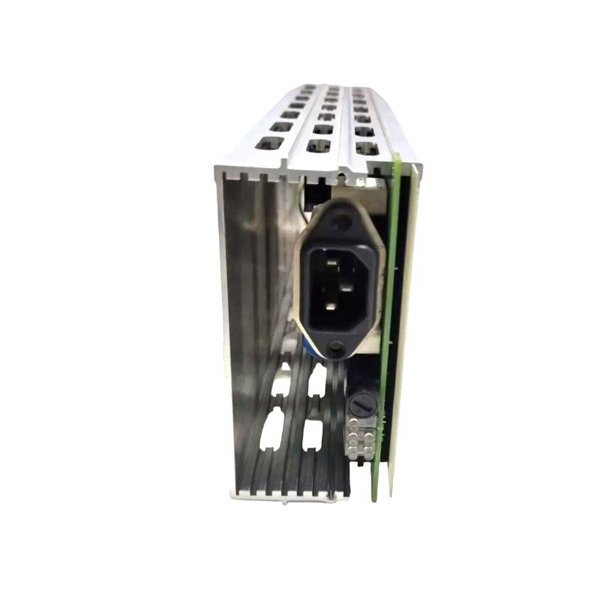

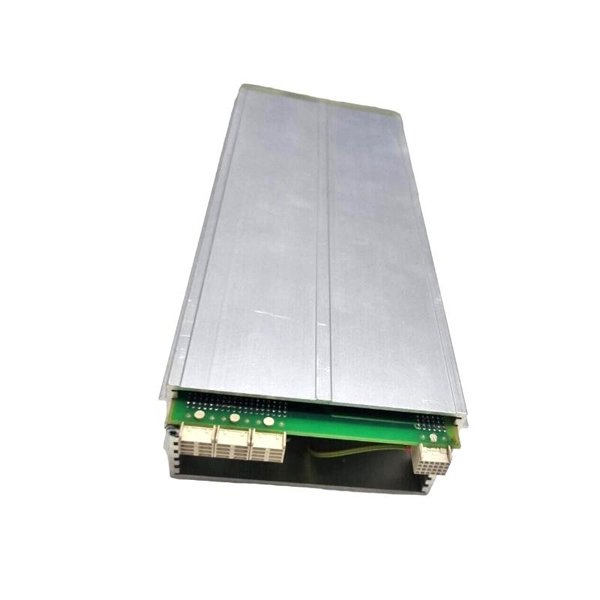

ABB SB510 3BSE000860R1 Backup Power Supply Module
Manufacturer:ABB
Product Number:SB510 3BSE000860R1
Product Type:Backup Power Supply Module
Origin:Sweden (SE)
Dimensions:291 × 150 × 60 mm
Weight:0.98 kg
Views:25
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB SB510 3BSE000860R1 is a backup power supply module designed for use with the Advant Controller 450 system. It ensures secure and stable operation by maintaining RAM data and real-time clock accuracy during power outages. The SB510 is typically used alongside battery packages to provide extended backup time and increase system reliability in critical control applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | SB510 |
| Product Code | 3BSE000860R1 |
| Function | Backup power supply for controller RAM |
| Supported System | Advant Controller 450 |
| Backup Duration | ≥ 4 hours (standard); extended with battery options |
| Voltage Support | Used with regulated 5 V DC system bus |
| Installation | Mounted in subrack RF533 (Part B or C) |
| Dimensions (W × H × D) | 291 × 150 × 60 mm |
| Weight | 0.98 kg |
Applications
-
Power loss protection for RAM and system clock in process controllers
-
Redundant systems requiring high reliability in power management
-
Industrial automation, utility control rooms, and critical process operations
-
Continuous process environments using Advant Controller 450
Product Advantages
-
Maintains memory integrity during power interruptions
-
Enhances system uptime with automatic switchover to backup mode
-
Supports extended backup time when combined with external batteries
-
Seamless integration with other Advant OCS components
-
Compact design fits standard RF533 controller subracks
FAQs
Q1: What is the primary function of the ABB SB510 module?
A1: It provides backup power to the RAM and real-time clock of the controller during power outages.
Q2: Can the SB510 be used independently without a battery?
A2: No, it requires a battery package to store backup energy.
Q3: How long does the SB510 provide backup power?
A3: It secures RAM for a minimum of 4 hours under standard conditions.
Q4: Is the SB510 hot-swappable?
A4: No, the power must be turned off before replacing the module.
Q5: Where is the SB510 installed?
A5: It is installed in the RF533 controller subrack, specifically in Part B or Part C.
Q6: Does the SB510 support redundancy?
A6: Yes, dual SB510 units can be used to extend backup time.
Q7: Is the module compatible with S800 I/O systems?
A7: Indirectly, as it supports the controller which interfaces with S800 I/O.
Q8: What controller system is it compatible with?
A8: It is specifically designed for Advant Controller 450.
Q9: Does it include integrated batteries?
A9: No, external batteries are required and connected separately.
Q10: Is SB510 CE marked?
A10: Yes, it complies with EMC and Low Voltage Directives.
