ABB 3HAC031683-004 Product Introduction

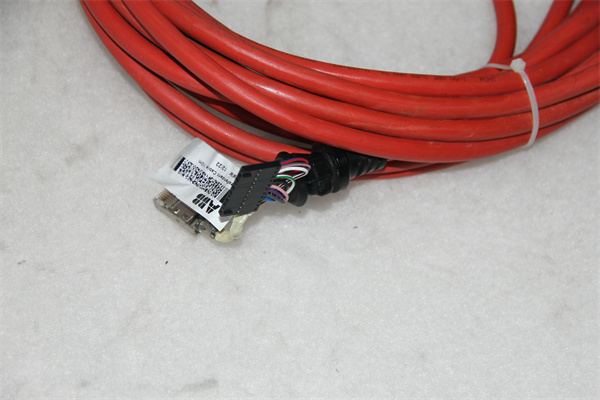

3HAC031683-004 is a teaching pendant connection cable specially designed by ABB for industrial robots,with a length of 30 meters.It is mainly used to connect robot teaching pendant and controller,realize programming,debugging,and real-time control command transmission.This product adopts high reliability wire and industrial grade protection design,suitable for robot operation scenarios in complex industrial environments.

technical specifications

Parameter item specification description

Length 30 meters

Core material:Tin plated copper wire

Insulation thickness standard industrial grade flame-retardant insulation layer

Temperature range:Conventional environment(-30℃to+70℃)

Flame retardancy meets the standard flame retardant requirements

Applicable model ABBIRC5 series robot controller(such as DSQC679 module)

Protection level IP54(dustproof,splash proof)

Main features and advantages

High reliability communication

Adopting tin plated copper wire core and anti-interference shielding design,it ensures the stability and noise resistance of long-distance(30 meters)signal transmission,and supports real-time response of robot control instructions.

Industrial grade durability

The outer layer is made of high-strength protective materials,which are wear-resistant and stretch resistant,suitable for frequent movement and complex working conditions in the factory environment,and extend the service life.

Modular compatibility

Standard interface design,capable of quickly connecting ABB robot teaching pendant and controller(such as DSQC679 module),compatible with AC800F control system and robot motion control unit.

Wide environmental adaptability

Supports temperature range of-30℃to+70℃and high humidity environment(95%non condensing),meeting the requirements of harsh industrial scenarios such as food processing and chemical industry.

application area

Industrial robot operation:Connect the teaching pendant and controller to achieve robot programming,path planning,and real-time debugging.

Automated production line:supports collaborative control between robots and PLC systems in scenarios such as automotive manufacturing and electronic assembly.

Intelligent warehousing and logistics:used for the communication link between AGV(Automated Guided Vehicle)and robot scheduling system.

Related products

ABB DSQC679 module

The motion control interface module is used in conjunction with 3HAC031683-004 to achieve precise control of robot joint motors.

ABB AC800F control system

The core platform of industrial automation receives instructions from the teaching pendant through 3HAC031683-004 and manages the collaborative operation of multiple robots.

ABB robot teaching pendant(such as TP27)

Provide a human-computer interaction interface and transmit operation instructions to the controller through 3HAC031683-004.
