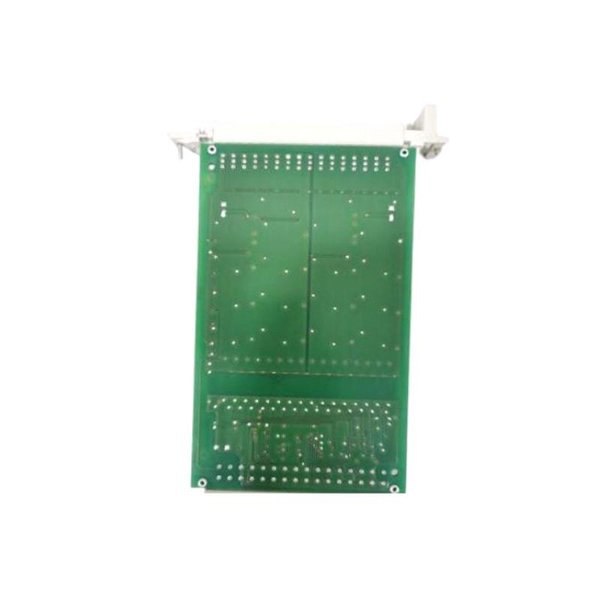

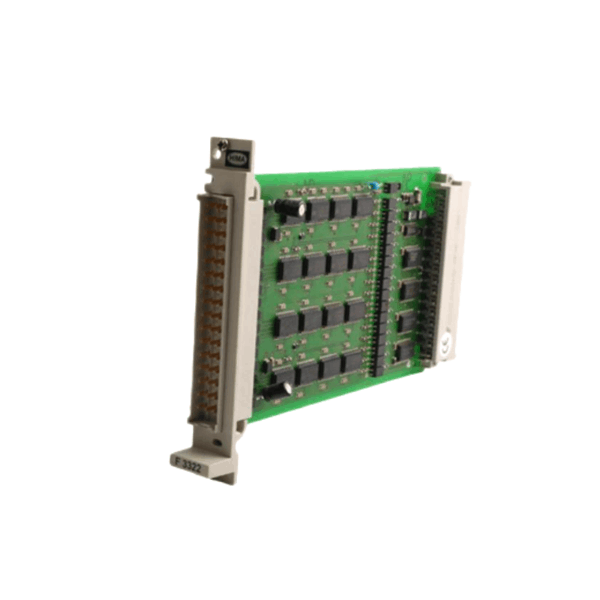

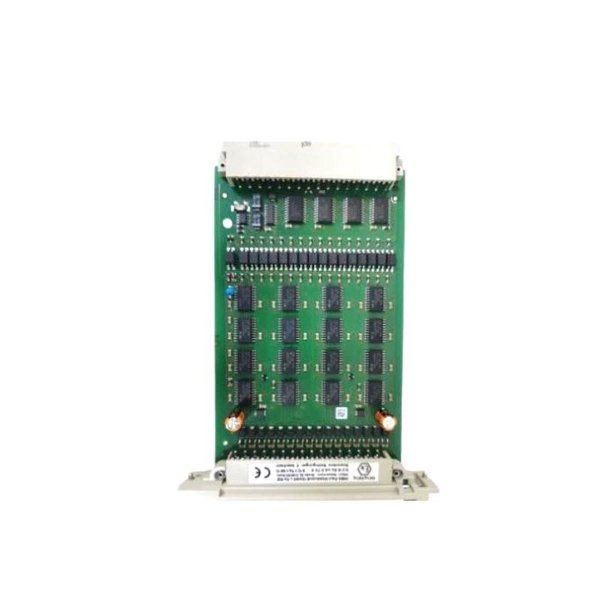

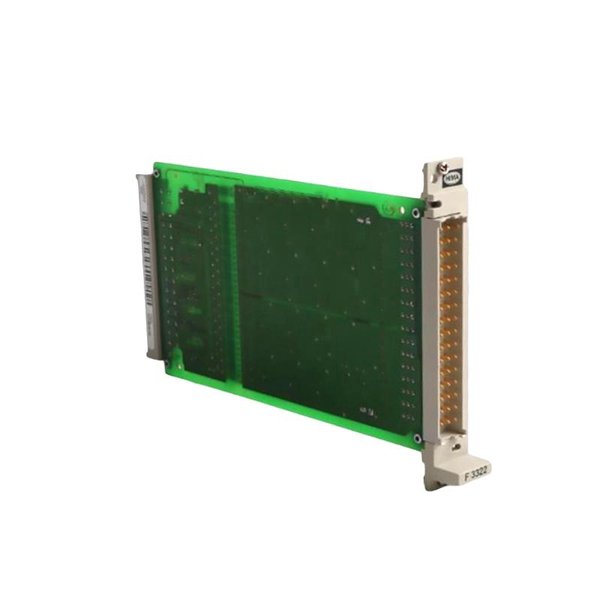

Hima F3322 16-Channel Output Module

The HIMA F3322 16-Channel Output Module is a high-performance output module designed for use in safety and automation systems. It provides 16 output channels, capable of controlling various actuators, such as valves, motors, and relays. The F3322 module is part of HIMA’s robust safety and control systems, offering advanced features for high availability, reliability, and safety-critical operations.

Built for industrial applications that require seamless and safe operation, the F3322 module supports both digital and analog output signals, ensuring flexibility and compatibility with various industrial processes. It is designed to integrate into HIMA’s safety-critical systems, offering comprehensive diagnostics and monitoring functions to enhance system performance.

The F3322 output module meets the highest safety standards, ensuring fault tolerance, redundancy, and operational reliability in demanding environments such as chemical plants, oil and gas facilities, and power generation plants.

Product Specifications

Product Applications

The HIMA F3322 16-Channel Output Module is widely used in safety-critical and automated industrial applications where control over various outputs is needed. Some key application areas include:

1. Safety Instrumented Systems (SIS): The F3322 module is ideal for controlling actuators and output devices in safety instrumented systems that require high reliability and fault tolerance.
2. Chemical and Petrochemical Plants: In hazardous environments where precise control of valves and pumps is crucial, the F3322 output module ensures safe and accurate control.
3. Oil and Gas: The module is used in drilling rigs, pipeline monitoring, and production facilities to control valves, actuators, and motors under stringent safety regulations.
4. Power Generation: It is employed in power plants for controlling turbines, boilers, and generators, helping to optimize performance and ensure safety in energy production processes.
5. Industrial Automation: The F3322 module plays an essential role in automated manufacturing and processing environments by providing reliable control of various production devices such as conveyors and robotic arms.
6. Water and Wastewater Treatment: The module helps monitor and control valves, actuators, and other equipment in water treatment plants, ensuring efficiency and regulatory compliance.
7. Transportation Systems: It can be integrated into safety systems in transportation infrastructures such as railway control systems and airport terminal operations.

Product Advantages

1. High Reliability: Designed for safety-critical applications, the F3322 module guarantees continuous operation even in the event of faults, providing high system uptime.
2. Flexibility in Output Types: With the ability to control both digital and analog outputs, the F3322 module is highly adaptable to various industrial processes and actuator types.
3. Comprehensive Diagnostics: The module includes full diagnostics capabilities, detecting faults such as short circuits or open circuits, which reduces maintenance time and increases system reliability.
4. Redundant Operation: It can be used in conjunction with HIMA’s redundant safety systems to ensure maximum availability and prevent system failures.
5. Compact Design: The F3322 module’s compact dimensions make it ideal for installation in tight spaces, maximizing the efficiency of control panels.
6. High Safety Standards: The module is certified to meet stringent safety standards such as CE, UL, ATEX, and FM, making it suitable for use in hazardous areas.
7. Easy Integration: Designed to easily integrate into HIMA’s safety systems, the F3322 allows seamless communication with other control components for efficient system operation.
8. Versatile Mounting: It supports DIN rail mounting, simplifying the installation and configuration process within control panels or enclosures.
9. Wide Operating Temperature Range: With an operating range from -20°C to +60°C, the F3322 can function effectively in harsh environments, providing reliable performance in extreme temperatures.
10. Cost-Effective: Given its high reliability and diagnostic capabilities, the F3322 module reduces downtime and maintenance costs, making it a cost-effective solution for long-term operations.
