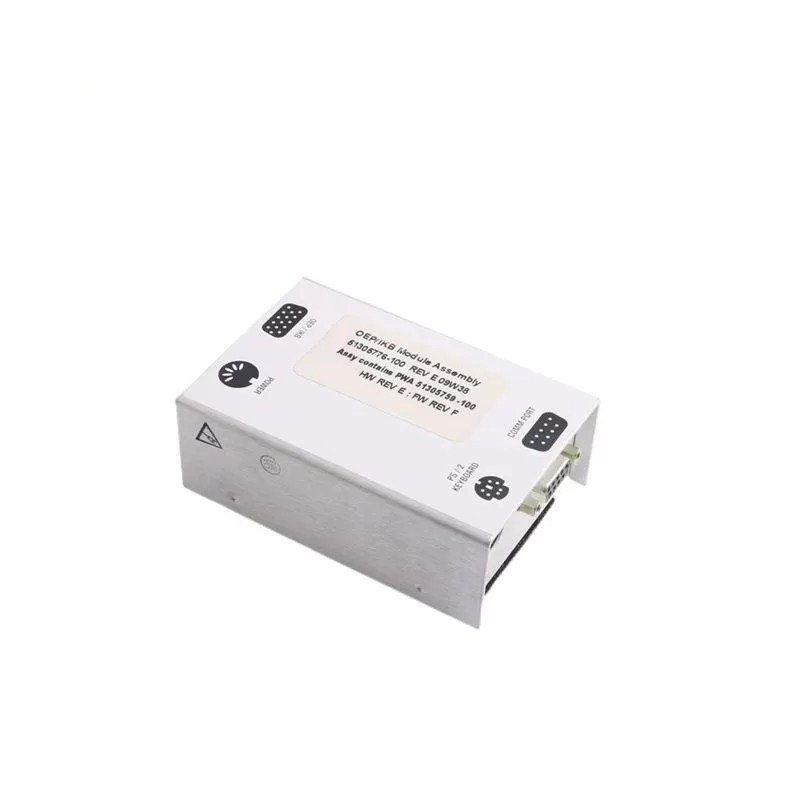

Honeywell 51305776-100 OEP/IKB Interface Module

The Honeywell 51305776-100 is an OEP/IKB interface module used in Honeywell distributed control systems (DCS). It acts as a communication bridge between OEP (Operator Interface) and IKB (Intelligent Keypad Bus) devices, enabling data exchange and system control.

Key Features

• Facilitates communication between OEP and IKB devices
• Enables operator control and monitoring of DCS processes
• Supports various OEP and IKB device configurations
• Provides rugged construction for industrial environments

Technical Specifications

• Communication Protocol: OEP/IKB
• Power Requirements: 24 VDC
• Operating Temperature: -20 to 70°C (-4 to 158°F)
• Storage Temperature: -40 to 85°C (-40 to 185°F)
• Humidity: 5% to 95% RH (non-condensing)
• Dimensions: 102 x 64 x 25.4 mm (4 x 2.5 x 1 inch)
• Weight: 250 g (8.8 oz)

Applications

• Honeywell TCI/WEB DCS
• Honeywell C3000 DCS
• Honeywell RS3000 DCS
• Other DCS systems supporting OEP/IKB communication

Additional Information

Typically, Honeywell includes the 51305776-100 in OEP/IKB operator panel kits. Additionally, it is compatible with various Honeywell OEP and IKB devices.
