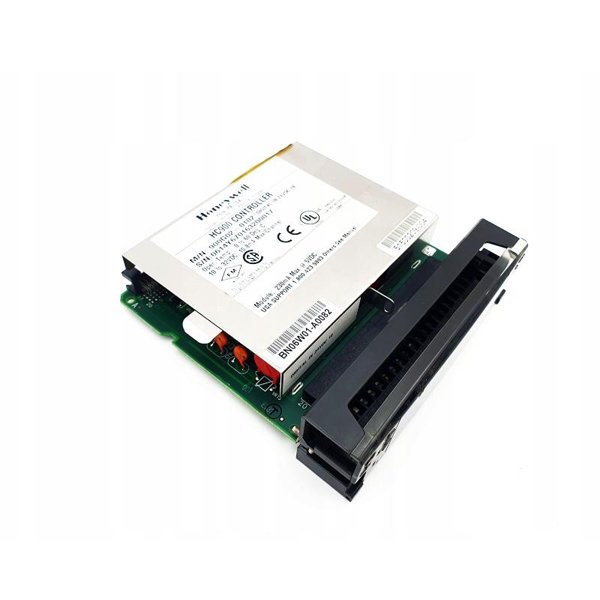

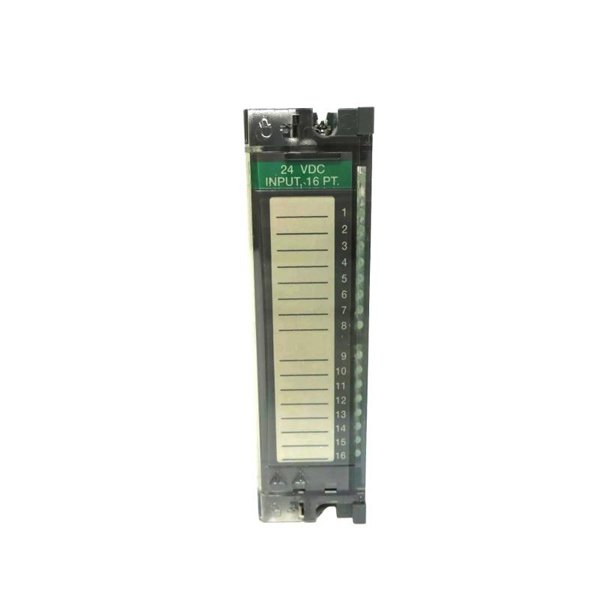

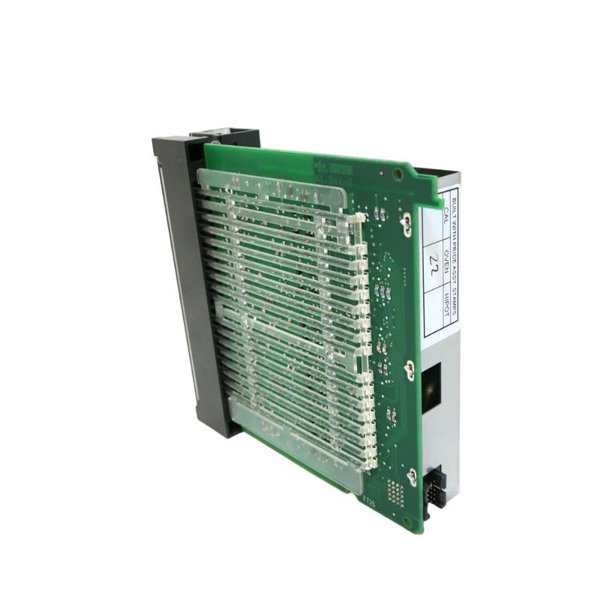

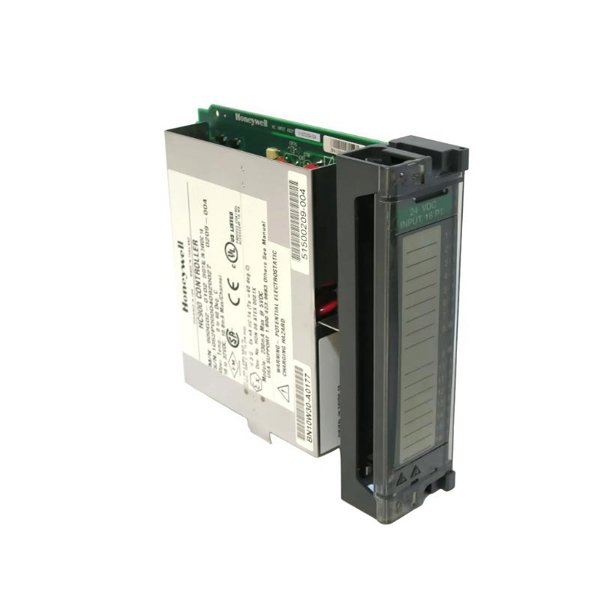

Honeywell 900G02-0102 51500209-004 Digital Input Module

The Honeywell 900G02-0102 (51500209-004) is a high-performance Digital Input Module developed for Honeywell’s Series 900 I/O platform, which supports modern distributed control systems such as the C300 and ControlEdge HC900 systems. This module is tailored for capturing discrete 24V DC input signals, enabling seamless interface between field-level devices (like switches, relays, proximity sensors) and the central control architecture.

Designed for use in mission-critical industries, the 900G02-0102 ensures exceptional input signal accuracy, channel isolation, real-time diagnostics, and rapid processing speed. With a modular construction, the module supports field installation flexibility, reduced maintenance, and dependable performance under demanding industrial conditions.

Technical Specifications

Product Applications

The Honeywell 900G02-0102 is widely adopted across various process and manufacturing sectors for its ability to gather digital feedback from field-level devices. Key applications include:

• Oil & Gas Production: Input signal capture from field junction boxes, safety interlocks, valve status indicators.

• Power Generation: Detecting turbine switch positions, breaker states, and safety system inputs.

• Pharmaceutical Manufacturing: For monitoring state transitions in GMP-critical processes.

• Food & Beverage Automation: Tracking machine states, conveyor logic, and emergency stop activation.

• Water Treatment Facilities: Input collection from float switches, flow switches, and local instrumentation.

• Chemical Processing Plants: For high-accuracy digital feedback from distributed field sensors.

Product Advantages

• High-Density Inputs: 16 discrete inputs offer significant signal handling in a single compact module.

• Electrical Isolation: Optical isolation ensures system protection from transients and noise.

• Integrated Diagnostics: Real-time fault detection (short/open) improves operational reliability.

• Modular System Design: Enables easy system expansion and targeted maintenance.

• Quick Installation: Plug-and-play with Honeywell Series 900 I/O infrastructure.

• Environmental Robustness: Built for long-term use in high-vibration and temperature-variable areas.

• Signal Integrity: Filtered and debounced input ensures clean and reliable logic-level detection.

• System Compatibility: Fully supported in C300, HC900, and Experion PKS control systems.

• Real-Time Monitoring: Front-panel LEDs allow quick verification of system state and diagnostics.

• Compact Footprint: Saves space in control cabinets, making it ideal for dense installations.

Frequently Asked Questions (FAQ)

1. What is the main function of the 900G02-0102 module?

   It captures 16 channels of discrete (digital) 24V DC input signals from field devices.

2. Is this module compatible with ControlEdge and C300 systems?

   Yes, it integrates seamlessly with Honeywell’s ControlEdge HC900 and C300 systems.

3. What kind of input does this module accept?

   It is designed for 24V DC sinking digital inputs.

4. Does the module support diagnostic feedback?

   Yes, it provides real-time open/short circuit diagnostics per channel.

5. Can it be mounted on a DIN rail?

   Yes, it supports both DIN rail and baseplate mounting options.

6. Are the channels optically isolated?

   Yes, each channel is isolated to ensure system protection and signal integrity.

7. Is the module hot-swappable?

   It can be replaced without shutting down the entire system when used correctly.

8. How many modules can be used in a rack?

   Depends on the controller and power budget, typically several modules can be used per chassis.

9. What certifications does the module have?

   CE, UL, CSA, and RoHS certifications for industrial compliance.

10. Does it support redundancy?

    Yes, it can be part of a redundant control system if paired with appropriate Honeywell controllers.
