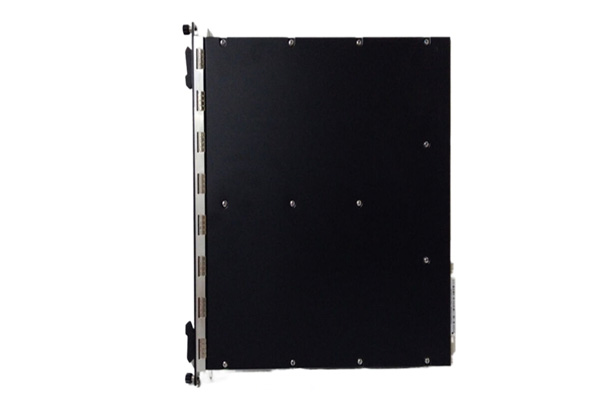

Triconex DI3201 DI3201-A-V001 DC Power Supply Module

DI3201 DI3201-A-V001 converter is widely used in electronic systems, in addition to the typical application of converting digital quantities into analog quantities in microcomputer systems, it is also commonly used in wave shape generation and various digital programmable applications. D/A converters have the following three main functions:

1. Waveform generator

2. Nc DC power supply

3. Digital programmable gain control circuit

The basic guiding idea of DI3201 DI3201-A-V001 converter is that: in order to convert the digital quantity into the analog quantity, each bit of code must be converted into the corresponding analog quantity according to the size of its bit weight, and then these analog quantities are added to obtain the total analog quantity proportional to the digital quantity, thus realizing the digital-analog conversion. Each bit of the input binary code is converted into the corresponding analog quantity according to its weight, and then the analog quantity on behalf of you is added, and the total analog quantity obtained is proportional to the digital quantity, so that the conversion from the digital quantity to the analog quantity is realized.
