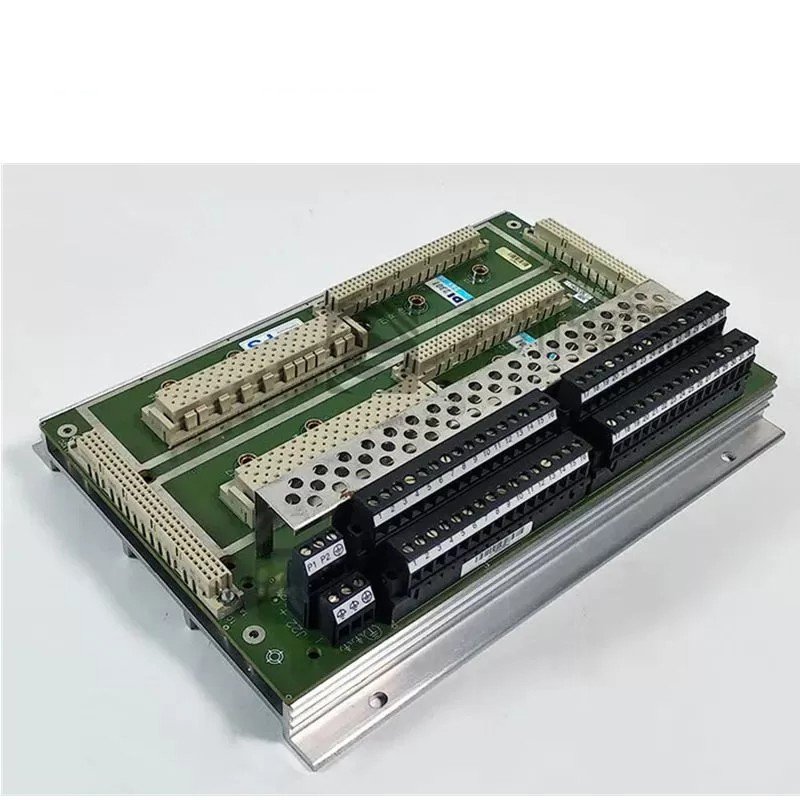

Triconex 7400208C-020 DI2301 Digital Input Baseplate

The Triconex 7400208C-020 DI2301 Digital Input Baseplate is a critical component for industrial safety systems. Let’s explore its key features and specifications:

Function

• Interfaces process sensors with a Triconex safety instrumented system (SIS)
• Provides safe digital input signals for critical control functions

Key Features

• 16 Digital Input Channels: Accommodates a wide range of sensor connections
• Wide Input Voltage Range (5V to 125V DC): Offers flexibility for various sensor types
• Fast Response Time (10ms maximum): Ensures timely response to safety events
• Robust Surge and Isolation Protection: Protects against electrical transients and ground faults

Technical Specifications

• Input Voltage Range: 5V to 125V DC
• Input Impedance: 5 kΩ
• Input Current: Typical: 5mA, Maximum: 20mA
• Response Time: 10ms maximum
• Surge Voltage Protection: 1500V
• Isolation Voltage: 500V
• Operating Temperature Range: -40°C to +70°C

Benefits

• Improves safety system reliability with reliable digital input processing
• Simplifies system design with a modular and versatile I/O solution
• Offers fast and accurate response to safety critical events
