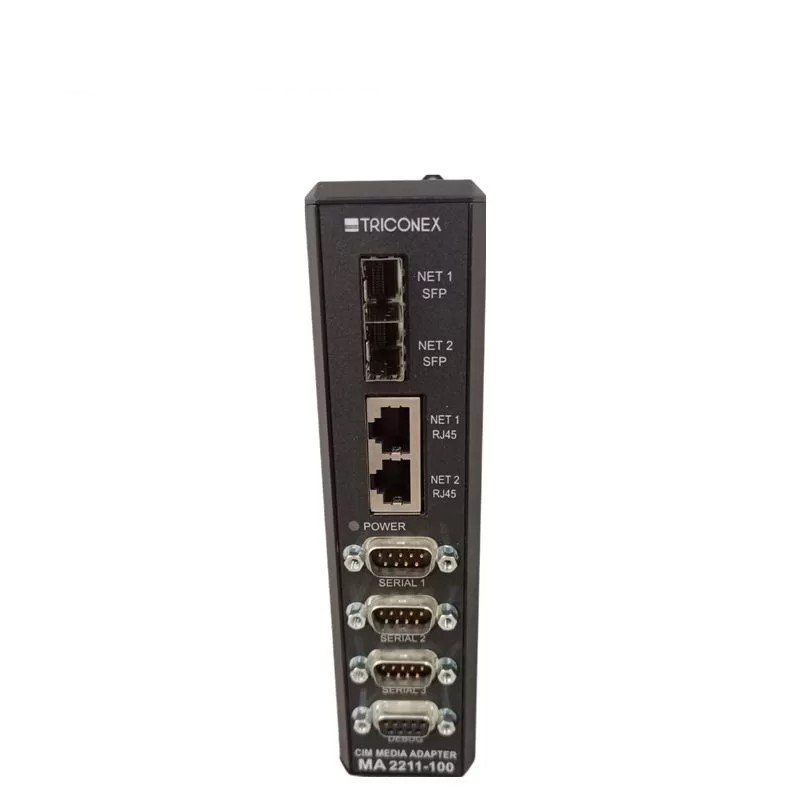

Triconex MA2211-100 Control Module Cards

Triconex MA2211-100 is an advanced I/O module designed for high-availability, high-integrity systems such as Tricon, Tricon CX, Trident, and Tri-GP. It supports various industrial applications, particularly safety instrumented systems (SIS).

Key Features and Specifications

I/O Capabilities:

• Supports up to 8 I/O devices.
• Offers flexible configuration for different I/O types, including analog and digital.

Networking:

• Utilizes one, two, or three Ethernet ports on LAN2.
• Includes an embedded Simplex PROFINET I/O controller for integration with PROFINET networks.

Performance:

• Provides adjustable update rates from 16 to 512 milliseconds.

Compatibility:

• Designed for seamless integration with Triconex safety instrumented systems.

Detailed Explanation

I/O Devices:

• The module accommodates up to eight I/O devices, offering a variety of input and output options to meet different process requirements.

Networking:

• The MA2211-100 supports multiple Ethernet ports, enabling flexible network configurations. Its embedded Simplex PROFINET I/O controller ensures smooth integration with PROFINET networks.

Performance:

• Users can adjust the update rates, tailoring the system’s responsiveness to specific application needs.

Compatibility:

• As part of the Triconex family, the MA2211-100 integrates seamlessly with other components, ensuring high system reliability and integration.

Applications

Triconex MA2211-100 is commonly used in:

• Safety instrumented systems (SIS)
• Process control
• Emergency shutdown systems
• Fire and gas detection systems
