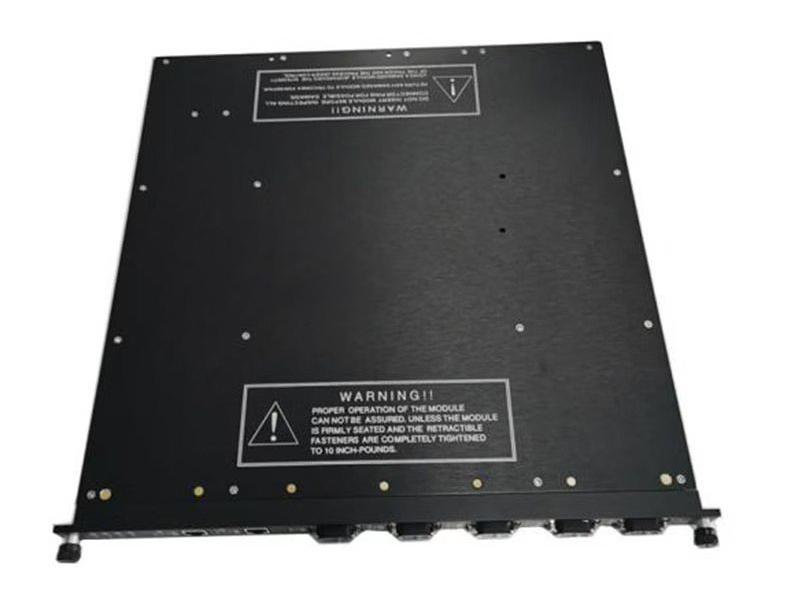

Triconex 3481 S2 Analog Output Module
Manufacturer: Triconex (Schneider Electric)
Product Number: 3481 S2
Category: Analog Output Module / Safety Output Module
System Platform: Tricon TMR Safety Instrumented System
Architecture: Triple Modular Redundant (TMR)
Function: Provides safety-critical analog output control
Application: Emergency shutdown, process safety, critical analog output
Product Description
The Triconex 3481 S2 is designed to provide reliable analog signal output in safety and automation systems. It is specifically engineered for use in critical industrial environments where precise control is essential.
Technical Specifications
- Model Number: 3481 S2
- Type: Analog Output Module
- Number of Channels: 8 output channels (configurable per system)
Output Range
- Current: 4-20 mA
- Voltage: 0-10 V, 0-5 V
Resolution and Accuracy
- Resolution: 12 bits
- Accuracy: ±0.1% of full scale
Isolation and Output Load
- Isolation: 1500V isolation between channels
- Current Output Load: 600 Ohms max
- Voltage Output Load: 10K Ohms min
Power Requirements
- Power Supply: 24V DC nominal, 18-30V DC operating range
- Power Consumption: 3W (max)
Environmental Specifications
- Operating Temperature Range: -20°C to 60°C (-4°F to 140°F)
- Storage Temperature Range: -40°C to 85°C (-40°F to 185°F)
- Humidity: 5% to 95% (non-condensing)
Physical Dimensions
- Dimensions: 178 x 44 x 120 mm (7.01 x 1.73 x 4.72 inches)
- Weight: 0.6 kg (1.32 lbs)
