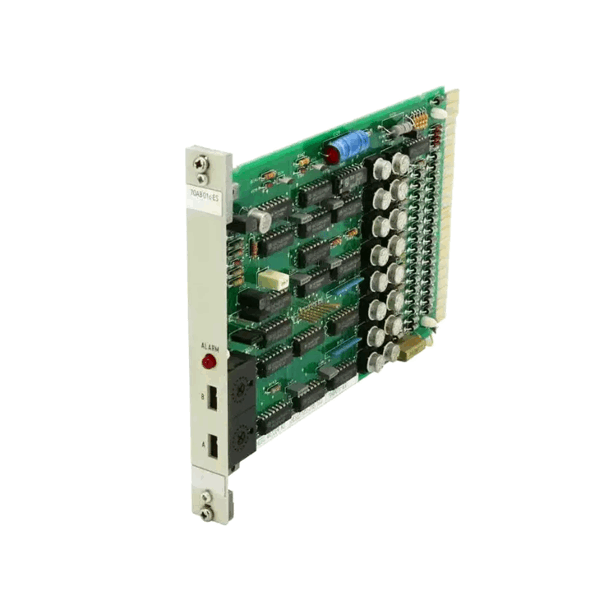

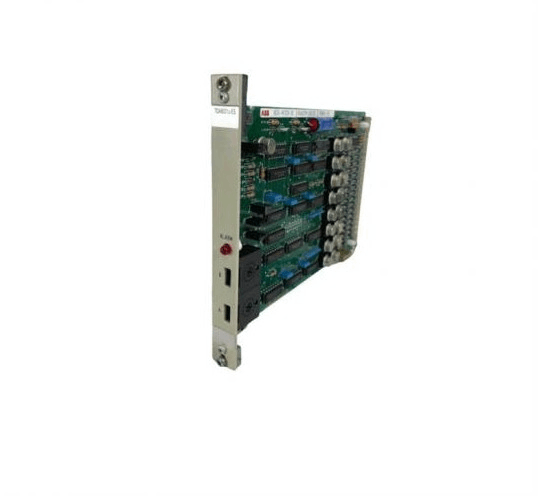

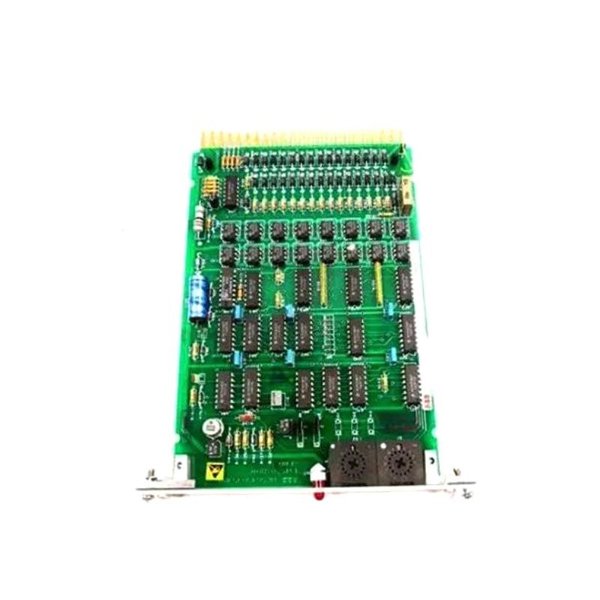

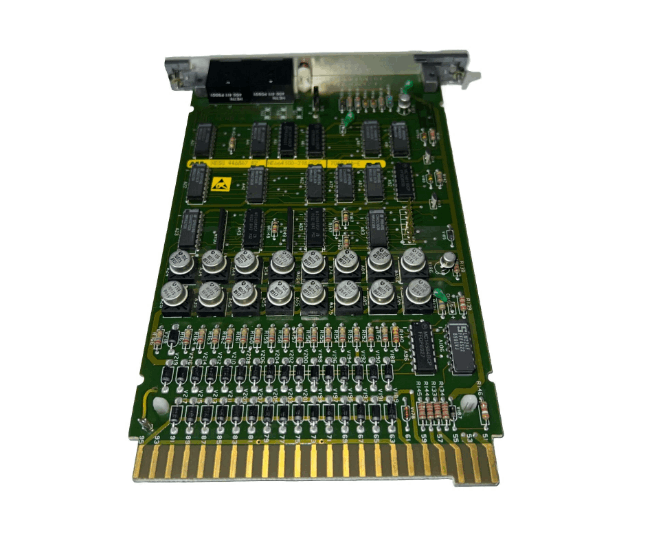

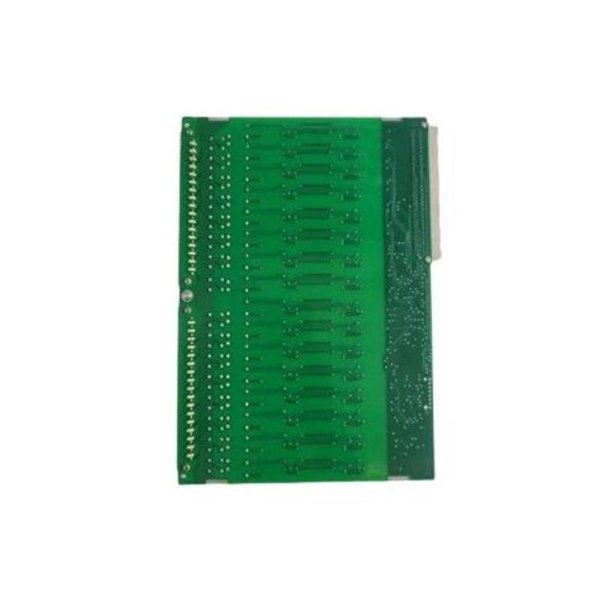

ABB 70AB01C-ES HESG447224R2 Output Module
Item Number:70AA02B-E HESG447388R1
Brand:ABB
Lead Time: In stock
Description:Signal Output Module
Payment: T/T
Product Description
The ABB 70AB01C-ES (HESG447224R2) is an output module for the Procontrol P13 system. This new digital output module series is primarily designed to drive electronic inputs, relays, and indicators to external devices.
At its core, the 70AB01C-ES features a custom local bus UART and digital signal processing engine, providing 16 internally powered outputs for driving input cards, indicators, relays, or as normally open relay outputs. Configuration of each module is accomplished via the front panel configuration port and the P13 Configurator software.
Function & Features
- Fully Software-Configured: All parameter settings for the ABB 70AB01C-ES are made using the P13 Configurator software and the front-mounted configuration port.
- Channel Management: The ABB 70AB01C-ES can individually disable any output channel via software.
- Address Range Support: Unlike older modules, the ABB 70AB01C-ES module can use the full address range of the local bus (both normal and special addresses).
- Configuration Connection: The ABB 70AB01C-ES features a front-mounted configuration port that connects to an engineer's laptop using either a serial (DB9) or USB configuration cable.
Specifications
|
Category |
Details |
|
Model |
70AA02B-E |
|
Part Number |
HESG447388R1 |
|
I/O Interface |
|
|
No. of Channels |
16 |
|
Output Driver Type |
24Vdc Solid state bipolar driver |
|
Output Types |
Electronic module inputs, |
|
Load Types |
relays and lamps |
|
Output Response Time |
6μs (module delay from command) |
|
Local Bus Interface |
|
|
Channel Addressing (on local bus) |
1 address, normal/special range |
|
Input Format (Data) |
16bit Binary Word |
|
Power Supply |
via P13 rack |
|
Min Operating Voltage |
+19.5Vdc |
FAQ
Q: What is the brand?
A: ABB
Q: What is the type?
A: Output Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
