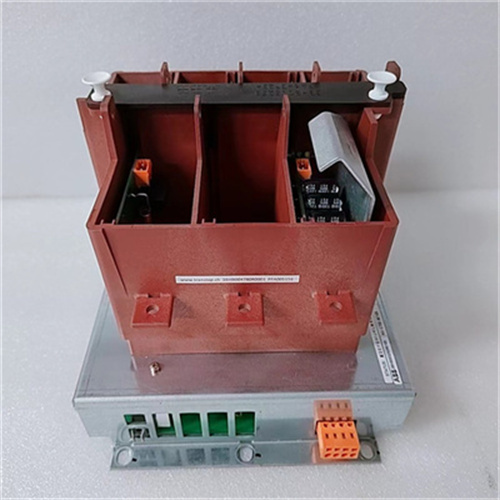

ABB KUC755AE105 3BHB005243R0105 Product Overview

ABB KUC755AE105 3BHB005243R0105 is a high-performance modular control unit produced by ABB,which is widely used in industrial automation,power systems and drive control.The following is a detailed introduction of the product.

Product Overview

Brand and Model:ABB KUC755AE105 3BHB005243R0105

Type:Modular control unit,supports multiple functional expansions

Application areas:industrial automation,power systems,drive control,high-voltage inverters,excitation control,etc.

Technical specifications

Input and output parameters

Input voltage:supports 24V DC±20%or 110V-380V industrial standard voltage

Input current:maximum 5mA(specific specifications)to 30A(depending on the application scenario)

Output frequency:up to 100Hz(when used as an excitation controller)

Performance parameters

Processing speed:550μs(when used as an excitation controller)

Program capacity:300

Data capacity:200

I/O quantity:16 inputs/outputs(when used as an excitation controller)

Voltage and current range

High voltage application:voltage up to 36kV,current up to 2kA

Functional characteristics

High reliability design

Redundant design,hot-swap support,reduced downtime

Equipped with multiple safety protection functions to prevent equipment damage caused by system failures

Flexible communication capabilities

Equipped with standard communication interfaces(such as RS-485,Ethernet),supporting remote monitoring and control

Supporting a two-layer network structure,automatically switching communication networks in real time,ensuring real-time and reliable data transmission

Fault diagnosis and recording

Built-in fault diagnosis function,which can detect and record system fault information

Support troubleshooting and maintenance to improve system availability

High adaptability

Suitable for different gate types and application environments,with high configurability

Support multiple industrial protocols for easy integration with other devices

Application scenarios

Industrial automation

Used for production line control,equipment monitoring and data acquisition

Power system

Applied to high-voltage circuit breakers,excitation controllers and other equipment to ensure stable operation of the power system

Drive control

Used for industrial drive power supplies or high-voltage inverters to achieve precise motor control
