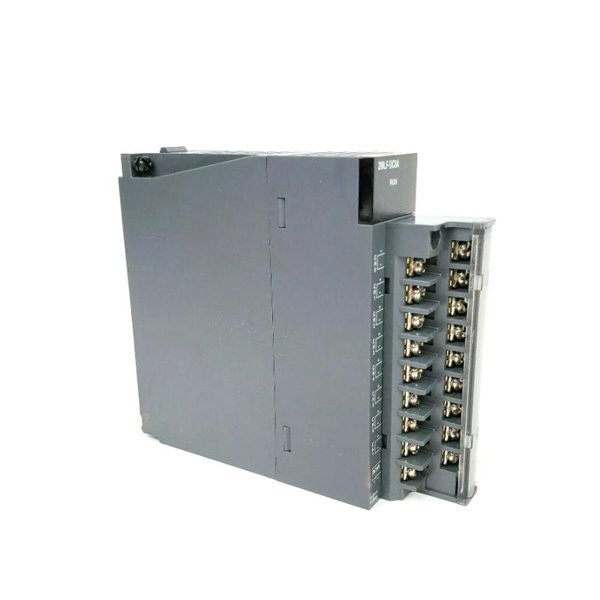

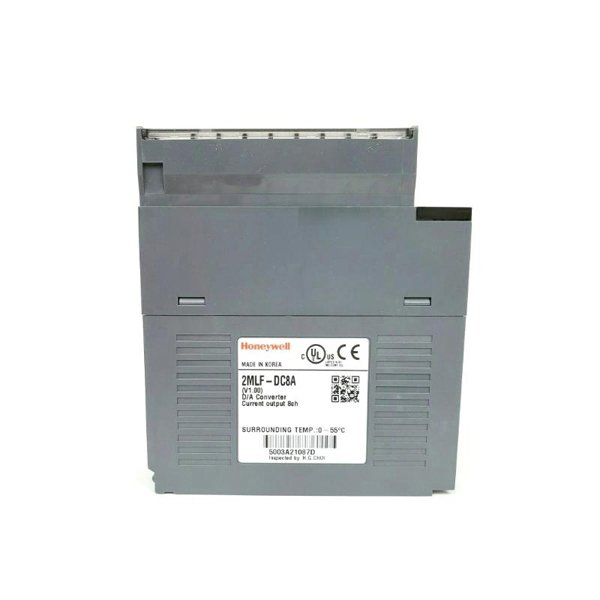

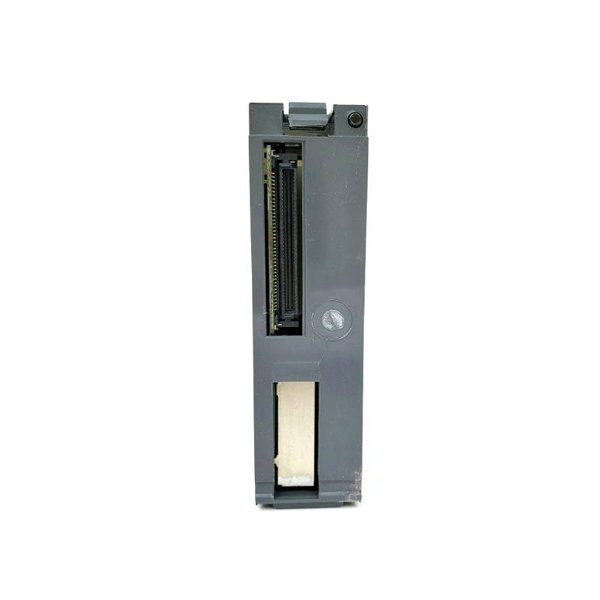

Honeywell 2MLF-DC8A 8 Channel Current Output Module

The Honeywell 2MLF-DC8A is an 8-Channel Current Output Module designed for the MasterLogic-200 Series Programmable Logic Controllers (PLCs). This module facilitates precise current output control, making it ideal for various industrial automation applications,configurable per channel through programming or parameter settings.

Product Specifications

Below are the key specifications of the Honeywell 2MLF-DC8A module:

Product Applications

The 2MLF-DC8A module is utilized across various industries for precise current signal control, including:

• Process Automation: Managing actuators, valves, and other control elements requiring current input.
• Manufacturing: Controlling machinery and equipment that operate based on current signals.
• Energy Management: Regulating devices in power generation and distribution systems.
• Building Automation: Integrating with HVAC systems and lighting controls that use current-based signals.

Product Advantages

• High Channel Density: Offers eight channels in a single module, optimizing space and reducing hardware costs.
• Configurable Output Ranges: Allows selection between DC 420mA and DC 020mA per channel, providing flexibility for diverse applications.
• Integration with MasterLogic-200 Series: Ensures seamless compatibility and communication within Honeywell’s PLC systems.
• Robust Design: Built to withstand industrial environments, ensuring reliable performance.
• Comprehensive Certifications: Meets international standards (CE, TUV, UL508, CSA), assuring quality and safety.

FAQ

1. What is the primary function of the 2MLF-DC8A module?

   • It provides eight channels of current output, facilitating precise control of devices requiring current input signals.

2. How can I configure the output range for each channel?

   • The output range can be selected through the applicable program or parameters for each channel.

3. What is the maximum load resistance supported by the module?

   • The module supports a load resistance of 550Ω or less.

4. Is the 2MLF-DC8A compatible with other PLC systems?

   • It is specifically designed for Honeywell’s MasterLogic-200 Series PLCs; compatibility with other systems is not guaranteed.

5. What are the dimensions and weight of the module?

   • The module measures 172 mm x 120 mm x 114 mm and weighs 0.349 kg.

6. Does the module have any certifications?

   • Yes, it has certifications including CE, TUV, UL508, and CSA.

7. What is the warranty period for the 2MLF-DC8A?

   • The module comes with a 12-month warranty.

8. Can the module’s output range be adjusted during operation?

   • Output ranges can be configured through programming; however, changes during operation should be performed cautiously to avoid system disruptions.

9. Is the module suitable for use in hazardous environments?

   • While it has several certifications, suitability for hazardous environments depends on specific site conditions and compliance requirements.

10. Can the output range be configured for each channel separately?

    • Yes, each output channel of the 2MLF-DC8A can be individually configured for either operation. This feature makes it ideal for applications requiring varied control signals within the same system. Configuration is typically performed through the MasterLogic PLC programming software or via system parameters set by the control engineer.
