ABB CI506-PNIO 1SAP221500R0001 S500 Interface Module

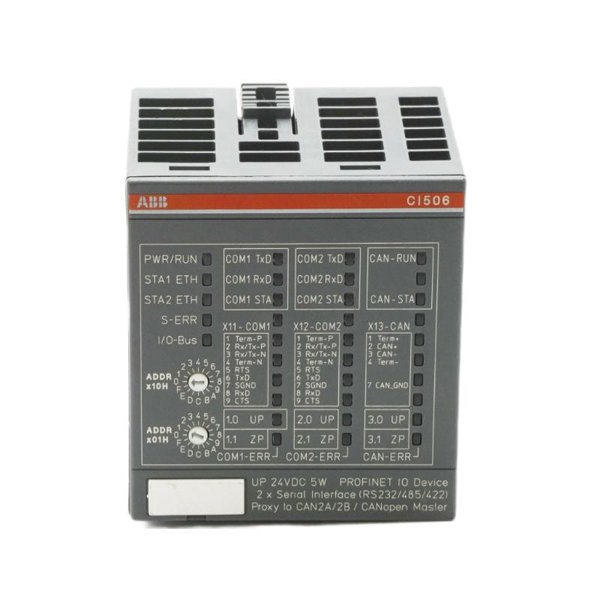

The ABB CI506-PNIO S500 Interface Module (1SAP221500R0001) is a versatile and high-performance interface module designed to integrate ABB’s S500 I/O system with PROFINET networks. This compact yet robust module allows seamless communication between field devices and industrial control systems over Ethernet-based networks, offering flexibility and real-time performance.

With its small form factor of 62 x 76 x 67.5 mm and a weight of just 0.144 kg, the CI506-PNIO is a perfect fit for industrial applications where space and reliability are essential. The module supports high-speed data exchange, enabling reliable control and monitoring of systems in real-time, thus optimizing operational efficiency.

The CI506-PNIO is engineered to meet the rigorous demands of industrial environments, making it an ideal solution for applications in industries like manufacturing, energy, water treatment, and automation systems. It supports the seamless integration of ABB’s S500 I/O modules into PROFINET-based networks, facilitating smooth data transfer between devices and ensuring operational continuity.

Product Specifications

Product Applications

The ABB CI506-PNIO S500 Interface Module is widely used in a variety of industrial applications where high-speed communication and integration of field devices with central control systems are critical. Its applications include:

• Manufacturing Automation: The module provides seamless integration between industrial equipment and control systems, facilitating real-time monitoring and control of manufacturing processes.

• Energy and Power Management: Used in power plants and energy management systems, it enables the integration of energy meters and field devices for real-time energy usage tracking and optimization.

• Process Control Systems: In industries such as chemicals, pharmaceuticals, and oil & gas, the CI506-PNIO ensures accurate communication between field instruments and process control systems.

• Water Treatment Systems: In water and wastewater treatment plants, the module ensures reliable communication between sensors, actuators, and control systems for efficient operations.

• Building Automation: It facilitates the integration of sensors, actuators, and controllers in HVAC, lighting, and security systems for smart building management.

• Transportation Systems: The CI506-PNIO is used in automated transportation systems, such as rail and airport systems, to connect control systems with sensors and field devices.

• Renewable Energy Systems: It supports the integration of renewable energy systems (e.g., wind or solar power) with monitoring and control equipment to optimize performance and efficiency.

Product Advantages

• Reliable Communication: The CI506-PNIO provides robust, high-speed communication using the PROFINET IO protocol, ensuring real-time data transmission with minimal delays.

• Compact and Lightweight: With dimensions of 62 x 76 x 67.5 mm and a weight of 0.144 kg, the module is ideal for installation in space-constrained environments.

• Fast Data Transmission: The module supports communication speeds of up to 100 Mbps, ensuring fast and efficient data exchange.

• Wide Temperature Range: The CI506-PNIO operates in a temperature range of -20 °C to +60 °C, making it suitable for a variety of industrial environments.

• Energy Efficient: Operating on a 24 V DC power supply, the module ensures efficient power consumption, making it ideal for continuous operation in industrial settings.

• Ease of Installation: The CI506-PNIO is designed for easy installation on DIN rails, simplifying the setup and integration into existing systems.

• High I/O Capacity: The module supports 32 I/O points per unit, allowing for a wide range of device connections.

• Durable Construction: Made from high-quality insulating plastic, the CI506-PNIO module is built to withstand harsh industrial conditions.

• Compliance with International Standards: The module is certified CE, UL, and RoHS, ensuring that it meets the highest safety, environmental, and quality standards.

• Seamless ABB Integration: Fully compatible with ABB’s S500 I/O modules, ensuring smooth integration into ABB’s automation systems.

Frequently Asked Questions (FAQ)

1. What is the purpose of the CI506-PNIO module?

   The CI506-PNIO is designed to interface ABB’s S500 I/O system with PROFINET-based networks, enabling efficient communication between field devices and control systems.

2. How many I/O points does the CI506-PNIO module support?

   The CI506-PNIO supports up to 32 I/O points per module.

3. What are the physical dimensions and weight of the CI506-PNIO?

   The module has dimensions of 62 x 76 x 67.5 mm and weighs 0.144 kg.

4. What communication protocol is supported by the CI506-PNIO?

   The CI506-PNIO supports the PROFINET IO communication protocol.

5. What is the power supply requirement for the CI506-PNIO?

   The module requires a 24 V DC ± 20% power supply.

6. What is the temperature range for the CI506-PNIO module?

   The operating temperature range is from -20 °C to +60 °C.

7. What is the maximum data transmission speed of the CI506-PNIO?

   The module supports data transmission speeds of up to 100 Mbps.

8. What is the mounting type for the CI506-PNIO module?

   The CI506-PNIO can be mounted on standard DIN rails.

9. Is the CI506-PNIO compliant with international standards?

   Yes, the module is CE, UL, and RoHS compliant.

10. Can the CI506-PNIO be used in hazardous environments?

    While the CI506-PNIO is designed for industrial environments, its use in hazardous environments should be evaluated based on specific conditions and compliance with local regulations.
