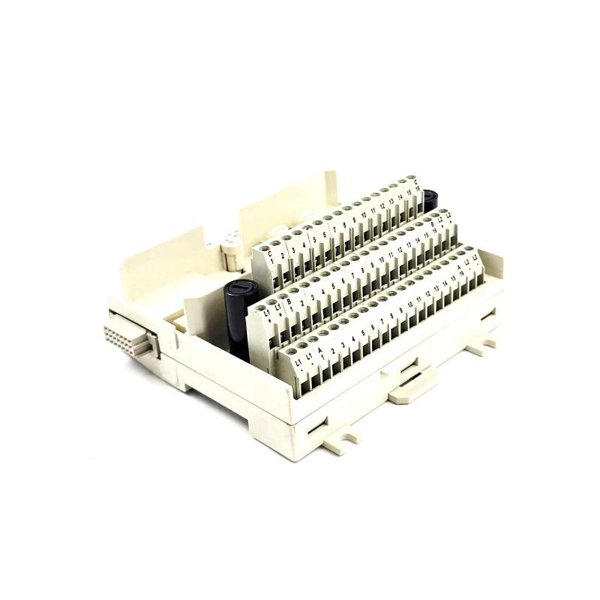

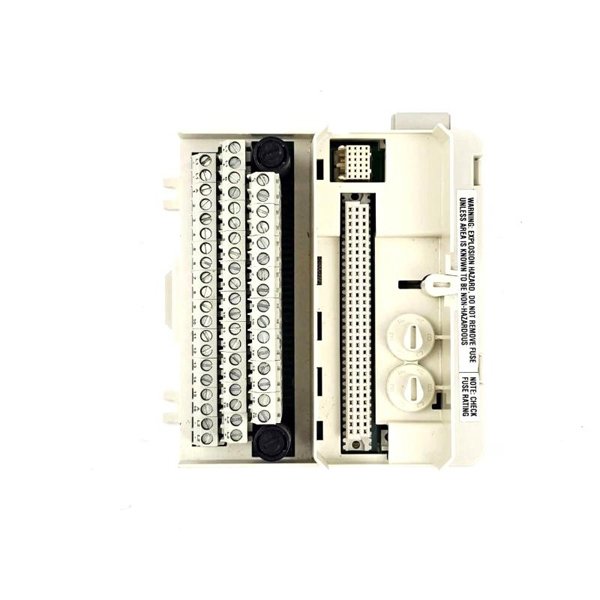

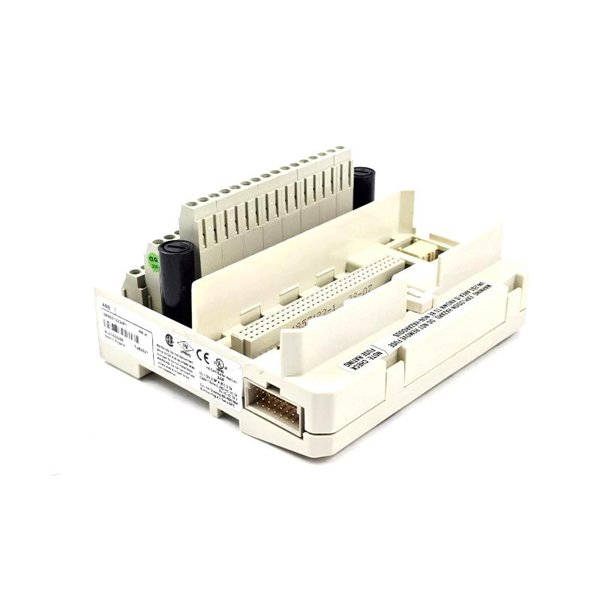

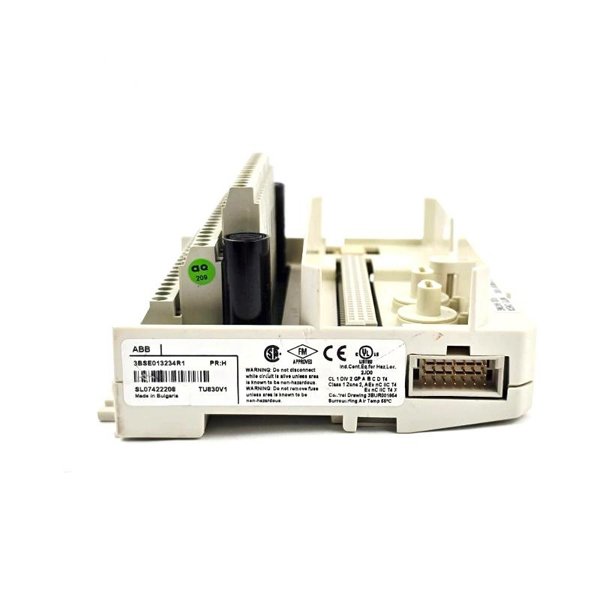

ABB TU830V1 3BSE013234R2 S800 I/O System Extended Module Termination Unit

The ABB TU830V1 Extended Module Termination Unit (MTU) is a passive connection interface for the ABB S800 I/O system. It accommodates up to 16 I/O channels, with field wiring, fuses, and process power connections. The MTU provides mechanical keying for error prevention and supports DIN rail mounting with grounding.

Technical Specifications

Applications

• Field wiring interface for ABB S800 I/O modules

• Industrial automation systems

• Redundant and single I/O systems

• Process industries such as oil & gas, power generation, and marine applications

Advantages

• Supports up to 16 channels with 3-wire connections

• Simplifies installation with integrated field power distribution

• Mechanical keying prevents incorrect module insertion

• DIN rail mounting with latching device for secure grounding

• Certified for hazardous and marine environments

• Compact and lightweight design

FAQ

Q1: How many I/O channels does the TU830V1 support?

A1: It supports up to 16 I/O channels.

Q2: Is the TU830V1 an active or passive unit?

A2: It is a passive unit used for field wiring connections.

Q3: What is the maximum rated voltage of the unit?

A3: The maximum rated voltage is 50 V.

Q4: Can it be used in hazardous locations?

A4: Yes, it is certified for ATEX Zone 2 and UL Class 1 Div 2.

Q5: What are the mounting options?

A5: It can be mounted on a DIN rail in either direction.

Q6: Which ABB I/O modules are compatible with TU830V1?

A6: Compatible modules include AI810, AO810, DI810, DO810, among others.

Q7: Does it include fuses?

A7: Yes, each isolated group includes a 6.3 A fuse.

Q8: What are its dimensions and weight?

A8: Dimensions are 64 × 120.5 × 110 mm and weight is 0.28 kg.

Q9: What is the maximum current per channel?

A9: The maximum current per I/O channel is 2 A.

Q10: Does it comply with RoHS and WEEE?

A10: Yes, it is compliant with EN 50581 and WEEE Directive 2012/19/EU.
