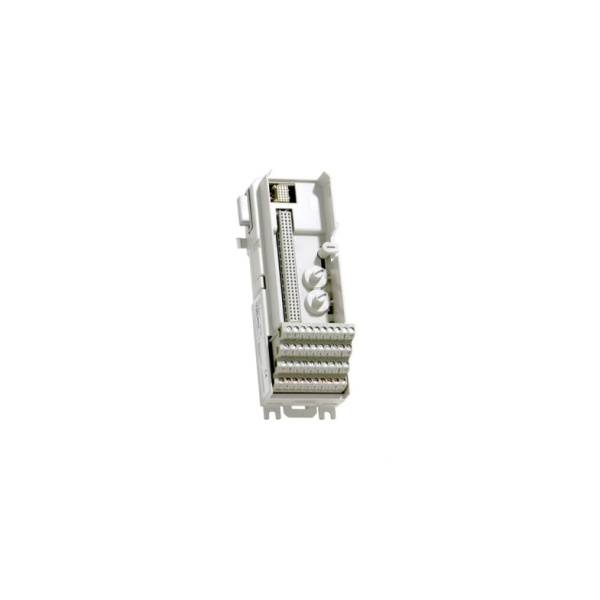

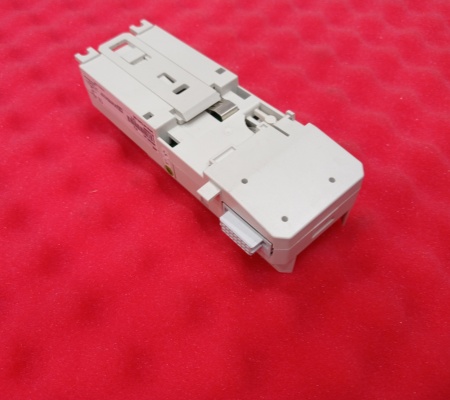

The TU818V1 is a 32 channel 50 V compact module termination unit (MTU) for the S800 I/O. The MTU is a passive unit used for connection of the field wiring to the I/O modules. It also contains a part of the ModuleBus.

The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU.

Two mechanical keys are used to configure the MTU for different types of I/O modules. This is only a mechanical configuration and it does not affect the functionality of the MTU or the I/O module. Each key has six positions, which gives a total number of 36 different configurations.

Compact design reduces control cabinet footprint for more efficient use of space. Reliable Operation Designed for industrial-grade performance, ensuring long-term reliability. Easy Maintenance Simplified wiring and modular design make it easy to install, troubleshoot and replace.

Frequently asked questions about the product are as follows:

-What is the main purpose of the TU818V1 terminal unit?

The TU818V1 is used to safely connect field devices to ABB S800 I/O modules, organizing and terminating field wiring in a compact form.

-Is the TU818V1 compatible with all ABB S800 I/O modules?

The TU818V1 is fully compatible with ABB's S800 I/O modules, supporting both digital and analog signals depending on the configuration.

-How do I install the TU818V1?

Mount the device on a DIN rail. Terminate the field wiring at the screw terminals. Connect the device to the corresponding I/O module and verify proper alignment.
