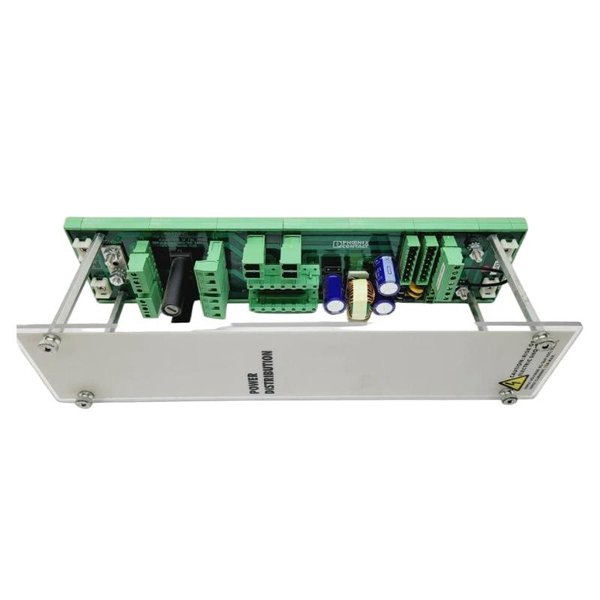

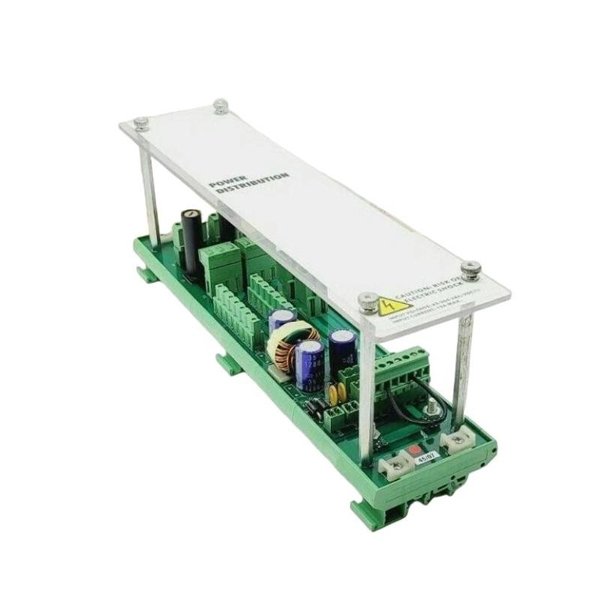

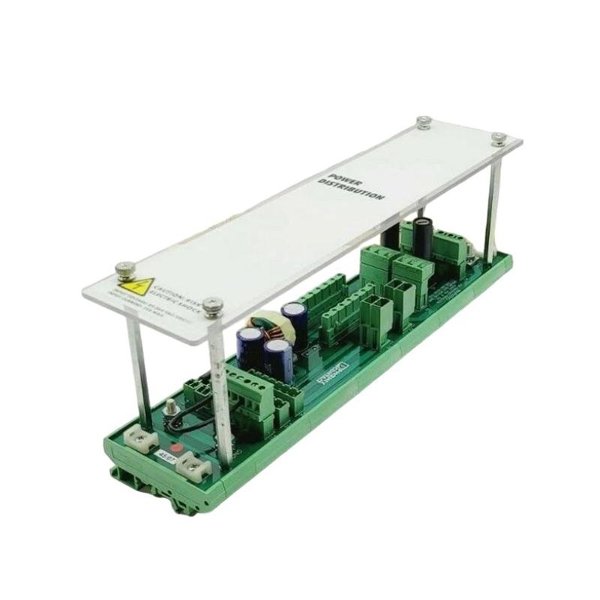

Ovation 1X00102H01 Distribution Board

The Ovation 1X00102H01 Distribution Board is a reliable and robust power distribution solution designed to provide safe and organized electrical distribution for Ovation control systems and associated modules. It ensures consistent power supply to multiple modules while protecting the system from overloads and electrical faults.

Key Features

• Provides organized electrical distribution for Ovation systems

• Supports multiple modules and circuits

• Built-in protection against overloads and short circuits

• Rugged and durable design for industrial environments

• Easy installation and maintenance

• Compatible with Ovation analog, digital, and specialty I/O modules

• Ensures safe and stable system operation

Technical Specifications

Industry Applications

• Power Generation – turbine and generator control systems

• Oil & Gas – distributed process control and monitoring

• Petrochemical & Chemical – electrical distribution for control systems

• Manufacturing – safe and reliable power for process modules

• Water & Wastewater – control system power management

Advantages

• Provides organized and safe power distribution

• Protects connected modules with built-in overload and short-circuit protection

• Rugged construction suitable for harsh industrial environments

• Supports multiple module types for flexible system design

• Ensures stable and reliable operation of Ovation control systems

• Easy to install and maintain

Frequently Asked Questions (FAQ)

Q1: What is the main function of this distribution board?

It provides safe and organized electrical power distribution to Ovation modules.

Q2: What is the input voltage?

100–240 VAC.

Q3: What is the output voltage?

24 VDC nominal for modules.

Q4: Does it have overload protection?

Yes, built-in overload and short-circuit protection is provided.

Q5: What is the operating temperature range?

0 °C to +60 °C.

Q6: How is it mounted?

Rack or panel mountable.

Q7: Is it suitable for industrial environments?

Yes, it is rugged and durable.

Q8: Which modules are compatible?

Analog, digital, and specialty Ovation I/O modules.

Q9: What are the dimensions and weight?

300 mm × 200 mm × 120 mm, 0.43 kg.

Q10: Which industries commonly use this distribution board?

Power generation, oil & gas, petrochemical, manufacturing, and water & wastewater.
